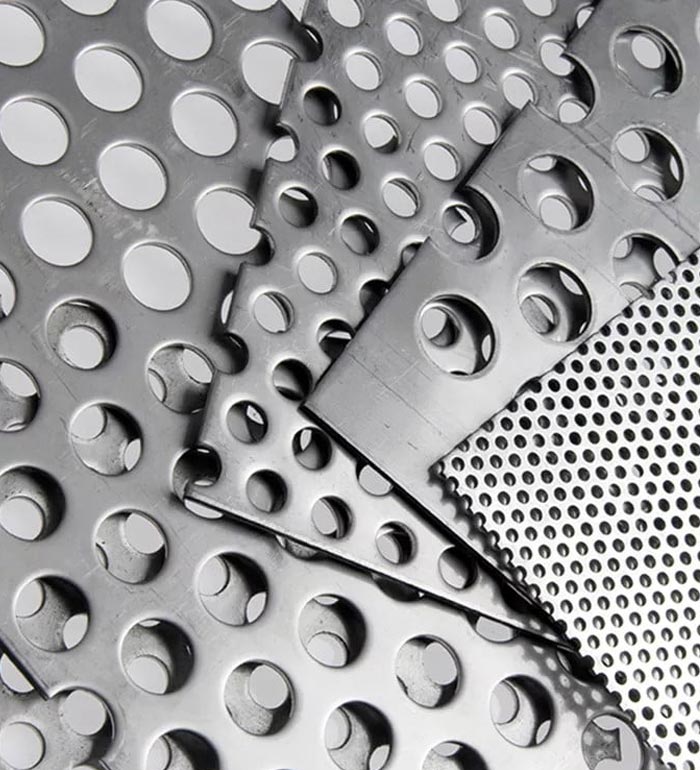

Stainless Steel Perforated Sheet

Perforated Stainless Steel Sheet is a sheet product that has been punched with a wide variety of hole sizes and patterns providing an aesthetic appeal. We import our sheets fully perforated at the mill which ensures unmatched flatness and uniformity which can't be replicated by local perforators.

Stainless Steel perforated sheet offers savings in weight, passage of light, liquid, sound and air, while providing a decorative or ornamental effect. Perforated Stainless Steel sheets are corrosive resistant and commonly used in interior and exterior design, HVAC, Noise Control, Sunscreens, Facades for buildings, Ceilings, Furnishings, Screening and Fencing

Table of commonly stocked sizes For 316

The table below is the list of sizes of perforated sheets we usually stock in our warehouse. All the sheets have round holes, a 60° staggered pattern, and a triangular pitch.

Other non standard sizes/patterns are available on request.

Width Length Thickness Hole Diameter Pitch Center to Center
3.28' (1,000mm) 6.56' (2,000mm) 0.7mm 1mm 2mm
4' (1,219mm) 8' (2,438mm) 0.7mm 1.5mm 2.5mm
4' (1,219mm) 8' (2,438mm) 0.7mm 2mm 4mm
4' (1,219mm) 8' (2,438mm) 0.7mm 3mm 5mm
4' (1,219mm) 8' (2,438mm) 1.0mm 3mm 5mm
4' (1,219mm) 8' (2,438mm) 1.0mm 4mm 7mm
4' (1,219mm) 8' (2,438mm) 1.0mm 6mm 10mm
4' (1,219mm) 8' (2,438mm) 1.2mm 3mm 5mm
4' (1,219mm) 8' (2,438mm) 1.2mm 5mm 8mm
4' (1,219mm) 8' (2,438mm) 1.2mm 6mm 10mm
4' (1,219mm) 8' (2,438mm) 1.2mm 8mm 12mm
4' (1,219mm) 8' (2,438mm) 1.2mm 10mm 15mm
4' (1,219mm) 8' (2,438mm) 1.2mm 12mm 18mm
4' (1,219mm) 8' (2,438mm) 1.5mm 3mm 5mm
4' (1,219mm) 8' (2,438mm) 1.5mm 6mm 10mm
4' (1,219mm) 8' (2,438mm) 1.5mm 8mm 12mm
4' (1,219mm) 8' (2,438mm) 1.5mm 10mm 15mm
4' (1,219mm) 8' (2,438mm) 1.5mm 12mm 18mm
4' (1,219mm) 8' (2,438mm) 1.5mm 15mm 21mm
4' (1,219mm) 8' (2,438mm) 1.5mm 20mm 30mm
4' (1,219mm) 8' (2,438mm) 2.0mm 3mm 5mm
4' (1,219mm) 8' (2,438mm) 2.0mm 6mm 10mm
4' (1,219mm) 8' (2,438mm) 2.0mm 8mm 12mm
4' (1,219mm) 8' (2,438mm) 2.0mm 10mm 15mm
4' (1,219mm) 8' (2,438mm) 2.0mm 12mm 18mm
4' (1,219mm) 8' (2,438mm) 3.0mm 3mm 5mm
4' (1,219mm) 8' (2,438mm) 3.0mm 6mm 10mm
4' (1,219mm) 8' (2,438mm) 3.0mm 8mm 12mm
4' (1,219mm) 8' (2,438mm) 3.0mm 10mm 15mm
4' (1,219mm) 8' (2,438mm) 3.0mm 12mm 18mm

Specification

Item SS Perforated sheet(Hot rolled, cold rolled)
Material grade SS 304 Perforated Sheet, SS 316 Perforated Sheet
Standard JIS, AISI, ASTM, GB, DIN, EN
Perforated metal sheet Material: stainless steel. Hole size: 3/32". Sheet thickness: 0.075" (gauge: 14). Sheet size: 10" × 10". Hole distance: 5/32". Hole type: staggered.
Thickness 0.3-15mm
Width 1000mm~2000mm or customized
Length 1000mm~6000mm or customized
Standard sheet sizes 1000mm*2000mm, 1250mm*2500mm, 1219mm*2438mm, 1500mm*3000mm We can produce other standard as customized
origin Indian Origin, European Origin, Japanese Origin, US Origin, Korea Origin, Thailand Origin, Taiwan Origin
Surface 2B, BA, HL, Brush, NO.1, NO.4, 8K, SB, etc
Certificate We accept the third inspections--SGS-BV etc.
Application Bridge, Shipbuilding, roofing, Car, etc.
Manufacturer Jindal Stainless, DKC Korea, POSCO, Thyssenkrup, Baosteel, Aperam,TISCO, VDM, Nippon Metal, Arcelor Mittal,Outokumpu
Export to Singapore , Italy, Saudi Arabia, Indonesia, Qatar , Malaysia, Iran, UAE, Iraq, South Africa, Oman, Kenya, Nigeria, UK



What is Perforated Sheet used for?

The Stainless steel mirco perforated sheet is used for a wide range of applications in various industries including agriculture, aerospace technology, lighting, security applications, air conditioning, sugar processing, and various other industries.

Perforated Stainless Steel Sheet 4x8 Standard Size Chart
P (mm) W (mm) Thick × panel size
3.5 2 1 mm × 1 m × 2 m
4 2 2 mm × 1 m × 2 m
6 4 1 mm × 1 m × 2 m
5 3 1 mm × 1 m × 2 m
8 6 1 mm × 1 m × 2 m

Ss 316 Perforated Sheet Thickness

Perforated Stainless Steel 316 Perforated round hole and perforated square hole Round Hole (R) & Square Hole (C)
Pattern Hole Size Pitch % Open Area Sheet Size Thickness
S029J R1.50mm T2.50mm 33 2m x 1m 0.80mm
S042J R3.00mm T5.00mm 33 2m x 1m 0.70mm
S050J R3.00mm T4.50mm 40 2m x 1m 1.50mm
S072J R5.00mm T8.00mm 35 2m x 1m 1.50mm
S088J R6.00mm T9.00mm 40 2m x 1m 1.20mm
S092J R6.00mm T9.00mm 40 2m x 1m 2.00mm

Ss 304 Perforated Sheet Thickness

Perforated Stainless Steel Sheet 304 (2m x 1m)
Perforated round hole and perforated square hole 		Round Hole (R)
Square Hole (C)
Pattern Hole Size Pitch % Open Area Sheet Size Thickness
S011 R0.75mm T1.50mm 23 2m x 1m 0.60mm
S022 R1.00mm T2.00mm 23 2m x 1m 0.80mm
S025 R1.50mm T2.60mm 30 2m x 1m 1.00mm
S028 R1.50mm T2.50mm 33 2m x 1m 0.60mm
S038 R2.00mm T3.00mm 40 2m x 1m 1.00mm
S040 R2.00mm T3.50mm 30 2m x 1m 1.00mm
S048 R2.50mm T4.00mm 36 2m x 1m 0.60mm
S056 R3.00mm T5.00mm 33 2m x 1m 1.00mm
S057 R3.00mm T4.50mm 40 2m x 1m 1.20mm
S064 R3.00mm T5.00mm 33 2m x 1m 1.50mm
S065 R3.00mm T5.00mm 33 2m x 1m 2.00mm
S066R R3.00mm T6.00mm 23 2m x 1m 3.00mm
S067 R4.00mm T6.00mm 40 2m x 1m 1.00mm
S068 R4.00mm T6.00mm 40 2m x 1m 1.50mm
S071 R5.00mm T7.00mm 46 2m x 1m 1.00mm
S072 R5.00mm T8.00mm 35 2m x 1m 1.50mm
S073 R5.00mm T8.00mm 35 2m x 1m 2.00mm
S074 R5.00mm T8.00mm 35 2m x 1m 3.00mm
S076 C5.00mm U8.00mm 39 2m x 1m 1.00mm
S082 R6.00mm T9.00mm 40 2m x 1m 0.60mm
S086 R6.00mm T9.00mm 40 2m x 1m 1.00mm
S091 R6.00mm T9.00mm 40 2m x 1m 1.50mm
S093 R6.00mm T9.00mm 40 2m x 1m 3.00mm
S094 C8.00mm U12.00mm 44 2m x 1m 1.00mm
S095 R8.00mm T12.00mm 40 2m x 1m 1.50mm
S104 C10.00mm U12.00mm 70 2m x 1m 1.00mm
S105 C10.00mm U12.00mm 70 2m x 1m 1.50mm
S106 R10.00mm T15.00mm 40 2m x 1m 1.00mm
S107 R10.00mm T15.00mm 40 2m x 1m 1.50mm
S108 R10.00mm T15.00mm 40 2m x 1m 2.00mm
S109 R10.00mm T15.00mm 40 2m x 1m 3.00mm
S155 R15.00mm T21.00mm 46 2m x 1m 1.50mm
S202 R20.00mm T28.00mm 46 2m x 1m 2.00mm

SS Perforated Sheet refers to a stainless steel sheet that has been punched or perforated with a series of holes, slots, or other patterns. These perforations can vary in size, shape, and arrangement, depending on the intended application and aesthetic requirements. Perforated sheets made from stainless steel combine the material’s inherent properties—such as high corrosion resistance, strength, and durability—with the functional benefits of the perforations.

Key Features of SS Perforated Sheets:

  • Material: Stainless steel (commonly grades 304, 316) is chosen for its corrosion resistance, strength, and ability to withstand high temperatures.
  • Patterns: Common hole patterns include round, square, slotted, diamond, and custom designs. The holes can be arranged in straight lines or more complex staggered patterns.

Applications:

  • Architectural: Used for facades, interior walls, ceilings, and decorative panels due to its aesthetic appeal.
  • Industrial: In filtration, soundproofing, ventilation systems, sieves, and screens.
  • Automotive: For grilles, panels, and other components where weight reduction and air flow are important.
  • Safety and Security: Often used in enclosures or as a protective cover for machinery.
  • Consumer Goods: Can be used in items like mesh baskets, shelving, and appliances.

Advantages:

  • Durability: Resistant to rust, corrosion, and staining, making it suitable for both indoor and outdoor use.
  • Aesthetic Flexibility: Can be customized for different appearances, including industrial or decorative finishes.
  • Ventilation and Light: Perforations allow air, light, and sound to pass through while still providing a physical barrier.
  • Sizes and Thickness: SS perforated sheets come in various thicknesses, from light gauges used in decorative applications to heavy-duty sheets for industrial uses. Common thickness ranges from 0.5mm to 6mm or more.

Types of Stainless Steel Used:

  • 304 Stainless Steel: The most commonly used grade for general-purpose applications. Offers good corrosion resistance and is relatively inexpensive.
  • 316 Stainless Steel: Known for superior corrosion resistance, especially in harsh environments (e.g., marine or chemical applications).



Benefits​

They are created by one of the following three processes which includes punch press, rotary pinned and laser. Each of the methods help to create different Decorative Stainless Steel Perforated Sheet of various configurations, forms, and shapes.
