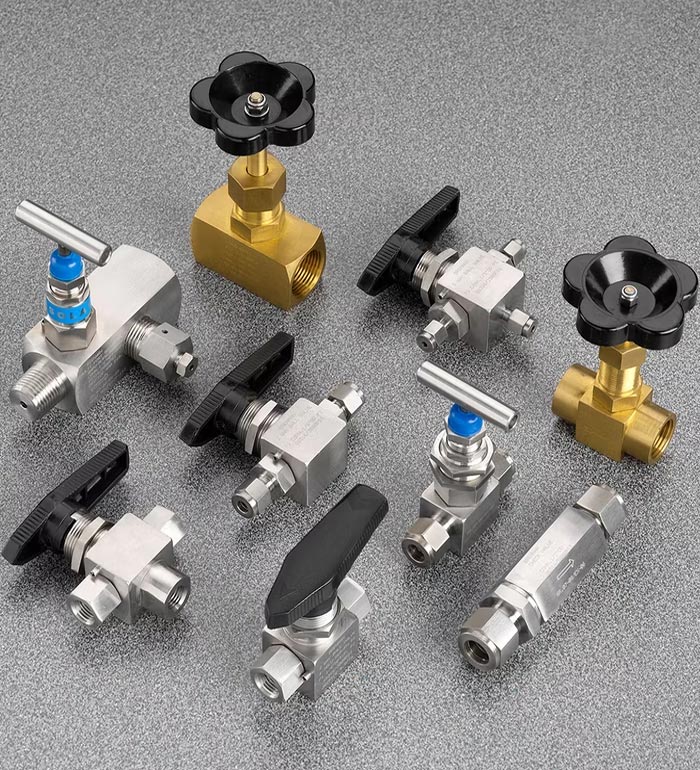

304 Stainless Steel Valve
Leading Manufacturer of 1.4301 UNS S30400 One Way and ball valve This closes and opens the valves. There re different types of gate valves. The ss 304 butterfly valve is a type of gate valve which has disc fitted to the central axis connected to the threaded stem. Butterfly valves are bidirectional valves.
304 Stainless Steel Valve Specification
| Material | Stainless Steel |
|---|---|
| Seal Material | PTFE/ RPTFE |
| Working Pressure | 1.6 – 6.4Mpa |
| Working Temperature |
-29°C — +180°C |
| Availabe Size | 1/2″-4″,(DN15-DN100) |
| Available Connection | BSP/ BSPT/ NPT/ Flanged/ Welded |
| Nominal Pressure | P10/PN16 |
| Operation | Manual,Pneumatic, Electric |
| Suitable Medium | Water,Sewage,Seawater,Gas,Food,Oils,etc |
| Standards | GB9112,DIN2501,BS4504,ISO2084,ANSI125 |
| Applications | Water, Oil, Gas, |
| Nominal Diameter |
DN40-DN300 handle lever
|
| Operation Temperature | -10°C~150°C |
304 Stainless Steel Valve Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 | – |
304 Stainless Steel Valve Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
304 Stainless Steel Valve Application
304 Stainless Steel Valve Size chart
| mm | Inch | Stainless Steel Valves Dimensions|H | Dimensions|L | Dimensions|C (PCD) | Holes |
|---|---|---|---|---|---|
| 50 | 2 | 106 | 200 | 125 | 4XM16 |
| 80 | 3 | 146 | 260 | 160 | 8XM16 |
| 100 | 4 | 194 | 300 | 180 | 8XM16 |
| 125 | 5 | 207 | 350 | 210 | 8XM16 |
304 Stainless Steel Valve
304 stainless steel valve, with its chromium-nickel substance and low carbon, is the most flexible and broadly utilized of the austenitic stainless steels. Its compounds are all adjustments of the 18% chromium, 8% nickel composite. Sort 304 turns out to be impervious to oxidation, consumption, and toughness. All give simplicity of creation and cleaning, avoidance of item tainting offer an assortment of completions and appearances. Sort 304 stainless steels are utilized within ventilation systems, stainless fittings, stockpiling tanks, weight vessels and funneling.
Leading Manufacturer of 1.4301 UNS S30400 One Way and ball valve This closes and opens the valves. There re different types of gate valves. The ss 304 butterfly valve is a type of gate valve which has disc fitted to the central axis connected to the threaded stem. Butterfly valves are bidirectional valves.
304 Stainless Steel Valve Specification
| Material | Stainless Steel |
|---|---|
| Seal Material | PTFE/ RPTFE |
| Working Pressure | 1.6 – 6.4Mpa |
| Working Temperature |
-29°C — +180°C |
| Availabe Size | 1/2″-4″,(DN15-DN100) |
| Available Connection | BSP/ BSPT/ NPT/ Flanged/ Welded |
| Nominal Pressure | P10/PN16 |
| Operation | Manual,Pneumatic, Electric |
| Suitable Medium | Water,Sewage,Seawater,Gas,Food,Oils,etc |
| Standards | GB9112,DIN2501,BS4504,ISO2084,ANSI125 |
| Applications | Water, Oil, Gas, |
| Nominal Diameter |
DN40-DN300 handle lever
|
| Operation Temperature | -10°C~150°C |
316 Stainless Steel Valve
316 stainless steel valves is an authenticate chromium-nickel stainless and high temperature opposing steel with better consumption safety as looked at than other chromium-nickel steels when presented to numerous sorts of concoction erosion bringing on components, for example, ocean water, saline solution results, and so forth. Since Type 316 stainless steel amalgam holds molybdenum bearing it has a more prominent imperviousness to concoction assault than 304. Sort 316 is strong, simple to-create, clean, weld and completion. It is extensively more impervious to results of sulphuric corrosive, chlorides, bromides, iodides and unsaturated fats at high temperature.
Key Features of 316 Stainless Steel Valve
316 Stainless Steel Valve Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 - 18.00 | 2.00 - 3.00 | 11.00 - 14.00 | 67.845 min |
316 Stainless Steel Valve Mechanical Properties
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | - | Z7CND17-11-02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
