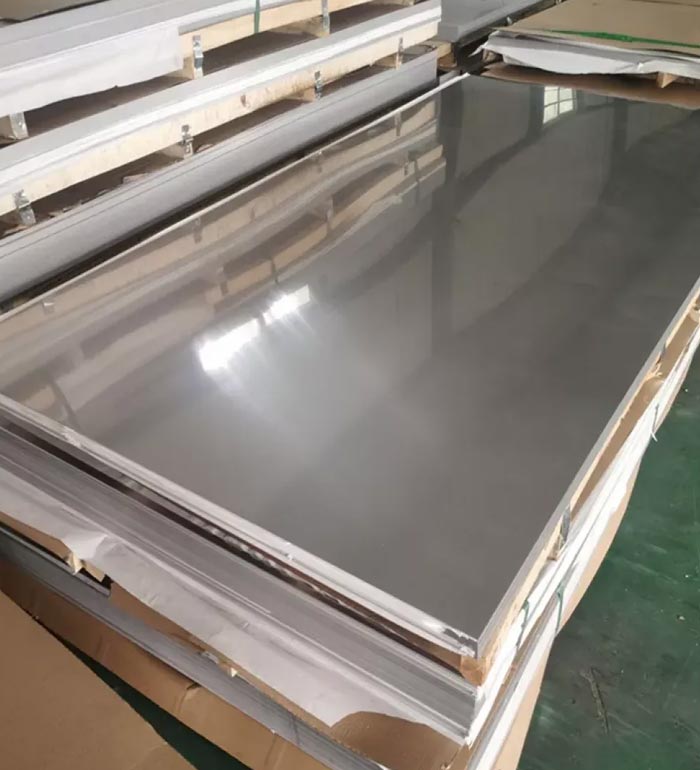

Stainless Steel Sheet 304/316

S upper Company DMCC is a leading manufacturer of high-quality Stainless Steel Sheet 304/316 in India. With years of experience in the industry.

We offered products range consists of Stainless Steel Sheet 304/316, and Sheets Plates and Coils. All offered products are manufactured using high-quality material under the supervision of the quality team. Apart from this, these products are known for their corrosion resistance, long service life, perfect finishing and user-friendly.

Stainless Steel Sheet Specification

Specifications	ASTM A240 / ASME SA240
Thickness	4mm-100mm
Width	1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length	2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface	2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc
Finish	Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form	Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Blank (Circle), Ring (Flange) etc.

Application Of SS Sheet 304/316

Stainless Steel Sheet 304/316 have various applications in various industries as listed below

Grade	:	304, 304L, 304H, 316, 316L, 316LN, 316Ti, 309, 310S, 317L, 321, 347, 409, 410, 420, 430, 446, 202 Etc.
Sheet Finishing	:	2B, 2D, HR, CR, BA (No. 8), Satin (Met with PVC Coated)
Sheet & Plate in Form of	:	Shim Sheet, Perforated Sheet, Chequered Plate, Strip,  Etc.
Value Added Service	:	Cladding Heat Treatment Annealed	Pickling, Polish Rolling Cutting	Bending Forging Minor Fabrication Etc.

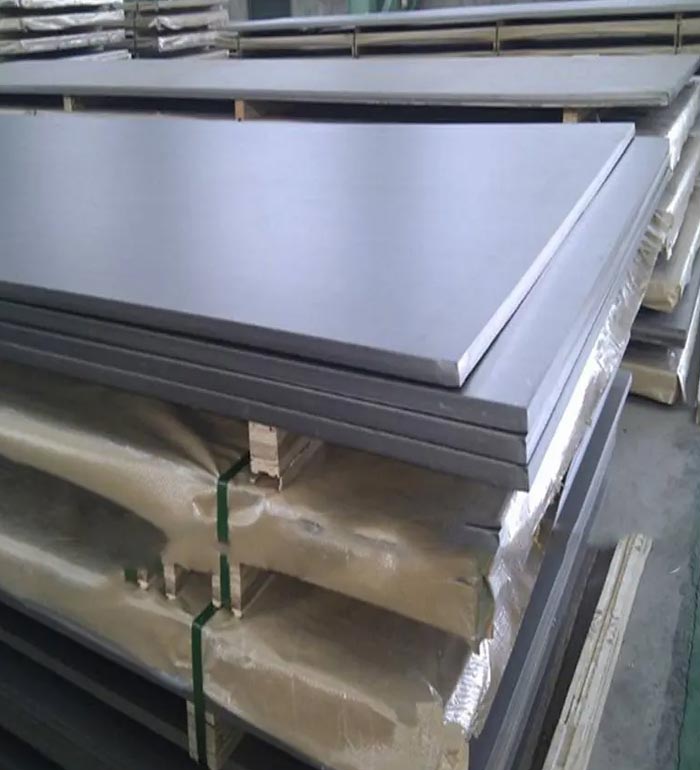

SS Cold Rolled Coil & Sheet 304/316

A stainless steel (SS) Cold Rolled sheet & coil specification, price, & weight chart would typically include details like the stainless steel grade (e.g., 304, 316), thickness (in millimeters), width & length of the sheet/coil, estimated weight per sheet/coil, & the corresponding price per kilogram, with variations based on the specific grade & dimensions.

SS Cold Rolled Coil & Sheet 304/316 Specification

Specifications	ASTM A240 / ASME SA240
Thickness	0.5mm-5mm
Width	1250mm, 1500mm, etc
Length	Satndard Size : 2500mm, 3000mm, Custom length aslo available as per customer requirements
Surface Finish	2B, BA, NO.4, NO.8, PVC
Finish	Cold rolled sheet (CR)
Form	Coils, Sheet, Shim Sheet, Flats.
Test Reports	PMI test, D meter test, dimension verification, IGC practice E, IGC practice C, IGC practice B, UT as per SA435, UT as per SA578, UT as per SA577 and Impact test.

Thickness Chart

Gauge	Thickness	Thickness Tolerance
12 gauge	0.109" | 2.78mm	± 0.009 | ± 0.23mm
11 gauge	0.120" | 3.05 mm	± 0.005
24 gauge	0.025" | 0.64 mm	± 0.003 | ± 0.08mm
16 gauge	0.063" | 1.59mm	± 0.006 | ± 0.15mm
14 gauge	0.078" | 1.98mm	± 0.007 | ± 0.18mm
20 gauge	0.038" | 0.95mm	± 0.004 | ± 0.10mm
18 gauge	0.050" | 1.27mm	± 0.005 | ± 0.13mm
22 gauge	0.031" | 0.79 mm	± 0.004 | ± 0.10mm

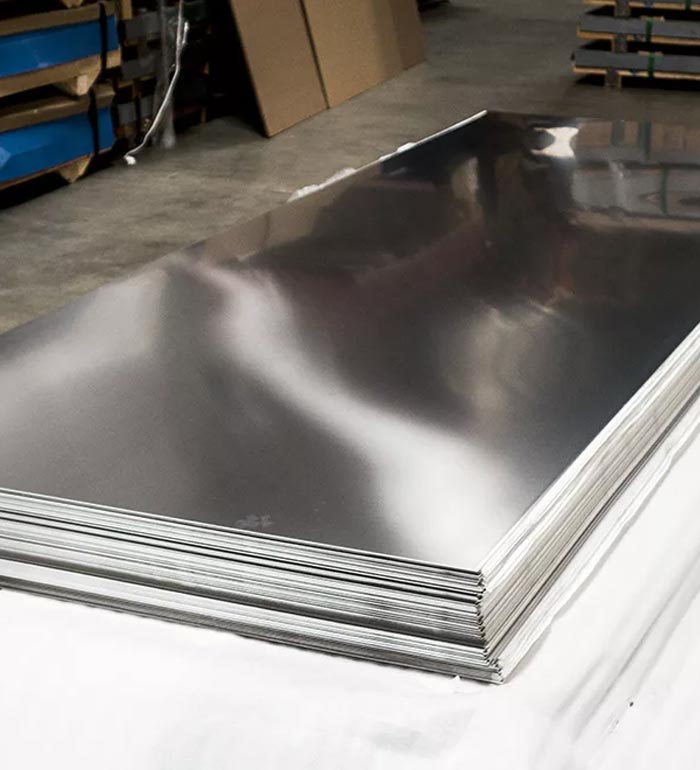

SS Hot Rolled Coil & Plates 304/316

Hot rolling primarily involves deforming the slab / bloom at high temperature & roll pressure - The rolling temperatures vary from 900˚C to 1200°C, which is above the recrystallization temperature for most stainless steels.
The material runs through a series of roll with predetermined roll gaps, pressures, and speeds to achieve its finished dimensions while being at high temperatures.
High finishing temperature ensures the production of a uniform rolled product, increases the ability of the material to undergo thickness reductions up to 98%, and at the same time, prevents the possibility of unwanted strain hardening. After hot rolling, the long and thin sheets are spun into coils and left to cool, these are called Hot Rolled coils.

Specifications

Specifications	ASTM A240 / ASME SA240
Thickness	2.5mm-80mm
Width	1250mm, 1500mm, etc
Length	Satndard Size : 2500mm, 3000mm, 5000mm, 6000mm
Surface Finish	NO.1, Chequered plates
Finish	Hot rolled sheet (HR)
Form	Coils, plate, chequered plates.
Test Reports	PMI test, D meter test, dimension verification, IGC practice E, IGC practice C, IGC practice B, UT as per SA435, UT as per SA578, UT as per SA577 and Impact test.

What are the standard sizes of Stainless Steel Sheet 304/316?

Standard sizes for Stainless Steel Sheet 304/316 typically range from 1000 mm x 2000 mm up to 1500 mm x 3000 mm, with thickness varying from 0.3mm up to 4.0mm, depending on the application. Special orders can also be made for custom sizes and thicknesses.

We also supply make of SAIL / ESSAR / JINDAL / TATA / BHUSHAN/ INDIAN / IMPORTED etc material.



These are some of the reasons why stainless plate is valuable in so many industries :

• Excellent Resistance to corrosion, especially oxidation and sulfidation
• Avoidance of product contamination
• Good Resistance to abrasion & erosion
• Suitable for necessary fabrication processes and also its is easy to clean
• Low weight yet high strength



Application

Stainless Steel Sheet 304/316 have various applications in various industries as listed below



Other grades of Stainless Steel Sheet 304/316 & Plates

• ASTM ASME SA 240 Stainless steel 304 / 304L Sheets & Plates
• ASTM ASME SA 240 Stainless steel 310 / 310S Sheets & Plates
• ASTM ASME SA 240 Stainless steel 316 / 316L Sheets & Plates
• ASTM ASME SA 240 Stainless steel 317 / 317L Sheets & Plates
• ASTM ASME SA 240 Stainless steel 321 / 321H Sheets & Plates
• ASTM ASME SA 240 Stainless steel 347 / 347H Sheets & Plates
• ASTM ASME SA 240 Stainless steel 410 Sheets & Plates

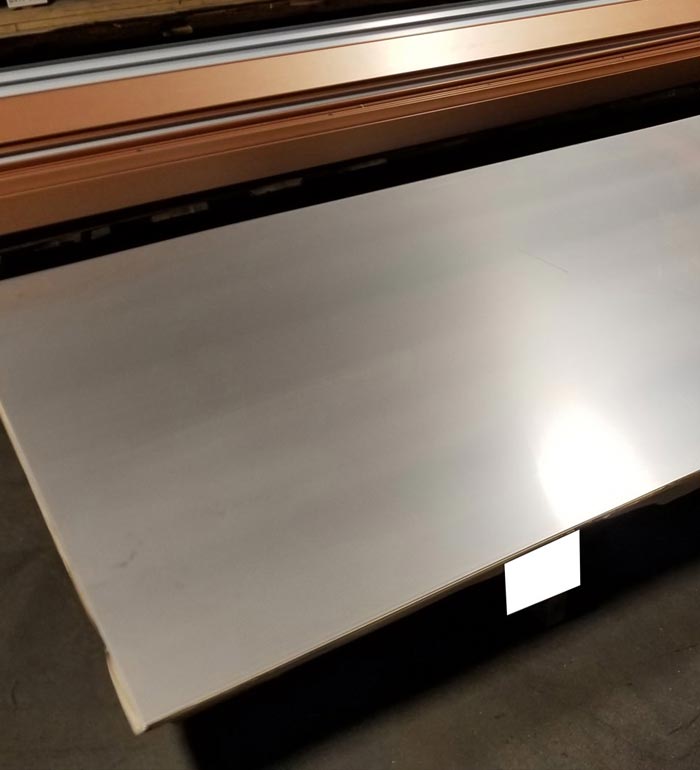

SS 2B Finish Sheet 304/316

An ISO 9001:2008 Certified Company, Metline Industries (Steel Plates, Sheets and Coil Division) is a leading stockholder, suppliers and exporter of 2B Finish Stainless Steel Sheets. 2B Finish Stainless Steel Sheet 304/316 are cut to your specifications and supplied with complete set of mill test reports. Custom length and width up to 1500mm can be made available. All stainless steel 2B finish sheets can be cut to size with the help of our extensive expertise in processing steel sheet products.

Our Product Range

The ASTM A240 specification covers chromium, chromium-nickel, and chromium-manganese-nickel stainless steel plate, sheet, and strip for pressure vessels and for general applications. The steel shall conform to the requirements as to chemical composition specified. The material shall conform to the mechanical properties specified.

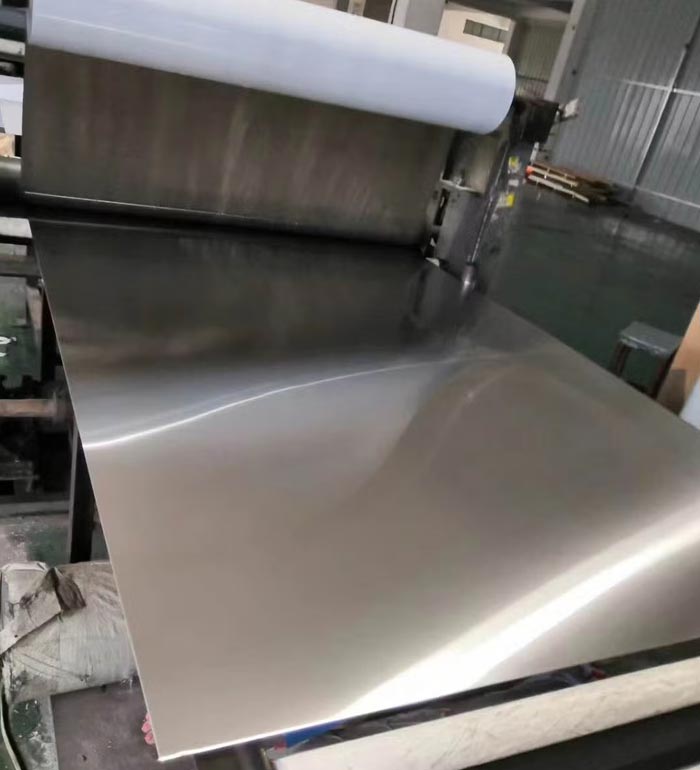

Stainless Steel 304/316 Matte/Pvc/Hairline

Stainless Steel Matt PVC Sheet is a type of stainless steel sheet that has a matte finish and is coated with a PVC film. The PVC film provides additional protection to the sheet and enhances its durability, making it ideal for use in a variety of applications. The matte finish of the Stainless Steel Matt PVC Sheet is achieved by sandblasting or etching the surface of the stainless steel, which creates a uniform, non-reflective finish. This finish is often preferred in architectural and decorative applications.

Specification

Application

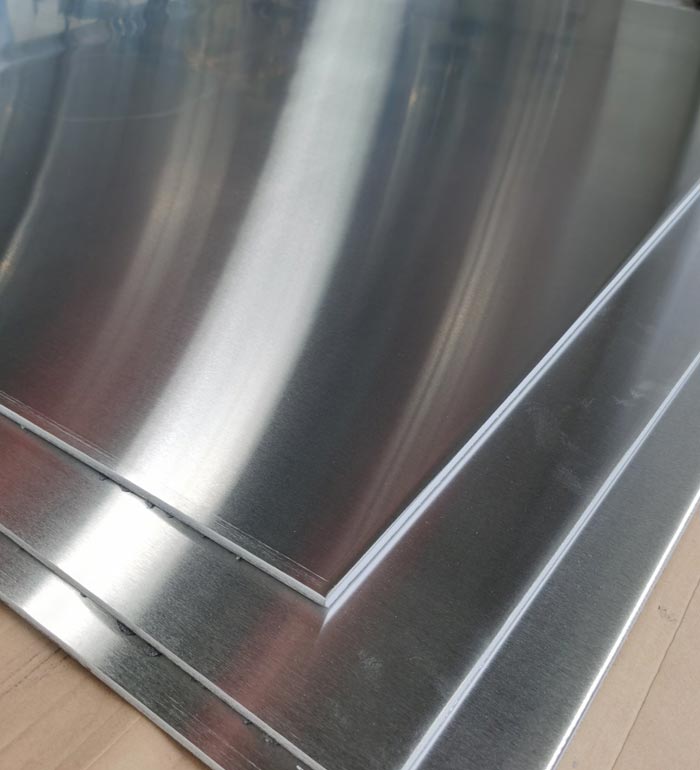

SS 304/316 Mirror Finish Sheet

We are offering high quality of Stainless steel decorative sheets in many finishes Hairline/ Mirror/ Etching/ Embossed sheets. These Stainless Steel Sheet 304/316 are made by our experts, who use state of the art technology. These Stainless Steel Sheet 304/316 are strictly cross tested prior to dispatch so as to assure their compliance with industry defined standards and customers specifications.

Specification

Features

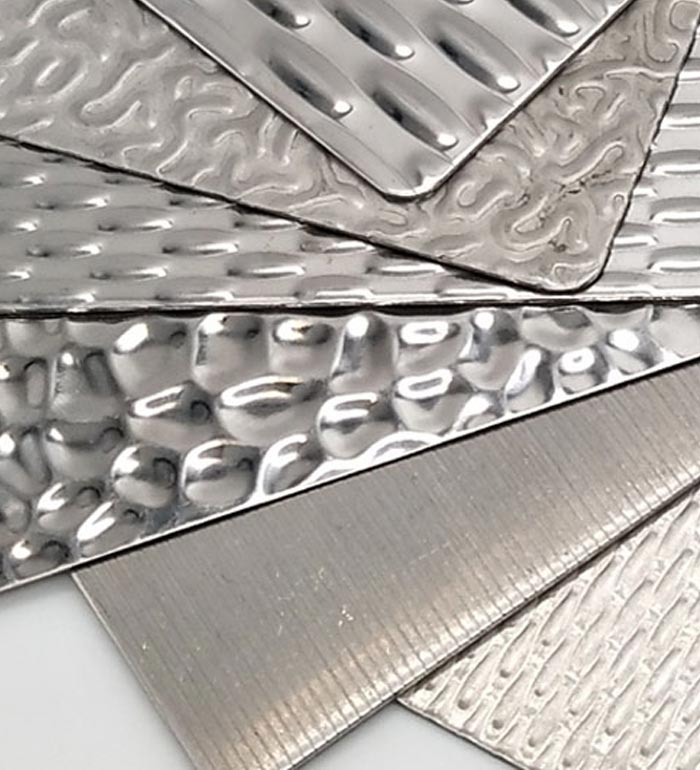

Stainless Steel Deigner Sheet

Exclusively designed Stainless Steel Designer Sheets are used in different domains for their attractive and durable design pattern. These designer sheets are manufactured using graded stainless steel such as 304/L & 316/L. These designer sheets are available in distinguished lengths, sizes, thicknesses, dimensions and finishes.

Super Company DMCC is the Leading Supplier and manufacturer of the Designer Stainless Steel Sheet.Designer Stainless Steel Sheet are excellent for covering joints and edges, providing a smooth and appealing finish. Their easy installation makes them a preferred choice in modern architecture, enhancing the overall design.

Specification

Features

Applications
