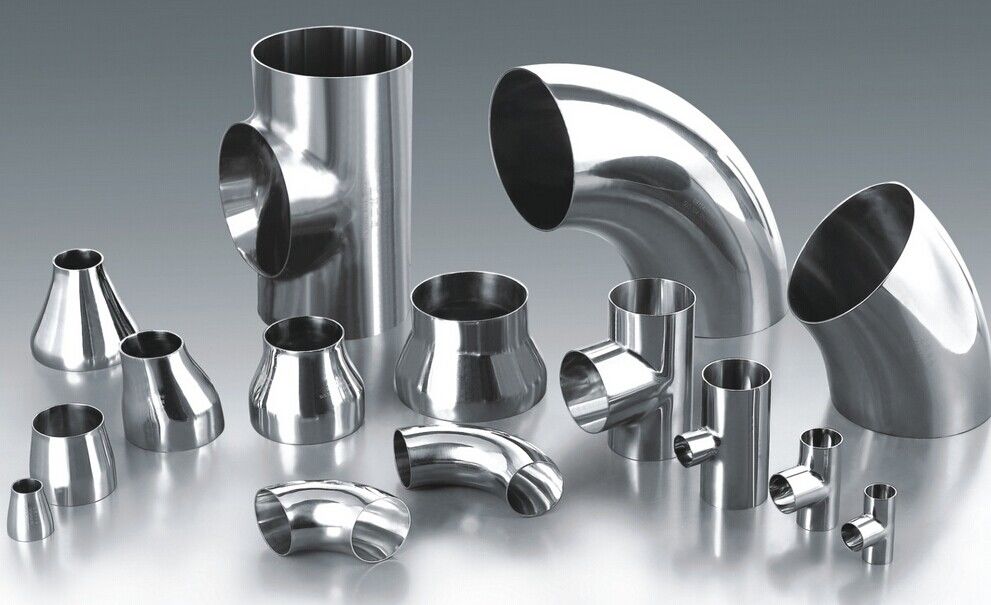

Super Duplex Steel Pipe Fittings
Super Duplex has all of the blessings of different duplex steels, mainly the energy strengthing their biphasic structural composition of identical elements austenitic and ferritic stainless steel.
This microstructure makes all duplex steels round two times as sturdy as ordinary single structure ferritic or austenitic steels, however, Super Duplex has a higher chromium and molybdenum content, giving it extensively elevated resistance to corrosion than its counterparts.
It is synthetic with the use of wonderful raw substances and superior technology. It has a huge variety of applications. Super Duplex pipe fittings carry the occupation of putting in or repairing piping or tubing structures that switch liquid, gas, and sometimes stable substances.
Specification For SDSS Pipe Fittings
| Super Duplex Steel Pipe Fittings Standard |
ASTM A815 / ASME SA815 |
| SDSS Pipe Fitting Dimensions |
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Super Duplex Steel Pipe Fitting Size Range
|
1/2” NB to 24″NB in |
| SDSS Pipe Fittings Type
|
Seamless / Welded / Fabricated |
| ASTM A815 Super Duplex Pipe Fittings
Thickness |
Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
| Grades |
Super Duplex S32750, S32760 |
Super Duplex Steel Pipe Fittings Dimensional Tolerances
(1) Out-of-round is the sum
of absolute values of plus and minus
tolerance.
(2) The inside diameter at
ends and the nominal wall thicknesses are to be specified by
the purchaser.
IN ACCORDANCE WITH ASME B16.9 –
B16.28
| All Fittings |
|
90°and 45° Ells and Tees |
Reducers and Lap Joint Stub |
Caps |
180° Returns |
Angularity Tol |
| Nominal Pipe Plane Size (NPS) |
Outside(1) Diameter at Bevel |
Inside(1) Diameter at End |
Wall(2) Thickness |
Centre-to- End Dimension A,B,C,M |
Overall Length L |
Overall Length E |
Centre-to- Centre Dimension O |
Back-to- Face Dimension K |
Alignment at Ends U |
Nominal Pipe SIze |
Off Angle Q |
Off Angle P |
| 1/2 TO 2-1/2 |
+1/16 |
±1/32 |
Not less than 87-1/2% of
Normal Thickness |
±1/16 |
±1/16 |
±1/8 |
±1/4 |
±1/4 |
±1/32 |
12 to 4 |
1/32 |
1/16 |
|
-1/32 |
|
|
|
|
|
|
|
5 to 8 |
1/16 |
1/8 |
| 3 TO 3-1/2 |
±1/16 |
±1/16 |
±1/16 |
±1/16 |
±1/8 |
±1/4 |
±1/4 |
±1/32 |
10 to 12 |
3/32 |
3/16 |
| 4 |
±1/16 |
±1/16 |
±1/16 |
±1/16 |
±1/8 |
±1/4 |
±1/4 |
±1/32 |
14 to 16 |
3/32 |
1/4 |
| 5 TO 8 |
+1/32 |
±1/16 |
±1/16 |
±1/16 |
±1/4 |
±1/4 |
±1/4 |
±1/32 |
18 to 24 |
1/8 |
3/8 |
|
-1/16 |
|
|
|
|
|
|
|
|
|
|
| 10 TO 18 |
+1/16 |
±1/8 |
±3/32 |
±3/32 |
±1/4 |
±3/8 |
±1/4 |
±1/16 |
All
dimensions are in inches |
|
-1/8 |
|
|
|
|
|
|
|
| 20 TO 24 |
+1/4 |
±3/32 |
±3/32 |
±3/32 |
±1/4 |
±3/8 |
±1/4 |
±1/16 |
|
-3/32 |
|
|
|
|
|
|
|
Super Duplex Steel S32750 Butt Weld Pipe Fittings
Super Duplex Steel S32750 Butt Weld Pipe Fittings comprise chromium, nickel, molybdenum, manganese, iron, and several micro-constituent components. It is the most common super duplex steel grade demanded in the market. It has combined properties of ferrite and austenite alloys. The strength of Super Duplex Steel S32750 is greater than its austenitic and ferrite counterparts. The major difference between this alloy and the standard duplex alloy is the increased percentage of chromium and molybdenum material, which increases the corrosion resistance of the alloy.
Because of the Super Duplex Steel's enhanced yielding and tensile strength, it has a lower alloying cost than austenitic and ferrite grades, as well as corrosion resistance in chloride-containing environments. It possesses excellent resistance to localized corrosion and stress corrosion cracking, as well as strong mechanical strength.
The tensile strength of Super Duplex Steel S32750 Butt Weld Pipe Fittings is 115 ksi (min), and the yield strength is 0.2 percent at 80 ksi (min). Its inherent melting point is 1350℃. The alloy is easily weldable using standard electric arc welding techniques, except oxyacetylene welding, to link metals. It can be used in either hot or cold forming methods. In both of the processes, the alloy should be solution annealed at a temperature above 1052ºC and should be followed by quenching.
Super Duplex Steel S32750 Butt Weld Pipe Fittings are used widely in oil & gas, Heat Exchangers, separators, hydropower, pressure vessels, pulp & paper, subsea machinery, wellhead machinery, structural components, and chemical tankers.
Specification For SDSS S32750 Pipe Fittings
| Super Duplex Steel S32750 Pipe Fittings Standard |
ASTM A815 / ASME SA815 |
| SDSS S32750 Pipe Fitting Dimensions |
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Super Duplex Steel S32750 Pipe Fitting Size Range
|
1/2” NB to 24″NB in |
| SDSS S32750 Pipe Fittings Type
|
Seamless / Welded / Fabricated |
| ASTM A815 Super Duplex S32750 Pipe Fittings
Thickness |
Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
| Grades |
Super Duplex S32750, S32750 |
Equivalent Grades Of Super Duplex Steel S32750 Pipe Fittings
| STANDARD |
WERKSTOFF NR. |
UNS |
| Super Duplex S32750 |
1.4410 |
S32750 |
Super Duplex Steel S32750 Pipe Fittings Chemical Composition
| Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
Fe |
| S32750 |
0.030 max |
1.20 max |
0.80 max |
0.035 max |
0.020 max |
24.00 – 26.00 |
3.00 – 5.00 |
6.00 – 8.00 |
0.24 – 0.32 |
58.095 min |
Super Duplex Steel S32750 Pipe Fittings Mechanical Properties
| Grades |
Density (g/cm 3) |
Density (lb/in 3) |
Melting Point (°C) |
Melting Point (°F) |
| S32750 |
7.8 |
0.281 |
1350 |
2460 |
Duplex Steel S32750 Pipe Fittings Dimensional Tolerances
(1) Out-of-round is the sum
of absolute values of plus and minus
tolerance.
(2) The inside diameter at
ends and the nominal wall thicknesses are to be specified by
the purchaser.
IN ACCORDANCE WITH ASME B16.9 –
B16.28
| All Fittings |
|
90°and 45° Ells and Tees |
Reducers and Lap Joint Stub |
Caps |
180° Returns |
Angularity Tol |
| Nominal Pipe Plane Size (NPS) |
Outside(1) Diameter at Bevel |
Inside(1) Diameter at End |
Wall(2) Thickness |
Centre-to- End Dimension A,B,C,M |
Overall Length L |
Overall Length E |
Centre-to- Centre Dimension O |
Back-to- Face Dimension K |
Alignment at Ends U |
Nominal Pipe SIze |
Off Angle Q |
Off Angle P |
| 1/2 TO 2-1/2 |
+1/16 |
±1/32 |
Not less than 87-1/2% of
Normal Thickness |
±1/16 |
±1/16 |
±1/8 |
±1/4 |
±1/4 |
±1/32 |
12 to 4 |
1/32 |
1/16 |
|
-1/32 |
|
|
|
|
|
|
|
5 to 8 |
1/16 |
1/8 |
| 3 TO 3-1/2 |
±1/16 |
±1/16 |
±1/16 |
±1/16 |
±1/8 |
±1/4 |
±1/4 |
±1/32 |
10 to 12 |
3/32 |
3/16 |
| 4 |
±1/16 |
±1/16 |
±1/16 |
±1/16 |
±1/8 |
±1/4 |
±1/4 |
±1/32 |
14 to 16 |
3/32 |
1/4 |
| 5 TO 8 |
+1/32 |
±1/16 |
±1/16 |
±1/16 |
±1/4 |
±1/4 |
±1/4 |
±1/32 |
18 to 24 |
1/8 |
3/8 |
|
-1/16 |
|
|
|
|
|
|
|
|
|
|
| 10 TO 18 |
+1/16 |
±1/8 |
±3/32 |
±3/32 |
±1/4 |
±3/8 |
±1/4 |
±1/16 |
All
dimensions are in inches |
|
-1/8 |
|
|
|
|
|
|
|
| 20 TO 24 |
+1/4 |
±3/32 |
±3/32 |
±3/32 |
±1/4 |
±3/8 |
±1/4 |
±1/16 |
|
-3/32 |
|
|
|
|
|
|
|
Super Duplex Steel S32760 Butt Weld Pipe Fittings.
Super Duplex Steel S32760 Pipes and Tubes withstand corrosion in a wide range of media, with exceptional resistance to pitting and crevice corrosion in saltwater and other chloride-containing environments. Toughness, high strength, and corrosion resistance in a wide range of organic and inorganic acids are among the properties of Super Duplex Steel Tubes. It contains 25% chromium(Cr), 4% molybdenum(Mo), and 7% nickel(N). It includes around 40-50 percent of different iron oxides when annealed. This is a alloyed super duplex SS that has excellent pitting resistance that is suitable for usage in harsh situations. This super duplex grade microstructure is ferritic and austenitic. It is resistant to stress cracking induced due to chloride, which occurs in normal grades of stainless steel. In sour gas fields, it is also particularly resistant to sulfide-induced stress corrosion cracking.
Specification For SDSS S32760 Pipe Fittings
| Super Duplex Steel S32760 Pipe Fittings Standard |
ASTM A815 / ASME SA815 |
| SDSS S32760 Pipe Fitting Dimensions |
ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Super Duplex Steel S32760 Pipe Fitting Size Range
|
1/2” NB to 24″NB in |
| SDSS S32760 Pipe Fittings Type
|
Seamless / Welded / Fabricated |
| ASTM A815 Super Duplex S32760 Pipe Fittings
Thickness |
Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
| Grades |
Super Duplex S32750, S32760 |
Equivalent Grades Of Super Duplex Steel S32760 Pipe Fittings
| STANDARD |
UNS |
WERKSTOFF NR. |
| Super Duplex S32760 |
S32760 |
1.4501 |
Super Duplex Steel S32760 Pipe Fittings Chemical Composition
| Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
Fe |
| S32760 |
0.05 max |
1.00 max |
1.00 max |
0.030 max |
0.010 max |
24.00 – 26.00 |
3.00 – 4.00 |
6.00 – 8.00 |
0.20 – 0.30 |
57.61 min |
Super Duplex Steel S32760 Pipe Fittings Mechanical Properties
| Grades |
Density (g/cm 3) |
Density (lb/in 3) |
Melting Point (°C) |
Melting Point (°F) |
| S32760 |
7.8 |
0.281 |
1350 |
2460 |
Super Duplex Steel S32760 Pipe Fittings Dimensional Tolerances
(1) Out-of-round is the sum
of absolute values of plus and minus
tolerance.
(2) The inside diameter at
ends and the nominal wall thicknesses are to be specified by
the purchaser.
IN ACCORDANCE WITH ASME B16.9 –
B16.28
| All Fittings |
|
90°and 45° Ells and Tees |
Reducers and Lap Joint Stub |
Caps |
180° Returns |
Angularity Tol |
| Nominal Pipe Plane Size (NPS) |
Outside(1) Diameter at Bevel |
Inside(1) Diameter at End |
Wall(2) Thickness |
Centre-to- End Dimension A,B,C,M |
Overall Length L |
Overall Length E |
Centre-to- Centre Dimension O |
Back-to- Face Dimension K |
Alignment at Ends U |
Nominal Pipe SIze |
Off Angle Q |
Off Angle P |
| 1/2 TO 2-1/2 |
+1/16 |
±1/32 |
Not less than 87-1/2% of
Normal Thickness |
±1/16 |
±1/16 |
±1/8 |
±1/4 |
±1/4 |
±1/32 |
12 to 4 |
1/32 |
1/16 |
|
-1/32 |
|
|
|
|
|
|
|
5 to 8 |
1/16 |
1/8 |
| 3 TO 3-1/2 |
±1/16 |
±1/16 |
±1/16 |
±1/16 |
±1/8 |
±1/4 |
±1/4 |
±1/32 |
10 to 12 |
3/32 |
3/16 |
| 4 |
±1/16 |
±1/16 |
±1/16 |
±1/16 |
±1/8 |
±1/4 |
±1/4 |
±1/32 |
14 to 16 |
3/32 |
1/4 |
| 5 TO 8 |
+1/32 |
±1/16 |
±1/16 |
±1/16 |
±1/4 |
±1/4 |
±1/4 |
±1/32 |
18 to 24 |
1/8 |
3/8 |
|
-1/16 |
|
|
|
|
|
|
|
|
|
|
| 10 TO 18 |
+1/16 |
±1/8 |
±3/32 |
±3/32 |
±1/4 |
±3/8 |
±1/4 |
±1/16 |
All
dimensions are in inches |
|
-1/8 |
|
|
|
|
|
|
|
| 20 TO 24 |
+1/4 |
±3/32 |
±3/32 |
±3/32 |
±1/4 |
±3/8 |
±1/4 |
±1/16 |
|
-3/32 |
|
|
|
|
|
|
|
