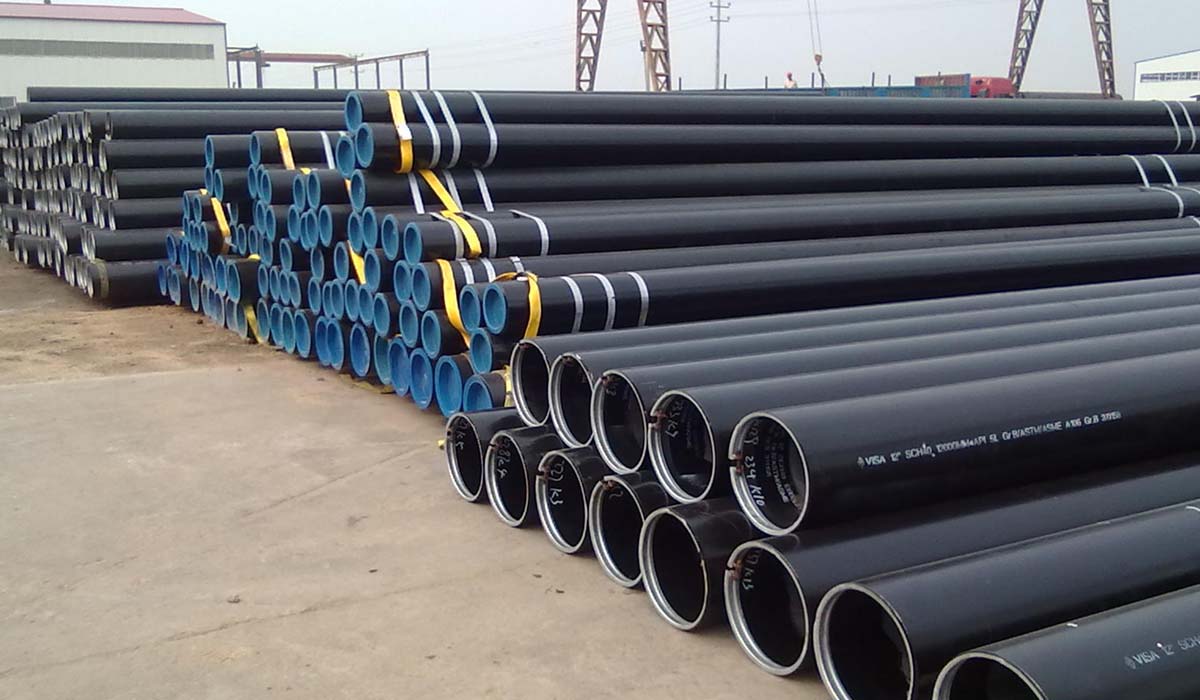

Carbon API 5L
API 5L specification covers seamless and welded steel line pipe. It includes standard-weight and extra-strong threaded line pipe. It includes standard-weight and extra-strong threaded line pipe; and standard-weight plain-end, regular-weight plain-end, special plain-end, extra-strong plain-end, special plain-end, extra-strong plain-end pipe; as as well as bell and spigot and through-the-flow line(TFL) pipe.
The purpose of this specification is to provide standards for pipe suitable for use in conveying gas, water, and oil in both the oil and natural gas industries
Table of Content
- >>API 5L GR. B Pipes
- >>API 5L GR. B PSL 2 Pipe
- >>API 5L X42 PSL1 Steel Pipe
- >>API 5L X42 PSL2 Pipe
- >>API 5L X46 PSL1 Pipe
- >>API 5L X46 PSL2 Pipe
- >>API 5L X52 PSL1 Pipe
- >>API 5L X52 PSL2 Pipe
- >>API 5L X56 PSL1 Pipe
- >>API 5L X56 PSL2 Pipe
- >>API 5L X60 PSL1 Pipe
- >>API 5L X60 PSL2 Pipe
- >>API 5L X65 PSL1 Pipe
- >>API 5L X65 PSL2 Pipe
- >>API 5L X70 PSL1 Pipe
- >>API 5L X70 PSL2 Pipe
API 5L GR. B Pipes
API 5L Seamless Pipes in PSL-1 & PSL-2 line pipe:
Sizes (Seamless): 1/2" NB - 60" NB
Sizes (ERW): 1/2" NB - 24" NB
Sizes (SAW/LSAW): 16" NB - 100" NB
Wall Thickness available:
Schedule 20 - Schedule XXS (heavier on request) up to 250 mm thk.
Material Grades:
| High Temperature Seamless Pipe | ASTM A106 Gr. B/C, API 5L Gr. B, ASTM A53 Gr. B |
| Heat Exchanger Seamless Tube | ASTM A179 |
| Low Temperature Seamless Pipe | ASTM A333 Gr. 3/6 |
| Low Temperature Seamless Tube | ASTM A334 Gr. 6 |
| High Yield Seamless Pipe | API 5L Gr. X42/X46/X52/X56/X60/X65/X70/X80 PSL-1/PSL-2 |
| High Yield Seamless Pipe | ISO 3183 Gr. L245, L290, L320, L360, L390, L415, L450, L485 |
| Atmospheric & Low Temp EFW Pipes | ASTM A671 Gr. CC60/CC65/CC70 |
| High Pressure & Moderate Temp EFW Pipes | ASTM A672 Gr. B60/B65/B70/C55/C60/C65/C70 |
| High Yield ERW/SAW Pipe | API 5L Gr. X42/X46/X52/X56/X60/X65/X70/X80 PSL-1/PSL-2 |
| High Yield ERW/SAW Pipe | ISO 3183 Gr. L245, L290, L320, L360, L390, L415, L450, L485 |
Chemical Composition API 5L Pipes Grade B, X-42, X-46, X-52, X-56, X-60, X-65, X-70, X-80 in PSL1 Line Pipe
PSL 1 |
|||||||||
| GRADE | Chemical Composition | Mechanical Property | |||||||
| C (Max) | Mn (Max) | P (Max) | S (Max) | TENSILE ( Min ) | YIELD ( Min ) | ||||
| Psi X 1000 | Mpa | Psi X 1000 | Mpa | ||||||
| A25 | CL I | 0.21 | 0.60 | 0.030 | 0.030 | 45 | 310 | 25 | 172 |
| CL II | 0.21 | 0.60 | 0.030 | 0.030 | |||||
| A | 0.22 | 0.90 | 0.030 | 0.030 | 48 | 331 | 30 | 207 | |
| B | 0.26 | 1.20 | 0.030 | 0.030 | 60 | 414 | 35 | 241 | |
| X42 | 0.26 | 1.30 | 0.030 | 0.030 | 60 | 414 | 42 | 290 | |
| X46 | 0.26 | 1.40 | 0.030 | 0.030 | 63 | 434 | 46 | 317 | |
| X52 | 0.26 | 1.40 | 0.030 | 0.030 | 66 | 455 | 52 | 359 | |
| X56 | 0.26 | 1.40 | 0.030 | 0.030 | 71 | 490 | 56 | 386 | |
| X60 | 0.26 | 1.40 | 0.030 | 0.030 | 75 | 517 | 60 | 414 | |
| X65 | 0.26 | 1.45 | 0.030 | 0.030 | 77 | 531 | 65 | 448 | |
| X70 | 0.26 | 1.65 | 0.030 | 0.030 | 82 | 565 | 70 | 483 | |
Chemical Composition API 5L Pipes Grade B, X-42, X-46, X-52, X-56, X-60, X-65, X-70, X-80 in PSL2 Line Pipe
| PSL 2 | ||||||||||||
| GRADE | Chemical Composition | Mechanical Property | ||||||||||
| C (Max) |
Mn (Max) |
P (Max) |
S (Max) |
Tensile | Yield | C. E. IMPACT ENERGY | ||||||
| Psi x 1000 | Mpa | Psi x 1000 | Mpa | PCM | IIW | J | FT/LB | |||||
| B | 0.22 | 1.20 | 0.025 | 0.015 | 60 - 110 | 414 - 758 | 35 - 65 | 241 - 448 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X42 | 0.22 | 1.30 | 0.025 | 0.015 | 60 - 110 | 414 - 758 | 42 - 72 | 290 - 496 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X46 | 0.22 | 1.40 | 0.025 | 0.015 | 63 - 110 | 434 - 758 | 46 - 76 | 317 - 524 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X52 | 0.22 | 1.40 | 0.025 | 0.015 | 66 - 110 | 455 - 758 | 52 - 77 | 359 - 531 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X56 | 0.22 | 1.40 | 0.025 | 0.015 | 71 - 110 | 490 - 758 | 56 - 79 | 386 - 544 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X60 | 0.22 | 1.40 | 0.025 | 0.015 | 75 - 110 | 517 - 758 | 60 - 82 | 414 - 565 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X65 | 0.22 | 1.45 | 0.025 | 0.015 | 77 - 110 | 531 - 758 | 65 - 82 | 448 - 565 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X70 | 0.22 | 1.65 | 0.025 | 0.015 | 82 - 110 | 565 - 758 | 70 - 82 | 483 - 565 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
| X80 | 0.22 | 1.90 | 0.025 | 0.015 | 90 - 120 | 621 - 827 | 80 - 102 | 552 - 705 | 0.25 | 0.43 | T/L 27/41 | T/L 20/30 |
API 5L GR. B PSL 2 Pipe
The American Petroleum Institute specification API 5L covers seamless and welded steel line pipe. This is steel pipe for pipeline transportation systems in the petroleum and natural gas industries. API 5L is suitable for conveying gas, water, and oil. Size range is limited only by manufacturer’s capabilities.
Specifications for API 5L adhere to the International Organization for Standardization isO 3183, which standardizes pipeline transportation systems within the materials, equipment and offshore structures for petroleum, petrochemical, and natural gas industries. The technical committee authoring the standards recognized that there are two basic Product Specifications Levels (PSL) of technical requirements and therefore developed PSL 1 and PSL 2. PSL 1 is a standard quality for line pipe where PSL 2 contains additional chemical, mechanical properties, and testing requirements.
API 5L Seamless Pipes in PSL-1 & PSL-2 line pipe:
Sizes (Seamless): 1/2" NB - 60" NBSizes (ERW): 1/2" NB - 24" NB
Sizes (SAW/LSAW): 16" NB - 100" NB
Wall Thickness available: Schedule 20 - Schedule XXS (heavier on request) up to 250 mm thk.
Material Grades:
| High Temperature Seamless Pipe | ASTM A106 Gr. B/C, API 5L Gr. B, ASTM A53 Gr. B |
| Heat Exchanger Seamless Tube | ASTM A179 |
| Low Temperature Seamless Pipe | ASTM A333 Gr. 3/6 |
| Low Temperature Seamless Tube | ASTM A334 Gr. 6 |
| High Yield Seamless Pipe | API 5L Gr. X42/X46/X52/X56/X60/X65/X70/X80 PSL-1/PSL-2 |
| High Yield Seamless Pipe | ISO 3183 Gr. L245, L290, L320, L360, L390, L415, L450, L485 |
| Atmospheric & Low Temp EFW Pipes | ASTM A671 Gr. CC60/CC65/CC70 |
| High Pressure & Moderate Temp EFW Pipes | ASTM A672 Gr. B60/B65/B70/C55/C60/C65/C70 |
| High Yield ERW/SAW Pipe | API 5L Gr. X42/X46/X52/X56/X60/X65/X70/X80 PSL-1/PSL-2 |
| High Yield ERW/SAW Pipe | ISO 3183 Gr. L245, L290, L320, L360, L390, L415, L450, L485 |
Additional Testing :
NACE MR0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc.
Dimensions :
All Pipe is manufactured and inspected/tested to the relevant standards including ASTM, ASME, API.
API 5L X42 PSL1 Steel Pipe
API 5L X65 PSL1/2 Pipes Application-
Carbon Steel is used in the most critical engineering applications and also in certain applications in the automotive sector. In addition, some of the value-added Carbon Steel products include steel for LPG cylinders, API grade, corrosion resistant steel, critical structural application steel, boiler quality, auto grades, precision tubes and medium/high carbon grades, among others.
Specification for line pipe API SPEC 5L (-09): specifies the requirements for the manufacture of two product specification levels (PSL1 and PSL2) of seamless and welded steel pipes for use in pipeline transportation systems in the petroleum and natural gas industries.
Material Grades
| High Temperature Seamless Pipe | ASTM A106 Gr. B/C, API 5L Gr. B, ASTM A53 Gr. B |
| Heat Exchanger Seamless Tube | ASTM A179 |
| Low Temperature Seamless Pipe | ASTM A333 Gr. 3/6 |
| Low Temperature Seamless Tube | ASTM A334 Gr. 6 |
| High Yield Seamless Pipe | API 5L Gr. X42/X46/X52/X56/X60/X65/X70/X80 PSL-1/PSL-2 |
| High Yield Seamless Pipe | ISO 3183 Gr. L245, L290, L320, L360, L390, L415, L450, L485 |
| Atmospheric & Low Temp EFW Pipes | ASTM A671 Gr. CC60/CC65/CC70 |
| High Pressure & Moderate Temp EFW Pipes | ASTM A672 Gr. B60/B65/B70/C55/C60/C65/C70 |
| High Yield ERW/SAW Pipe | API 5L Gr. X42/X46/X52/X56/X60/X65/X70/X80 PSL-1/PSL-2 |
| High Yield ERW/SAW Pipe | ISO 3183 Gr. L245, L290, L320, L360, L390, L415, L450, L485 |
Chemical Composition of API 5L X42 PSL 1 Carbon Steel Seamless Pipe:
| Mass fraction, based upon heat and product analysis a | ||||||
| SEAMLESS Pipe | ||||||
| C | Mn | P | V | Nb | Ti | |
| maxb | maxb | max. | max. | max. | max. | max. |
| 0.28 | 1.20 | 0.030 | 0.030 | c,d | c,d | d |
| WELDED Pipe | ||||||
| 0.26 | 1.20 | 0.030 | 0.030 | c,d | c,d | d |
Mechanical properties of API 5L X42 PSL 1 Carbon Steel Seamless Pipe
| Y.S | T.S | ELONGATION |
| Mpa(psi) | Mpa(psi) | |
| min | min | min |
| 245(35 500) | 415(60 200) | 28% |
• 0.50% maximum for copper, 0.50% maximum for nickel, 0.50% maximum for chromium, and 0.15% maximum for molybdenum.
• For each reduction of 0.01% below the specified maximum concetration for carbon, an increase of 0.05% above the specified maximum concentration for manganese is permissible, up to a maximum of 1.65%
• Unless otherwise agreed, the sum of the niobium and vanadium contents shall be ≤0.06%.
• The sum of the niobium ,vanadium and titanium concentratons shall be ≤0.06%.
• Unless otheriwse agreed.
• Unless otherwise agreed, the sum of niobium, vanadium and titanium concentrations shall be ≤ 0.15%
Chemical composition for API 5L Pipe with T LESS THAN 25.0mm
| Steel grade | C max | Mn max | P S max | V max | Nb max | Ti max |
| Seamless Pipe | ||||||
| B | 0.28 | 1.20 | 0.030 | c,d | c,d | d |
| X42 | 0.28 | 1.30 | 0.030 | d | d | d |
| X46 | 0.28 | 1.40 | 0.030 | d | d | d |
| X52 | 0.28 | 1.40 | 0.030 | d | d | d |
| X56 | 0.28 | 1.40 | 0.030 | d | d | d |
| X60 | 0.28 | 1.40 | 0.030 | f | f | f |
| X65 | 0.28 | 1.40 | 0.030 | f | f | f |
| X70 | 0.28 | 1.40 | 0.030 | f | f | f |
| c Nb+V≤0.06%, d Nb+V+Ti≤0.15%, f Unless otherwise agreed, Nb+V+Ti≤0.15% | ||||||
API 5L X42 PSL2 Pipe
| CHEMICAL COMPOSITION OF API 5L X42 CARBON STEEL PIPE | |||||||||||
| Mass fraction, based upon heat and product analysis % maximum | CARBON EQUIVALENT a | ||||||||||
| % MAXIMUM | |||||||||||
| Cb | Si | Mnb | P | S | V | Nb | Ti | Other | CEIIW | CEPcm | |
| SEAMLESS & WELDED PIPES | |||||||||||
| L290R OR X42R | 0.24 | 0.4 | 1.2 | 0.025 | 0.015 | 0.06 | 0.05 | 0.04 | e | 0.43 | 0.25 |
| L290Q OR X42Q | 0.18 | 0.45 | 1.4 | 0.025 | 0.015 | 0.05 | 0.05 | 0.04 | e | 0.43 | 0.25 |
| WELDED PIPE | |||||||||||
| L290M OR X42M | 0.22 | 0.45 | 1.3 | 0.025 | 0.015 | 0.05 | 0.05 | 0.04 | e | 0.43 | 0.25 |
| MECHANICAL REQUIREMENTSOF API 5L X42 CARBON STEEL PIPE | ||
| Y.S | T.S | ELONGATION |
| Mpa(psi) | Mpa(psi) | |
| min | min | min |
| 290(42 100) | 495(71 800) | f |
| IMPACT TEST OF API 5LX42 CARBON STEEL PIPE | |
| AVG. ABSORBED ENERGY | IND. ABSORBED ENERGY |
| Min.(joules) | Min.(joules) |
| 27 | 20 |
Chemical composition for API 5L X46 PSL1 Seamless Pipe with T LESS THAN 25.0mm
| Steel grade | C max | Mn max | P S max | V max | Nb max | Ti max |
| Seamless pipe | ||||||
| B | 0.28 | 1.20 | 0.030 | c,d | c,d | d |
| X42 | 0.28 | 1.30 | 0.030 | d | d | d |
| X46 | 0.28 | 1.40 | 0.030 | d | d | d |
| X52 | 0.28 | 1.40 | 0.030 | d | d | d |
| X56 | 0.28 | 1.40 | 0.030 | d | d | d |
| X60 | 0.28 | 1.40 | 0.030 | f | f | f |
| X65 | 0.28 | 1.40 | 0.030 | f | f | f |
| X70 | 0.28 | 1.40 | 0.030 | f | f | f |
| c Nb+V‰¤0.06%, d Nb+V+Ti‰¤0.15%, f Unless otherwise agreed, Nb+V+Ti‰¤0.15% | ||||||
Material Grades
| High Temperature Seamless Pipe | ASTM A106 Gr. B/C, API 5L Gr. B, ASTM A53 Gr. B |
| Heat Exchanger Seamless Tube | ASTM A179 |
| Low Temperature Seamless Pipe | ASTM A333 Gr. 3/6 |
| Low Temperature Seamless Tube | ASTM A334 Gr. 6 |
| High Yield Seamless Pipe | API 5L Gr. X42/X46/X52/X56/X60/X65/X70/X80 PSL-1/PSL-2 |
| High Yield Seamless Pipe | ISO 3183 Gr. L245, L290, L320, L360, L390, L415, L450, L485 |
| Atmospheric & Low Temp EFW Pipes | ASTM A671 Gr. CC60/CC65/CC70 |
| High Pressure & Moderate Temp EFW Pipes | ASTM A672 Gr. B60/B65/B70/C55/C60/C65/C70 |
| High Yield ERW/SAW Pipe | API 5L Gr. X42/X46/X52/X56/X60/X65/X70/X80 PSL-1/PSL-2 |
| High Yield ERW/SAW Pipe | ISO 3183 Gr. L245, L290, L320, L360, L390, L415, L450, L485 |
API 5L X46 PSL1 Pipe
API 5L Line Pipe Specifications for these pipes regulate usage for standard Grade A and Grade B pipes, with Grade X indicating stronger variants for drilling, production and transport requirements for offshore, arctic, deep well or harsher environments. Longitudinally welded steel pipes / Carbon Steel API 5L X46 PSL 1 Pipe are used in onshore and offshore oil and gas pipelines requiring critical service, high performance and tight tolerances. All products are industry-standard conforming to or exceeding API, ASTM, ASME, ANSI and other national and international standards.
Specification for line pipe API SPEC 5L (-09): specifies the requirements for the manufacture of two product specification levels (PSL1 and PSL2) of seamless and welded steel pipes for use in pipeline transportation systems in the petroleum and natural gas industries.
Chemical Composition of API 5L X46 PSL1 Pipe:
| Mass fraction, based upon heat and product analysis a | ||||||
| SEAMLESS PIPE | ||||||
| C | Mn | P | V | Nb | Ti | |
| maxb | maxb | max. | max. | max. | max. | max. |
| 0.28 | 1.20 | 0.030 | 0.030 | c,d | c,d | d |
| WELDED PIPE | ||||||
| 0.26 | 1.20 | 0.030 | 0.030 | c,d | c,d | d |
Mechanical properties of API 5L X46 PSL1 Pipe
| Y.S | T.S | ELONGATION |
| Mpa(psi) | Mpa(psi) | |
| min | min | min |
| 360 (52 200) | 460 (66 700) | 28% |
- 0.50% maximum for copper, 0.50% maximum for nickel, 0.50% maximum for chromium, and 0.15% maximum for molybdenum.
- For each reduction of 0.01% below the specified maximum concetration for carbon, an increase of 0.05% above the specified maximum concentration for manganese is permissible, up to a maximum of 1.65%
- Unless otherwise agreed, the sum of the niobium and vanadium contents shall be ‰¤0.06%.
- The sum of the niobium ,vanadium and titanium concentratons shall be ‰¤0.06%
- Unless otheriwse agreed.
- Unless otherwise agreed, the sum of niobium, vanadium and titanium concentrations shall be ‰¤ 0.15%
Pipe grades, Steel grades and acceptable delivery conditions -
| PSL | Delivery conditions for API 5L X52 PSL1 Seamless Pipe | Steel grade |
| PSL 1 | As rolled, normalizing rolled, thermomechanical rolled / formed, normalizing formed, normalized and tempered; if agreed, quenched and tempered for SMLS pipe only | B |
| As rolled, normalizing rolled, thermomechanical rolled / formed, normalizing formed, normalized and tempered or quenched and tempered | X42 | |
| X46 | ||
| X52 | ||
| X56 | ||
| X60 | ||
| X65 | ||
| X70 | ||
| PSL 2 | As rolled | BR |
| Normalizing rolled / formed, normalized, normalized and tempered | BN | |
| Quenched and tempered | BQ |
Chemical composition for API 5L X46 PSL1 Pipe with T LESS THAN 25.0mm
| Steel grade | C max | Mn max | P S max | V max | Nb max | Ti max |
| Seamless pipe | ||||||
| B | 0.28 | 1.20 | 0.030 | c,d | c,d | d |
| X42 | 0.28 | 1.30 | 0.030 | d | d | d |
| X46 | 0.28 | 1.40 | 0.030 | d | d | d |
| X52 | 0.28 | 1.40 | 0.030 | d | d | d |
| X56 | 0.28 | 1.40 | 0.030 | d | d | d |
| X60 | 0.28 | 1.40 | 0.030 | f | f | f |
| X65 | 0.28 | 1.40 | 0.030 | f | f | f |
| X70 | 0.28 | 1.40 | 0.030 | f | f | f |
| c Nb+V≤0.06%, d Nb+V+Ti≤0.15%, f Unless otherwise agreed, Nb+V+Ti≤0.15% | ||||||
Requirements for the results of tensile tests for API 5L X46 PSL1 Pipe PSL2 Pipe
| Pipe grade | Pipe body of seamless and welded pipes | ||
| Yield strength | Tensile strength | Elongation | |
| MPa (psi) min | MPa (psi) min | % min | |
| B | 245(35 500) | 415(60 200) | c |
| X42 | 290(42 100) | 415(60 200) | c |
| X46 | 320(46 400) | 435(63 100) | c |
| X52 | 360(52 200) | 460(66 700) | c |
| X56 | 390(56 600) | 490(71 100) | c |
| X60 | 415(60 200) | 520(75 400) | c |
| X65 | 450(65 300) | 535(77 600) | c |
| X70 | 485(70 300) | 570(82 700) | c |
| c The specified minimum elongation, Af1 shall be as determined using the equation as described in Specification | |||
Additional Testing for API 5L X46 PSL1 Seamless Pipe :
NACE MR0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc.
Dimensions for API 5L X46 PSL1 Seamless Pipe:
All Pipe is manufactured and inspected/tested to the relevant standards including ASTM, ASME, API.
API 5L X46 PSL2 Pipe
Chemical Composition API 5L X46 PSL2 Pipe :
| Mass fraction, based upon heat and product analysis % maximum | CARBON EQUIVALENT a | ||||||||||
| % MAXIMUM | |||||||||||
| Cb | Si | Mnb | P | S | V | Nb | Ti | Other | CEIIW | CEPcm | |
| SEAMLESS & WELDED PIPES | |||||||||||
| L320N or X46N | 0.24 | 0.4 | 1.2 | 0.025 | 0.015 | 0.07 | 0.05 | 0.04 | e | 0.43 | 0.25 |
| L320Q or X46Q | 0.18 | 0.45 | 1.4 | 0.025 | 0.015 | 0.05 | 0.05 | 0.04 | e | 0.43 | 0.25 |
| WELDED PIPE | |||||||||||
| L290M OR X42M | 0.22 | 0.45 | 1.3 | 0.025 | 0.015 | 0.05 | 0.05 | 0.04 | e | 0.43 | 0.25 |
Mechanical properties API 5L X46 PSL2 Pipe
| Y.S | T.S | ELONGATION |
| Mpa(psi) | Mpa(psi) | |
| min | min | min |
| 320 (46 400) | 435 (63 100) | F |
| IMPACT TEST | |
| AVG. ABSORBED ENERGY | IND. ABSORBED ENERGY |
| Min.(joules) | Min.(joules) |
| 27 | 20 |
Requirements for the results of tensile tests for API 5L PSL 2 Pipe
| Pipe grade | Pipe body of seamless and welded pipes | Weld seam of HFW, SAW and COW pipes | |||||
| Yield strengtha Rto,5b MPa (psi) |
Tensile strengtha Rm MPa (psi) |
Ratioa,b,c Rto,5/Rm |
Elongation A f % |
Tensile strengthd Rm MPa (psi) |
|||
| minimum | maximum | minimum | maximum | maximum | minimum | minimum | |
| L245R or BR L245N or BN L245Q or BQ L245M or BM |
245 (35 500) |
450 e (65 300) e |
415 (60 200) |
760 (110 200) |
0,93 | f | 415 (60 200) |
| L290R or X42R L290N or X42N L290Q or X42Q L290M or X42M |
290 (42 100) |
495 (71 800) |
415 (60 200) |
760 (110 200) |
0,93 | f | 415 (60 200) |
| L320N or X46N L320Q or X46Q L320M or X46M |
320 (46 400) |
525 (76 100) |
435 (63 100) |
760 (110 200) |
0,93 | f | 435 (63 100) |
| L360N or X52N L360Q or X52Q L360M or X52M |
360 (52 200) |
530 (76 900) |
460 (66 700) |
760 (110 200) |
0,93 | f | 460 (66 700) |
| L390N or X56N L390Q or X56Q L390M or X56M |
390 (56 600) |
545 (79 000) |
490 (71 100) |
760 (110 200) |
0,93 | f | 490 (71 100) |
| L415N or X60N L415Q or X60Q L415M or X60M |
415 (60 200) |
565 (81 900) |
520 (75 400) |
760 (110 200) |
0,93 | f | 520 (75 400) |
| L450Q or X65Q L450M or X65M |
450 (65 300) |
600 (87 000) |
535 (77 600) |
760 (110 200) |
0,93 | f | 535 (77 600) |
| L485Q or X70Q L485M or X70M |
485 (70 300) |
635 (92 100) |
570 (82 700) |
760 (110 200) |
0,93 | f | 570 (82 700) |
| L555Q or X80Q L555M or X80M |
555 (80 500) |
705 (102 300) |
625 (90 600) |
825 (119 700) |
0,93 | f | 625 (90 600) |
| L625M or X90M | 625 (90 600) |
775 (112 400) |
695 (100 800) |
915 (132 700) |
0,95 | f | 695 (100 800) |
| L690M or X100M | 690 (100 100) |
840 (121 800) |
760 (110 200) |
990 (143 600) |
0,97 g | f | 760 (110 200) |
| L830M or X120M | 830 (120 400) |
1 050 (152 300) |
915 (132 700) |
1 145 (166 100) |
0,99 g | f | 915 (132 700) |
Material Grades
| High Temperature Seamless Pipe | ASTM A106 Gr. B/C, API 5L Gr. B, ASTM A53 Gr. B |
| Heat Exchanger Seamless Tube | ASTM A179 |
| Low Temperature Seamless Pipe | ASTM A333 Gr. 3/6 |
| Low Temperature Seamless Tube | ASTM A334 Gr. 6 |
| High Yield Seamless Pipe | API 5L Gr. X42/X46/X52/X56/X60/X65/X70/X80 PSL-1/PSL-2 |
| High Yield Seamless Pipe | ISO 3183 Gr. L245, L290, L320, L360, L390, L415, L450, L485 |
| Atmospheric & Low Temp EFW Pipes | ASTM A671 Gr. CC60/CC65/CC70 |
| High Pressure & Moderate Temp EFW Pipes | ASTM A672 Gr. B60/B65/B70/C55/C60/C65/C70 |
| High Yield ERW/SAW Pipe | API 5L Gr. X42/X46/X52/X56/X60/X65/X70/X80 PSL-1/PSL-2 |
| High Yield ERW/SAW Pipe | ISO 3183 Gr. L245, L290, L320, L360, L390, L415, L450, L485 |
API 5L X52 PSL1 Pipe
API 5L X52 Pipes are specially designed to handle the transportation of oil and gas under high pressure and temperature conditions. The production of these pipes places a strong emphasis on toughness and impact resistance, particularly for sour service and other demanding applications. Due to the high levels of sulphur present in sour wells, these pipes are particularly susceptible to stress corrosion. To mitigate this, manufacturers often apply anti-corrosion coatings such as oil, varnish, or black paint to the surface of the pipes. This additional layer of protection helps to enhance the corrosion resistance of the pipes, ensuring their longevity and reliability in harsh environments.
API 5L X52 is a specification for pipeline steel pipes that are used in the transportation of oil and gas. The API 5L X52 specification covers both seamless and welded pipes and includes requirements for chemical composition, mechanical properties and dimensions such as pipe wall thickness, outer diameter and pipe schedule. The pipe is known for its high yield strength of 52,000 psi and is suitable for high-pressure applications. It has an equivalent ASTM specification A53 Grade B and EN10208 L360MB or GB/T9711 L360 and isO3183 L360 as grade.
API 5L X52 Pipe Supply Ranges and Sizes
| API SPECS | 5L Gr. X52 or L360 |
| Standard | API 5L, isO 3183 |
| Grade | X52 or L360 (Suffix letter N, Q, M, R) |
| Type Seamless Steel Pipe | 21.3mm – 610mm, 1/2” – 24” |
| Welded ERW Pipe | 21.3mm – 508mm, 1/2” – 20” |
| LSAW and SSAW Pipe | 406mm – 2500mm, 16” – 100” |
| Pipe Wall Thickness Schedule | SCH 10, SCH 20, SCH 30, SCH STD, SCH40, SCH60, SCH XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, SCH XXS of the standard thickness |
| Range of Length | SRL, DRL, 5 meter to 14 meter |
| Fixed Length | 5.8 Meter, 6.0 Meters (20FT), 11.8 Meters, 12.0 Meters (40FT) |
| Product Specification Level | PSL1, PSL2, Sour |
| Ends | Plain, Beveled Ends, Threaded Ends |
| Available Coating | Black Painting, Varnished, Anti-Rust Oil, FBE, 3PE/3LPE, 3PP, Galvanized |
| Additonal Testing | NACE MR0175, NACE TM0177, NACE TM0284, HIC Test, SSC Test, H2 Service, Wet H2S Service, SOUR Service, IBR, etc. |
| Certification: | Completer Traceability EN 10204 3.1 and NABL Accredited Lab Testing. |
API 5L X52 PSL2 Pipe Data Sheet
API5L 45th Edition Specification for Line Pipe
Scope Specified the manufacture of two product levels (PSL1 and PSL2) of seamless and welded steel pipe for the use of a pipeline in the transportation of petroleum and natural gas. For material use in a Sour service application refer to Annex H and for offshore service application refer to Annex J of API5L 45th.Chemical Composition of API 5L X52 PSL1 Pipes with t ≤ 0.984”
| Steel Grade | Mass fraction, % based on heat and product analyses a,g | ||||||
|---|---|---|---|---|---|---|---|
| C | Mn | P | S | V | Nb | Ti | |
| max b | max b | max | max | max | max | max | |
| X52 | 0.28 | 1.4 | 0.3 | 0.3 | d | d | d |
| X52 | 0.26 | 1.4 | 0.3 | 0.3 | d | d | d |
| a. Cu ≤ = 0.50% Ni; ≤ 0.50%; Cr ≤ 0.50%; and Mo ≤ 0.15%, b. For each reduction of 0.01% below the specified maximum concentration for carbon, an increase of 0.05% above the specified maximum concentration for Mn is permissible, up to a maximum of 1.65% for grades ≥ L245 or B, but ≤ L360 or X52; up to a maximum of 1.75% for grades > L360 or X52, but < L485 or X70; and up to a maximum of 2.00% for grade L485 or X70., c. Unless otherwise agreed NB + V ≤ 0.06%, d. Nb + V + TI ≤ 0.15%, e. Unless otherwise agreed., f. Unless otherwise agreed, NB + V = Ti ≤ 0.15%, g. No deliberate addition of B is permitted and the residual B ≤ 0.001% |
|||||||
Mechanical Properties Tensile and Yield of API 5L X52 PSL1 Pipe
| Pipe Grade | Tensile Properties – Pipe Body of SMLS and Welded Pipes PSL 1 | Seam of Welded Pipe | ||
|---|---|---|---|---|
| Yield Strength a | Tensile Strength a | Elongation | Tensile Strength b | |
| Rt0,5 PSI Min | Rm PSI Min | (in 2in Af % min) | Rm PSI Min | |
| X52 | 52,200 | 66,700 | c | 66,700 |
| a. For intermediate grade, the difference between the specified minimum tensile strength and the specified minimum yield for the pipe body shall be as given for the next higher grade. | ||||
| b. For the intermediate grades, the specified minimum tensile strength for the weld seam shall be the same as determined for the body using foot note a. | ||||
| c. The specified minimum elongation, Af, expressed in percent and rounded to the nearest percent, shall be determined using the following equation: | ||||
| Where C is 1 940 for calculation using Si units and 625 000 for calculation using USC units | ||||
| Axc is the applicable tensile test piece cross-sectional area, expressed in square millimeters (square inches) , as follows | ||||
| – For circular cross-section test pieces, 130mm2 (0.20 in2) for 12.7 mm (0.500 in) and 8.9 mm (.350 in) diameter test pieces; and 65 mm2 (0.10 in2) for 6.4 mm (0.250in) diameter test pieces. | ||||
| – For full-section test pieces, the lesser of a) 485 mm2 (0.75 in2) and b) the cross-sectional area of the test piece, derived using the specified outside diameter and the specified wall thickness of the pipe, rounded to the nearest 10 mm2 (0.10in2) | ||||
| – For strip test pieces, the lesser of a) 485 mm2 (0.75 in2) and b) the cross-sectional area of the test piece, derived using the specified width of the test piece and the specified wall thickness of the pipe, rounded to the nearest 10 mm2 (0.10in2) | ||||
| U is the specified minimum tensile strength, expressed in megapascals (pounds per square inch) | ||||
• 0.50% maximum for copper, 0.50% maximum for nickel, 0.50% maximum for chromium, and 0.15% maximum for molybdenum.
• For each reduction of 0.01% below the specified maximum concetration for carbon, an increase of 0.05% above the specified maximum concentration for manganese is permissible, up to a maximum of 1.65%
• Unless otherwise agreed, the sum of the niobium and vanadium contents shall be ≤0.06%.
• The sum of the niobium ,vanadium and titanium concentratons shall be ≤0.06%.
• Unless otheriwse agreed.
• Unless otherwise agreed, the sum of niobium, vanadium and titanium concentrations shall be ≤ 0.15%
API 5L X52 PSL2 Pipe
Grade X52 indicates 52000 PSI minimum yield strength and 66000 PSI minimum ultimate tensile strength.API 5L X52 pipe also called L360 Pipe, X52 (L360) named by minimum yield strength 52 Ksi (360 Mpa). It’s a medium grade in API 5L and isO 3183 specifications, used for oil and gas pipeline transmissions.
Specifications for API 5L adhere to the International Organization for Standardization isO 3183, which standardizes pipeline transportation systems within the materials, equipment and offshore structures for petroleum, petrochemical, and natural gas industries.
API 5L X52 Pipes are specially designed to handle the transportation of oil and gas under high pressure and temperature conditions. The production of these pipes places a strong emphasis on toughness and impact resistance, particularly for sour service and other demanding applications. Due to the high levels of sulphur present in sour wells, these pipes are particularly susceptible to stress corrosion. To mitigate this, manufacturers often apply anti-corrosion coatings such as oil, varnish, or black paint to the surface of the pipes. This additional layer of protection helps to enhance the corrosion resistance of the pipes, ensuring their longevity and reliability in harsh environments.
API 5L X52 Pipe Supply Ranges and Sizes
| API SPECS | 5L Gr. X52 or L360 |
| Standard | API 5L, isO 3183 |
| Grade | X52 or L360 (Suffix letter N, Q, M, R) |
| Type Seamless Steel Pipe | 21.3mm – 610mm, 1/2” – 24” |
| Welded ERW Pipe | 21.3mm – 508mm, 1/2” – 20” |
| LSAW and SSAW Pipe | 406mm – 2500mm, 16” – 100” |
| Pipe Wall Thickness Schedule | SCH 10, SCH 20, SCH 30, SCH STD, SCH40, SCH60, SCH XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, SCH XXS of the standard thickness |
| Range of Length | SRL, DRL, 5 meter to 14 meter |
| Fixed Length | 5.8 Meter, 6.0 Meters (20FT), 11.8 Meters, 12.0 Meters (40FT) |
| Product Specification Level | PSL1, PSL2, Sour |
| Ends | Plain, Beveled Ends, Threaded Ends |
| Available Coating | Black Painting, Varnished, Anti-Rust Oil, FBE, 3PE/3LPE, 3PP, Galvanized |
| Additonal Testing | NACE MR0175, NACE TM0177, NACE TM0284, HIC Test, SSC Test, H2 Service, Wet H2S Service, SOUR Service, IBR, etc. |
| Certification: | Completer Traceability EN 10204 3.1 and NABL Accredited Lab Testing. |
API 5L X52 PSL2 Pipe Data Sheet
API5L 45th Edition Specification for Line Pipe
Scope Specified the manufacture of two product levels (PSL1 and PSL2) of seamless and welded steel pipe for the use of a pipeline in the transportation of petroleum and natural gas. For material use in a Sour service application refer to Annex H and for offshore service application refer to Annex J of API5L 45th.Chemical Composition of API 5L X52 PSL2 Pipes with t ≤ 0.984”
| Steel Grade | Mass fraction, % based on heat and product analyses | Carbon Equiv a | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C | Si | Mn | P | S | V | Nb | Ti | Other | CE IIW | CE Pcm | |||||||||||
| max b | max | max b | max | max | max | max | max | max | max | ||||||||||||
| X52N | 0.24 | 0.45 | 1.4 | 0.025 | 0.015 | 0.1 | 0.05 | 0.04 | d,e,l | 0.43 | 0.25 | ||||||||||
| X52Q | 0.18 | 0.45 | 1.5 | 0.025 | 0.015 | 0.05 | 0.05 | 0.04 | e,l | 0.43 | 0.25 | ||||||||||
| X52M | 0.22 | 0.45 | 1.4 | 0.025 | 0.015 | d | d | d | e,l | 0.43 | 0.25 | ||||||||||
| a. SMLS t>0.787”, CE limits shall be as agreed. The CEIIW limits applied fi C > 0.12% and the CEPcm limits apply if C ≤ 0.12%, b. For each reduction of 0.01% below the specified maximum for C, an increase of 0.05% above the specified maximum for Mn is permissible, up to a maximum of 1.65% for grades ≥ L245 or B, but ≤ L360 or X52; up to a maximum of 1.75% for grades > L360 or X52, but < L485 or X70; up to a maximum of 2.00% for grades ≥ L485 or X70, but ≤ L555 or X80; and up to a maximum of 2.20% for grades > L555 or X80., c. Unless otherwise agreed Nb = V ≤ 0.06%, d. Nb = V = Ti ≤ 0.15%, e. Unless otherwise agreed, Cu ≤ 0.50%; Ni ≤ 0.30% Cr ≤ 0.30% and Mo ≤ 0.15%, f. Unless otherwise agreed, g. Unless otherwise agreed, Nb + V + Ti ≤ 0.15%, h. Unless otherwise agreed, Cu ≤ 0.50% Ni ≤ 0.50% Cr ≤ 0.50% and MO ≤ 0.50%, i. Unless otherwise agreed, Cu ≤ 0.50% Ni ≤ 1.00% Cr ≤ 0.50% and MO ≤ 0.50%, j. B ≤ 0.004%, k. Unless otherwise agreed, Cu ≤ 0.50% Ni ≤ 1.00% Cr ≤ 0.55% and MO ≤ 0.80%, l. For all PSL 2 pipe grades except those grades with footnotes j noted, the following applies. Unless otherwise agreed no intentional addition of B is permitted and residual B ≤ 0.001%. |
|||||||||||||||||||||
Mechanical Properties Tensile and Yield of API 5L X52 PSL2 Pipe
| Pipe Grade | Tensile Properties – Pipe Body of SMLS and Welded Pipes PSL 2 | Seam of Welded Pipe | |||||
|---|---|---|---|---|---|---|---|
| Yield Strength a | Tensile Strength a | Ratio a,c | Elongation | Tensile Strength d | |||
| Rt0,5 PSI Min | Rm PSI Min | R10,5IRm | (in 2in) | Rm (psi) | |||
| Af % | |||||||
| Minimum | Maximum | Minimum | Maximum | Maximum | Minimum | Minimum | |
| X52N,X52Q,X52M | 52,200 | 76,900 | 66,700 | 110,200 | 0.93 | f | 66,700 |
| a. For intermediate grade, refer to the full API5L specification. | |||||||
| b. for grades > X90 refer to the full API5L specification. | |||||||
| c. This limit applies for pies with D> 12.750 in | |||||||
| d. For intermediate grades, the specified minimum tensile strength for the weld seam shall be the same value as was determined for the pipe body using foot a. | |||||||
| e. for pipe requiring longitudinal testing, the maximum yield strength shall be ≤ 71,800 psi | |||||||
| f. The specified minimum elongation, Af, expressed in percent and rounded to the nearest percent, shall be determined using the following equation: | |||||||
| Where C is 1 940 for calculation using Si units and 625 000 for calculation using USC units | |||||||
| Axc is the applicable tensile test piece cross-sectional area, expressed in square millimeters (square inches) , as follows | |||||||
| – For circular cross-section test pieces, 130mm2 (0.20 in2) for 12.7 mm (0.500 in) and 8.9 mm (.350 in) diameter test pieces; and 65 mm2 (0.10 in2) for 6.4 mm (0.250in) diameter test pieces. | |||||||
| – For full-section test pieces, the lesser of a) 485 mm2 (0.75 in2) and b) the cross-sectional area of the test piece, derived using the specified outside diameter and the specified wall thickness of the pipe, rounded to the nearest 10 mm2 (0.10in2) | |||||||
| – For strip test pieces, the lesser of a) 485 mm2 (0.75 in2) and b) the cross-sectional area of the test piece, derived using the specified width of the test piece and the specified wall thickness of the pipe, rounded to the nearest 10 mm2 (0.10in2) | |||||||
| U is the specified minimum tensile strength, expressed in megapascals (pounds per square inch | |||||||
| g. Lower values fo R10,5IRm may be specified by agreement | |||||||
| h. for grades > x90 refer to the full API5L specification. | |||||||
API 5L X56 PSL1 Pipe
Specification for line pipe API SPEC 5L (-09): specifies the requirements for the manufacture of two product specification levels (PSL1 and PSL2) of seamless and welded steel pipes for use in pipeline transportation systems in the petroleum and natural gas industries.
Chemical Composition of API 5L X56 Pipe:
| Mass fraction, based upon heat and product analysis a | |||||||
| SEAMLESS PIPE | |||||||
| C | Mn | P | S | V | Nb | Ti | |
| maxb | max.b | min. | max. | max. | max. | max. | max. |
| 0.28 | 1.40 | - | 0.030 | 0.030 | d | d | d |
| WELDED PIPE | |||||||
| 0.26 | 1.40 | - | 0.030 | 0.030 | d | d | d |
Mechanical properties of API 5L X56 Pipe
| Y.S | T.S | ELONGATION |
| Mpa(psi) | Mpa(psi) | |
| min | min | min |
| 390(56 600) | 490(71 100) | F |
API 5L X56 PSL2 Pipe
Chemical Composition of API 5L X56 PSL2 Pipe :
| Mass fraction, based upon heat and product analysis % maximum | CARBON EQUIVALENT a | ||||||||||
| % MAXIMUM | |||||||||||
| Cb | Si | Mnb | P | S | V | Nb | Ti | Other | CEIIW | CEPcm | |
| SEAMLESS & WELDED PIPES | |||||||||||
| L320N or X56N | 0.24 | 0.4 | 1.4 | 0.025 | 0.015 | 0.10f | 0.05 | 0.04 | e | 0.43 | 0.25 |
| L320Q or X56Q | 0.18 | 0.45 | 1.5 | 0.025 | 0.015 | 0.07 | 0.05 | 0.04 | e | 0.43 | 0.25 |
| WELDED PIPE | |||||||||||
| L290M OR X52M | 0.22 | 0.45 | 1.4 | 0.025 | 0.015 | d | d | d | e | 0.43 | 0.25 |
Mechanical properties of API 5L X56 PSL2 Pipe
| Y.S | T.S | ELONGATION |
| Mpa(psi) | Mpa(psi) | |
| min | min | min |
| 390(56 600) | 545(79 000) | F |
| Y.S | T.S | ELONGATION |
| Mpa(psi) | Mpa(psi) | |
| min | min | min |
| 390(56 600) | 545(79 000) | F |
Chemical composition for API 5L PSL 2 pipe with t ≤ 25,0 mm (0.984 in)
| Steel grade (steel name) | Mass fraction, based upon heat and product analyses % maximum |
Carbon equivalenta % maximum |
|||||||||
| C b | Si | Mn b | P | S | V | Nb | Ti | Other | CEiiw | CEpcm | |
| Seamless and welded pipes | |||||||||||
| L245R or BR | 0,24 | 0,40 | 1,20 | 0,025 | 0,015 | c | c | 0,04 | e | 0,43 | 0,25 |
| L290R or X42R | 0,24 | 0,40 | 1,20 | 0,025 | 0,015 | 0,06 | 0,05 | 0,04 | e | 0,43 | 0,25 |
| L245N or BN | 0,24 | 0,40 | 1,20 | 0,025 | 0,015 | c | c | 0,04 | e | 0,43 | 0,25 |
| L290N or X42N | 0,24 | 0,40 | 1,20 | 0,025 | 0,015 | 0,06 | 0,05 | 0,04 | e | 0,43 | 0,25 |
| L320N or X46N | 0,24 | 0,40 | 1,40 | 0,025 | 0,015 | 0,07 | 0,05 | 0,04 | d,e | 0,43 | 0,25 |
| L360N or X52N | 0,24 | 0,45 | 1,40 | 0,025 | 0,015 | 0,10 | 0,05 | 0,04 | d,e | 0,43 | 0,25 |
| L390N or X56N | 0,24 | 0,45 | 1,40 | 0,025 | 0,015 | 0,10f | 0,05 | 0,04 | d,e | 0,43 | 0,25 |
| L415N or X60N | 0,24f | 0,45f | 1,40f | 0,025 | 0,015 | 0,10f | 0,05 | 0,04f | g,h | as agreed | |
| L245Q or BQ | 0,18 | 0,45 | 1,40 | 0,025 | 0,015 | 0,05 | 0,05 | 0,04 | e | 0,43 | 0,25 |
| L290Q or X42Q | 0,18 | 0,45 | 1,40 | 0,025 | 0,015 | 0,05 | 0,05 | 0,04 | e | 0,43 | 0,25 |
| L320Q or X46Q | 0,18 | 0,45 | 1,40 | 0,025 | 0,015 | 0,05 | 0,05 | 0,04 | e | 0,43 | 0,25 |
| L360Q or X52Q | 0,18 | 0,45 | 1,50 | 0,025 | 0,015 | 0,05 | 0,05 | 0,04 | e | 0,43 | 0,25 |
| L390Q or X56Q | 0,18 | 0,45 | 1,50 | 0,025 | 0,015 | 0,07 | 0,05 | 0,04 | d,e | 0,43 | 0,25 |
| L415Q or X60Q | 0,18f | 0,45f | 1,70f | 0,025 | 0,015 | g | g | g | h | 0,43 | 0,25 |
| L450Q or X65Q | 0,18f | 0,45f | 1,70f | 0,025 | 0,015 | g | g | g | h | 0,43 | 0,25 |
| L485Q or X70Q | 0,18f | 0,45f | 1,80f | 0,025 | 0,015 | g | g | g | h | 0,43 | 0,25 |
| L555Q or X80Q | 0,18f | 0,45f | 1,90f | 0,025 | 0,015 | g | g | g | i,j | as agreed | |
| Welded pipe | |||||||||||
| L245M or BM | 0,22 | 0,45 | 1,20 | 0,025 | 0,015 | 0,05 | 0,05 | 0,04 | e | 0,43 | 0,25 |
| L290M or X42M | 0,22 | 0,45 | 1,30 | 0,025 | 0,015 | 0,05 | 0,05 | 0,04 | e | 0,43 | 0,25 |
| L320M or X46M | 0,22 | 0,45 | 1,30 | 0,025 | 0,015 | 0,05 | 0,05 | 0,04 | e | 0,43 | 0,25 |
| L360M or X52M | 0,22 | 0,45 | 1,40 | 0,025 | 0,015 | d | d | d | e | 0,43 | 0,25 |
| L390M or X56M | 0,22 | 0,45 | 1,40 | 0,025 | 0,015 | d | d | d | e | 0,43 | 0,25 |
| L415M or X60M | 0,12f | 0,45f | 1,60f | 0,025 | 0,015 | g | g | g | h | 0,43 | 0,25 |
| L450M or X65M | 0,12f | 0,45f | 1,60f | 0,025 | 0,015 | g | g | g | h | 0,43 | 0,25 |
| L485M or X70M | 0,12f | 0,45f | 1,70f | 0,025 | 0,015 | g | g | g | h | 0,43 | 0,25 |
| L555M or X80M | 0,12f | 0,45f | 1,85f | 0,025 | 0,015 | g | g | g | i | 0,43f | 0,25 |
| L625M or X90M | 0,10 | 0,55f | 2,10f | 0,020 | 0,010 | g | g | g | i | --- | 0,25 |
| L690M or X100M | 0,10 | 0,55f | 2,10f | 0,020 | 0,010 | g | g | g | i,j | 0,25 | |
| L830M or X120M | 0,10 | 0,55f | 2,10f | 0,020 | 0,010 | g | g | g | i,j | 0,25 | |
API 5L X60 PSL1 Pipe
Chemical Composition of API 5L X60 PSL1 Pipe:
| Mass fraction, based upon heat and product analysis a | |||||||
| SEAMLESS PIPE | |||||||
| C | Mn | P | S | V | Nb | Ti | |
| maxb | max.b | min. | max. | max. | max. | max. | max. |
| 0.28e | 1.40e | - | 0.030 | 0.030 | f | f | f |
| WELDED PIPE | |||||||
| 0.26e | 1.40e | - | 0.030 | 0.030 | f | f | f |
Mechanical properties API 5L X60 PSL1 Pipe:
| Y.S | T.S | ELONGATION |
| Mpa(psi) | Mpa(psi) | |
| min | min | min |
| 415(60 200) | 520(75 400) | F |
Material Grades
| High Temperature Seamless Pipe | ASTM A106 Gr. B/C, API 5L Gr. B, ASTM A53 Gr. B |
| Heat Exchanger Seamless Tube | ASTM A179 |
| Low Temperature Seamless Pipe | ASTM A333 Gr. 3/6 |
| Low Temperature Seamless Tube | ASTM A334 Gr. 6 |
| High Yield Seamless Pipe | API 5L Gr. X42/X46/X52/X56/X60/X65/X70/X80 PSL-1/PSL-2 |
| High Yield Seamless Pipe | ISO 3183 Gr. L245, L290, L320, L360, L390, L415, L450, L485 |
| Atmospheric & Low Temp EFW Pipes | ASTM A671 Gr. CC60/CC65/CC70 |
| High Pressure & Moderate Temp EFW Pipes | ASTM A672 Gr. B60/B65/B70/C55/C60/C65/C70 |
| High Yield ERW/SAW Pipe | API 5L Gr. X42/X46/X52/X56/X60/X65/X70/X80 PSL-1/PSL-2 |
| High Yield ERW/SAW Pipe | ISO 3183 Gr. L245, L290, L320, L360, L390, L415, L450, L485 |
API 5L X60 PSL2 Pipe
Chemical Composition : API 5L x60 PSL 2 Pipe
| Mass fraction, based upon heat and product analysis % maximum | CARBON EQUIVALENT a | ||||||||||
| % MAXIMUM | |||||||||||
| Cb | Si | Mnb | P | S | V | Nb | Ti | Other | CEIIW | CEPcm | |
| SEAMLESS & WELDED PIPES | |||||||||||
| L320N or X56N | 0.24 | 0.4 | 1.4 | 0.025 | 0.015 | 0.10f | 0.05 | 0.04 | e | 0.43 | 0.25 |
| L320Q or X56Q | 0.18 | 0.45 | 1.5 | 0.025 | 0.015 | 0.07 | 0.05 | 0.04 | e | 0.43 | 0.25 |
| WELDED PIPE | |||||||||||
| L290M OR X52M | 0.22 | 0.45 | 1.4 | 0.025 | 0.015 | d | d | d | e | 0.43 | 0.25 |
Mechanical properties of API 5L x60 PSL 2 Pipe
| Y.S | T.S | ELONGATION |
| Mpa(psi) | Mpa(psi) | |
| min | min | min |
| 390(56 600) | 545(79 000) | F |
| IMPACT TEST | |
| AVG. ABSORBED ENERGY | IND. ABSORBED ENERGY |
| Min.(joules) | Min.(joules) |
| 27 | 20 |
Chemical composition for API 5L PSL 2 pipe with t ≤ 25,0 mm (0.984 in)
| Steel grade (steel name) | Mass fraction, based upon heat and product analyses % maximum |
Carbon equivalenta % maximum |
|||||||||
| C b | Si | Mn b | P | S | V | Nb | Ti | Other | CEiiw | CEpcm | |
| Seamless and welded pipes | |||||||||||
| L245R or BR | 0,24 | 0,40 | 1,20 | 0,025 | 0,015 | c | c | 0,04 | e | 0,43 | 0,25 |
| L290R or X42R | 0,24 | 0,40 | 1,20 | 0,025 | 0,015 | 0,06 | 0,05 | 0,04 | e | 0,43 | 0,25 |
| L245N or BN | 0,24 | 0,40 | 1,20 | 0,025 | 0,015 | c | c | 0,04 | e | 0,43 | 0,25 |
| L290N or X42N | 0,24 | 0,40 | 1,20 | 0,025 | 0,015 | 0,06 | 0,05 | 0,04 | e | 0,43 | 0,25 |
| L320N or X46N | 0,24 | 0,40 | 1,40 | 0,025 | 0,015 | 0,07 | 0,05 | 0,04 | d,e | 0,43 | 0,25 |
| L360N or X52N | 0,24 | 0,45 | 1,40 | 0,025 | 0,015 | 0,10 | 0,05 | 0,04 | d,e | 0,43 | 0,25 |
| L390N or X56N | 0,24 | 0,45 | 1,40 | 0,025 | 0,015 | 0,10f | 0,05 | 0,04 | d,e | 0,43 | 0,25 |
| L415N or X60N | 0,24f | 0,45f | 1,40f | 0,025 | 0,015 | 0,10f | 0,05 | 0,04f | g,h | as agreed | |
| L245Q or BQ | 0,18 | 0,45 | 1,40 | 0,025 | 0,015 | 0,05 | 0,05 | 0,04 | e | 0,43 | 0,25 |
| L290Q or X42Q | 0,18 | 0,45 | 1,40 | 0,025 | 0,015 | 0,05 | 0,05 | 0,04 | e | 0,43 | 0,25 |
| L320Q or X46Q | 0,18 | 0,45 | 1,40 | 0,025 | 0,015 | 0,05 | 0,05 | 0,04 | e | 0,43 | 0,25 |
| L360Q or X52Q | 0,18 | 0,45 | 1,50 | 0,025 | 0,015 | 0,05 | 0,05 | 0,04 | e | 0,43 | 0,25 |
| L390Q or X56Q | 0,18 | 0,45 | 1,50 | 0,025 | 0,015 | 0,07 | 0,05 | 0,04 | d,e | 0,43 | 0,25 |
| L415Q or X60Q | 0,18f | 0,45f | 1,70f | 0,025 | 0,015 | g | g | g | h | 0,43 | 0,25 |
| L450Q or X65Q | 0,18f | 0,45f | 1,70f | 0,025 | 0,015 | g | g | g | h | 0,43 | 0,25 |
| L485Q or X70Q | 0,18f | 0,45f | 1,80f | 0,025 | 0,015 | g | g | g | h | 0,43 | 0,25 |
| L555Q or X80Q | 0,18f | 0,45f | 1,90f | 0,025 | 0,015 | g | g | g | i,j | as agreed | |
| Welded pipe | |||||||||||
| L245M or BM | 0,22 | 0,45 | 1,20 | 0,025 | 0,015 | 0,05 | 0,05 | 0,04 | e | 0,43 | 0,25 |
| L290M or X42M | 0,22 | 0,45 | 1,30 | 0,025 | 0,015 | 0,05 | 0,05 | 0,04 | e | 0,43 | 0,25 |
| L320M or X46M | 0,22 | 0,45 | 1,30 | 0,025 | 0,015 | 0,05 | 0,05 | 0,04 | e | 0,43 | 0,25 |
| L360M or X52M | 0,22 | 0,45 | 1,40 | 0,025 | 0,015 | d | d | d | e | 0,43 | 0,25 |
| L390M or X56M | 0,22 | 0,45 | 1,40 | 0,025 | 0,015 | d | d | d | e | 0,43 | 0,25 |
| L415M or X60M | 0,12f | 0,45f | 1,60f | 0,025 | 0,015 | g | g | g | h | 0,43 | 0,25 |
| L450M or X65M | 0,12f | 0,45f | 1,60f | 0,025 | 0,015 | g | g | g | h | 0,43 | 0,25 |
| L485M or X70M | 0,12f | 0,45f | 1,70f | 0,025 | 0,015 | g | g | g | h | 0,43 | 0,25 |
| L555M or X80M | 0,12f | 0,45f | 1,85f | 0,025 | 0,015 | g | g | g | i | 0,43f | 0,25 |
| L625M or X90M | 0,10 | 0,55f | 2,10f | 0,020 | 0,010 | g | g | g | i | --- | 0,25 |
| L690M or X100M | 0,10 | 0,55f | 2,10f | 0,020 | 0,010 | g | g | g | i,j | 0,25 | |
| L830M or X120M | 0,10 | 0,55f | 2,10f | 0,020 | 0,010 | g | g | g | i,j | 0,25 | |
API 5L X65 PSL1 Pipe
Chemical Composition of API 5L X65 PSL1 Pipe:
| Mass fraction, based upon heat and product analysis a | |||||||
| SEAMLESS PIPE | |||||||
| C | Mn | P | S | V | Nb | Ti | |
| maxb | max.b | min. | max. | max. | max. | max. | max. |
| 0.28e | 1.40e | - | 0.030 | 0.030 | f | f | f |
| WELDED PIPE | |||||||
| 0.26 | 1.45e | - | 0.030 | 0.030 | f | f | f |
Mechanical properties API 5L X65 PSL1 Pipe:
| Y.S | T.S | ELONGATION |
| Mpa(psi) | Mpa(psi) | |
| min | min | min |
| 450(65 300) | 535(77 600) | F |
Material Grades
| High Temperature Seamless Pipe | ASTM A106 Gr. B/C, API 5L Gr. B, ASTM A53 Gr. B |
| Heat Exchanger Seamless Tube | ASTM A179 |
| Low Temperature Seamless Pipe | ASTM A333 Gr. 3/6 |
| Low Temperature Seamless Tube | ASTM A334 Gr. 6 |
| High Yield Seamless Pipe | API 5L Gr. X42/X46/X52/X56/X60/X65/X70/X80 PSL-1/PSL-2 |
| High Yield Seamless Pipe | ISO 3183 Gr. L245, L290, L320, L360, L390, L415, L450, L485 |
| Atmospheric & Low Temp EFW Pipes | ASTM A671 Gr. CC60/CC65/CC70 |
| High Pressure & Moderate Temp EFW Pipes | ASTM A672 Gr. B60/B65/B70/C55/C60/C65/C70 |
| High Yield ERW/SAW Pipe | API 5L Gr. X42/X46/X52/X56/X60/X65/X70/X80 PSL-1/PSL-2 |
| High Yield ERW/SAW Pipe | ISO 3183 Gr. L245, L290, L320, L360, L390, L415, L450, L485 |
API 5L X65 PSL2 Pipe
Chemical Composition of API 5L X65 PSL2 Seamless Pipe :
| Mass fraction, based upon heat and product analysis % maximum | CARBON EQUIVALENT a | ||||||||||
| % MAXIMUM | |||||||||||
| Cb | Si | Mnb | P | S | V | Nb | Ti | Other | CEIIW | CEPcm | |
| SEAMLESS & WELDED PIPES | |||||||||||
| L450Q or X65Q | 0.18f | 0.45f | 1.7f | 0.025 | 0.015 | g | g | g | h | 0.43 | 0.25 |
| WELDED Pipe | |||||||||||
| L450M OR X65M | 0.12f | 0.45f | 1.6f | 0.025 | 0.015 | g | g | g | h | 0.43 | 0.25 |
Mechanical properties of API 5L X65 PSL2 Seamless Pipe
| Y.S | T.S | ELONGATION |
| Mpa(psi) | Mpa(psi) | |
| min | min | min |
| 450(65 300) | 600(87 000) | 23% |
| IMPACT TEST | |
| AVG. ABSORBED ENERGY | IND. ABSORBED ENERGY |
| Min.(joules) | Min.(joules) |
| 27 | 20 |
Chemical composition for API 5L PSL 2 pipe with t ≤ 25,0 mm (0.984 in)
| Steel grade (steel name) | Mass fraction, based upon heat and product analyses % maximum |
Carbon equivalenta % maximum |
|||||||||
| C b | Si | Mn b | P | S | V | Nb | Ti | Other | CEiiw | CEpcm | |
| Seamless and welded pipes | |||||||||||
| L245R or BR | 0,24 | 0,40 | 1,20 | 0,025 | 0,015 | c | c | 0,04 | e | 0,43 | 0,25 |
| L290R or X42R | 0,24 | 0,40 | 1,20 | 0,025 | 0,015 | 0,06 | 0,05 | 0,04 | e | 0,43 | 0,25 |
| L245N or BN | 0,24 | 0,40 | 1,20 | 0,025 | 0,015 | c | c | 0,04 | e | 0,43 | 0,25 |
| L290N or X42N | 0,24 | 0,40 | 1,20 | 0,025 | 0,015 | 0,06 | 0,05 | 0,04 | e | 0,43 | 0,25 |
| L320N or X46N | 0,24 | 0,40 | 1,40 | 0,025 | 0,015 | 0,07 | 0,05 | 0,04 | d,e | 0,43 | 0,25 |
| L360N or X52N | 0,24 | 0,45 | 1,40 | 0,025 | 0,015 | 0,10 | 0,05 | 0,04 | d,e | 0,43 | 0,25 |
| L390N or X56N | 0,24 | 0,45 | 1,40 | 0,025 | 0,015 | 0,10f | 0,05 | 0,04 | d,e | 0,43 | 0,25 |
| L415N or X60N | 0,24f | 0,45f | 1,40f | 0,025 | 0,015 | 0,10f | 0,05 | 0,04f | g,h | as agreed | |
| L245Q or BQ | 0,18 | 0,45 | 1,40 | 0,025 | 0,015 | 0,05 | 0,05 | 0,04 | e | 0,43 | 0,25 |
| L290Q or X42Q | 0,18 | 0,45 | 1,40 | 0,025 | 0,015 | 0,05 | 0,05 | 0,04 | e | 0,43 | 0,25 |
| L320Q or X46Q | 0,18 | 0,45 | 1,40 | 0,025 | 0,015 | 0,05 | 0,05 | 0,04 | e | 0,43 | 0,25 |
| L360Q or X52Q | 0,18 | 0,45 | 1,50 | 0,025 | 0,015 | 0,05 | 0,05 | 0,04 | e | 0,43 | 0,25 |
| L390Q or X56Q | 0,18 | 0,45 | 1,50 | 0,025 | 0,015 | 0,07 | 0,05 | 0,04 | d,e | 0,43 | 0,25 |
| L415Q or X60Q | 0,18f | 0,45f | 1,70f | 0,025 | 0,015 | g | g | g | h | 0,43 | 0,25 |
| L450Q or X65Q | 0,18f | 0,45f | 1,70f | 0,025 | 0,015 | g | g | g | h | 0,43 | 0,25 |
| L485Q or X70Q | 0,18f | 0,45f | 1,80f | 0,025 | 0,015 | g | g | g | h | 0,43 | 0,25 |
| L555Q or X80Q | 0,18f | 0,45f | 1,90f | 0,025 | 0,015 | g | g | g | i,j | as agreed | |
| Welded pipe | |||||||||||
| L245M or BM | 0,22 | 0,45 | 1,20 | 0,025 | 0,015 | 0,05 | 0,05 | 0,04 | e | 0,43 | 0,25 |
| L290M or X42M | 0,22 | 0,45 | 1,30 | 0,025 | 0,015 | 0,05 | 0,05 | 0,04 | e | 0,43 | 0,25 |
| L320M or X46M | 0,22 | 0,45 | 1,30 | 0,025 | 0,015 | 0,05 | 0,05 | 0,04 | e | 0,43 | 0,25 |
| L360M or X52M | 0,22 | 0,45 | 1,40 | 0,025 | 0,015 | d | d | d | e | 0,43 | 0,25 |
| L390M or X56M | 0,22 | 0,45 | 1,40 | 0,025 | 0,015 | d | d | d | e | 0,43 | 0,25 |
| L415M or X60M | 0,12f | 0,45f | 1,60f | 0,025 | 0,015 | g | g | g | h | 0,43 | 0,25 |
| L450M or X65M | 0,12f | 0,45f | 1,60f | 0,025 | 0,015 | g | g | g | h | 0,43 | 0,25 |
| L485M or X70M | 0,12f | 0,45f | 1,70f | 0,025 | 0,015 | g | g | g | h | 0,43 | 0,25 |
| L555M or X80M | 0,12f | 0,45f | 1,85f | 0,025 | 0,015 | g | g | g | i | 0,43f | 0,25 |
| L625M or X90M | 0,10 | 0,55f | 2,10f | 0,020 | 0,010 | g | g | g | i | --- | 0,25 |
| L690M or X100M | 0,10 | 0,55f | 2,10f | 0,020 | 0,010 | g | g | g | i,j | 0,25 | |
| L830M or X120M | 0,10 | 0,55f | 2,10f | 0,020 | 0,010 | g | g | g | i,j | 0,25 |
API 5L X70 PSL1 Pipe
| Mass fraction, based upon heat and product analysis a | |||||||
| SEAMLESS PIPE | |||||||
| C | Mn | P | S | V | Nb | Ti | |
| maxb | max.b | min. | max. | max. | max. | max. | max. |
| 0.28e | 1.40e | - | 0.030 | 0.030 | f | f | f |
| WELDED PIPE | |||||||
| 0.26e | 1.65e | - | 0.030 | 0.030 | f | f | f |
Mechanical properties API 5L X70 PSL1 Pipe:
| Y.S | T.S | ELONGATION |
| Mpa(psi) | Mpa(psi) | |
| min | min | min |
| 485(70 300) | 570(82 700) | F |
Material Grades
| High Temperature Seamless Pipe | ASTM A106 Gr. B/C, API 5L Gr. B, ASTM A53 Gr. B |
| Heat Exchanger Seamless Tube | ASTM A179 |
| Low Temperature Seamless Pipe | ASTM A333 Gr. 3/6 |
| Low Temperature Seamless Tube | ASTM A334 Gr. 6 |
| High Yield Seamless Pipe | API 5L Gr. X42/X46/X52/X56/X60/X65/X70/X80 PSL-1/PSL-2 |
| High Yield Seamless Pipe | ISO 3183 Gr. L245, L290, L320, L360, L390, L415, L450, L485 |
| Atmospheric & Low Temp EFW Pipes | ASTM A671 Gr. CC60/CC65/CC70 |
| High Pressure & Moderate Temp EFW Pipes | ASTM A672 Gr. B60/B65/B70/C55/C60/C65/C70 |
| High Yield ERW/SAW Pipe | API 5L Gr. X42/X46/X52/X56/X60/X65/X70/X80 PSL-1/PSL-2 |
| High Yield ERW/SAW Pipe | ISO 3183 Gr. L245, L290, L320, L360, L390, L415, L450, L485 |
API 5L X70 PSL2 Pipe
Carbon Steel is used in the most critical engineering applications and also in certain applications in the automotive sector. In addition, some of the value-added Carbon Steel products include steel for LPG cylinders, API grade, corrosion resistant steel, critical structural application steel, boiler quality, auto grades, precision tubes and medium/high carbon grades, among others. Specification for line pipe API SPEC 5L (-09): specifies the requirements for the manufacture of two product specification levels (PSL1 and PSL2) of seamless and welded steel pipes for use in pipeline transportation systems in the petroleum and natural gas industries.
Chemical Composition of API 5L X70 PSL2 Pipe :
| Mass fraction, based upon heat and product analysis % maximum | CARBON EQUIVALENT a | ||||||||||
| % MAXIMUM | |||||||||||
| Cb | Si | Mnb | P | S | V | Nb | Ti | Other | CEIIW | CEPcm | |
| SEAMLESS & WELDED PIPES | |||||||||||
| L485Q or X70Q | 0.18f | 0.45f | 1.8f | 0.025 | 0.015 | g | g | g | h | 0.43 | 0.25 |
| WELDED PIPE | |||||||||||
| L485M OR X70M | 0.12f | 0.45f | 1.7f | 0.025 | 0.015 | g | g | g | h | 0.43f | 0.25 |
Mechanical properties of API 5L X70 PSL2 Seamless Pipe
| Y.S | T.S | ELONGATION |
| Mpa(psi) | Mpa(psi) | |
| min | min | min |
| 485(70 300) | 635(92 100) | F |
| IMPACT TEST | |
| AVG. ABSORBED ENERGY | IND. ABSORBED ENERGY |
| Min.(joules) | Min.(joules) |
| 27 | 20 |
