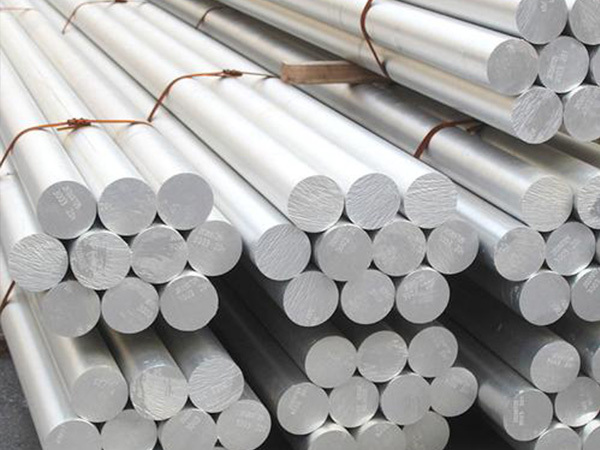

Aluminum Round Bar
Aluminum steel round bars have remarkable corrosion resistance in phosphoric acid, nitric acid, chlorides, and sulfuric acid conditions. When exposed to liquid nitrogen, which is highly noticeable and in high demand commercially, aluminum 6061 square bars maintain their shape. Aluminum 6082 Flat Bars with low sulfur content can be provided by manufacturers utilizing ladle-refining procedures for applications needing the highest degree of ductility. There are various alloys of aluminum round bar available, offering varying degrees of machinability, corrosion resistance, and weldability. These products are widely used in automotive parts like wheel hubs, cylinder heads, pistons, manifolds, water pump casings, cylinder heads, and brake assemblies.
Table of Content
- >>Aluminium 2014 T6 Bars
- >>Aluminium 2017 Round Bars
- >>Aluminium 2024 Round Bars
- >>Aluminium 5052 Round Bars
- >>Aluminium 5083 Round Bars
- >>Aluminium 6061 Round Bars
- >>Aluminium 6063 Round Bars
- >>Aluminium 6061 T6 Round Bar
- >>Aluminium 6101 T6 Round Bar
- >>Aluminium 6351 T6 Round Bar
- >>Aluminium 6082 T6 Round Bar
- >>Aluminium 7075 T6 Round Bar
- >>Aluminium Bronze AMS 4640 Round Bars
- >>Aluminium HE-9 Round Bars
- >>Aluminium HE-15 Round Bars
- >>Aluminium HE-20 Round Bars
- >>Aluminium HE-30 Round Bars
ASTM B211 Aluminium Round Bars Specification
Dimensions : ASTM, ASME, AMS
Specifications : ASTM B221, B211, B565, B316, AMS 4121 2014
Temper : O
Size : 1/4” Dia – 16” Dia
Form : Square , Round , Hex , Flat, Wire In Black & Bright Finish
Length : Random, Fix & Cut Length
Finish : Bright, Polish & Black
Aluminium Alloy Round Bars Standard Specification
ASTM B211/ASME SB211 - Specification for Aluminum and Aluminum-Alloy Rolled or Cold Finished Bar, Rod
ASTM B221/ASME SB221 - Specification for Aluminum and Aluminum-Alloy Extruded Bars, Rods
ASTM B565/ASME SB565 - Test Method for Shear Testing of Aluminum and Aluminum-Alloy Rivets and Cold-Heading Rods
ASTM B316/ASME SB316 - Standard Specification for Aluminum and Aluminum-Alloy Rivet and Cold-Heading bars and Rods
AMS 4102/ISO Al99.0Cu - Standard Specification for Aluminum and Aluminum-Alloy Cold / Hot Rolled Bars, Rods
Standard Specification of Aluminium Round Bar
| Specification | Alloy | Temper | Company |
| Europe | |||
| EN 2089/2395 | 2017 | T6(T62)/T4(T42) | |
| EN 2087/2088 | 2017 clad | T6(T62)/T4(T42) | |
| France | |||
| AIR 9048.010/.030/ | 2017 | F(T42)/F(T62)/T4/ | |
| .020/.040/.050 | 2017 | T6/T451 | |
| AIR 9048.060/.080/.070/.090 | 2017 clad | F(T42)/F(T62)/T4/T6 | |
| Germany | |||
| W.-Nr. 3.1254 | 2017 | T4, T6 | |
| W.-Nr. 3.1354 | 2024 | O(T42), T3 | |
| United Kingdom | |||
| BS L156/157/158*/159* | 2017 | ||
| 158*/159* | 2017 clad | (T42)(T62) | BAE Systems |
| BS L163/164/165 | 2017 clad | T3/F(T42), T4/T6 | |
| BS L166*/167* | 2017 clad | F(T42), T4/T6 | |
| USA | |||
| AMS QQ-A-250/3 | 2017 clad | O, T4, T6 | |
Weight Chart of Aluminium Round Bar
| Product | Diameter | Weight |
| 2017 Aluminium Round Bar | 6 mm | 0,076 Kg/m |
| 2017 Aluminium Round Bar | 7 mm | 0,104 Kg/m |
| 2017 Aluminium Round Bar | 8 mm | 0,136 Kg/m |
| 2017 Aluminium Round Bar | 9 mm | 0,172 Kg/m |
| 2017 Aluminium Round Bar | 9,5 mm | 0,191 Kg/m |
| 2017 Aluminium Round Bar | 10 mm | 0,212 Kg/m |
| 2017 Aluminium Round Bar | 11 mm | 0,257 Kg/m |
| 2017 Aluminium Round Bar | 12 mm | 0,305 Kg/m |
| 2017 Aluminium Round Bar | 12,5 mm | 0,331 Kg/m |
| 2017 Aluminium Round Bar | 13 mm | 0,358 Kg/m |
| 2017 Aluminium Round Bar | 14 mm | 0,416 Kg/m |
| 2017 Aluminium Round Bar | 16 mm | 0,543 Kg/m |
| 2017 Aluminium Round Bar | 16,5 mm | 0,577 Kg/m |
| 2017 Aluminium Round Bar | 18 mm | 0,687 Kg/m |
| 2017 Aluminium Round Bar | 19 mm | 0,766 Kg/m |
| 2017 Aluminium Round Bar | 20 mm | 0,848 Kg/m |
| 2017 Aluminium Round Bar | 22 mm | 1,026 Kg/m |
| 2017 Aluminium Round Bar | 25 mm | 1,325 Kg/m |
| 2017 Aluminium Round Bar | 28 mm | 1,663 Kg/m |
| 2017 Aluminium Round Bar | 30 mm | 1,909 Kg/m |
| 2017 Aluminium Round Bar | 31 mm | 2,038 Kg/m |
| 2017 Aluminium Round Bar | 32 mm | 2,171 Kg/m |
| 2017 Aluminium Round Bar | 35 mm | 2,598 Kg/m |
| 2017 Aluminium Round Bar | 38 mm | 3,062 Kg/m |
| 2017 Aluminium Round Bar | 40 mm | 3,393 Kg/m |
| 2017 Aluminium Round Bar | 45 mm | 4,294 Kg/m |
| 2017 Aluminium Round Bar | 50 mm | 5,301 Kg/m |
| 2017 Aluminium Round Bar | 55 mm | 6,415 Kg/m |
| 2017 Aluminium Round Bar | 60 mm | 7,634 Kg/m |
| 2017 Aluminium Round Bar | 65 mm | 8,959 Kg/m |
| 2017 Aluminium Round Bar | 70 mm | 10,391 Kg/m |
| 2017 Aluminium Round Bar | 75 mm | 11,928 Kg/m |
| 2017 Aluminium Round Bar | 80 mm | 13,572 Kg/m |
| 2017 Aluminium Round Bar | 90 mm | 17,177 Kg/m |
| 2017 Aluminium Round Bar | 100 mm | 21,206 Kg/m |
| 2017 Aluminium Round Bar | 105 mm | 23,379 Kg/m |
| 2017 Aluminium Round Bar | 110 mm | 25,659 Kg/m |
| 2017 Aluminium Round Bar | 120 mm | 30,536 Kg/m |
| 2017 Aluminium Round Bar | 127 mm | 34,203 Kg/m |
| 2017 Aluminium Round Bar | 130 mm | 35,838 Kg/m |
| 2017 Aluminium Round Bar | 140 mm | 41,563 Kg/m |
| 2017 Aluminium Round Bar | 150 mm | 47,713 Kg/m |
| 2017 Aluminium Round Bar | 180 mm | 68,707 Kg/m |
| 2017 Aluminium Round Bar | 200 mm | 84,823 Kg/m |
Aluminium 2014 T6 Bars
Aluminium 2014 T6 Bar is a relatively soft, durable, lightweight, ductile, and malleable metal with appearance ranging from silvery to dull gray, depending on the surface roughness. Aluminium 2014 T6 Bars is nonmagnetic and does not easily ignite.Aluminium 2014 T6 Rods are vital to the aerospace industry and important in transportation and structures, such as building facades and window frames. We are also a leading suppliers of Aluminum Bronze AMS 4640 Round Bars, Aluminium 7075 T6 Round Bar, Aluminium 6082 T6 Round Bar, etc.
Aluminium 2014 UNS A92014 Round Bars Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS |
| Aluminium 2014 T6 | 3.1255 / 3.1254 | A92014 |
ASTM B211 Aluminium 2014 T6 Round Bars Specification
Dimensions : ASTM, ASME, AMS
Specifications : ASTM B211 /ASME SB211 , AMS 4121
Alloy : 2014 - T6
Size : 1/4” Dia – 16” Dia
Form : Square , Round , Hex , Flat, Wire In Black & Bright Finish
Length : Random, Fix & Cut Length
Finish : Bright, Polish & Black
Aluminium 2014 T6 Round Bars Chemical Composition
| Element | % Present |
| Si | 0.50 - 0.90 |
| Fe | 0.0 - 0.50 |
| Cu | 3.90 - 5.00 |
| Zn | 0.0 - 0.25 |
| Mn | 0.40 - 1.20 |
| Mg | 0.20 - 0.80 |
| Ti | 0.0 - 0.15 |
| Cr | 0.0 - 0.10 |
| Ni | 0.0 - 0.10 |
| Ti+Zr | 0.0 - 0.20 |
| Al | Balance |
| Others (Total) | 0.0 - 0.15 |
| Other (Each) | 0.0 - 0.05 |
Weight Chart of 2014 T6 Aluminium Round Bar
| Product | Diameter | Weight |
| 2014 T6 Aluminium Round Bar | 6 mm | 0,076 Kg/m |
| 2014 T6 Aluminium Round Bar | 7 mm | 0,104 Kg/m |
| 2014 T6 Aluminium Round Bar | 8 mm | 0,136 Kg/m |
| 2014 T6 Aluminium Round Bar | 9 mm | 0,172 Kg/m |
| 2014 T6 Aluminium Round Bar | 9,5 mm | 0,191 Kg/m |
| 2014 T6 Aluminium Round Bar | 10 mm | 0,212 Kg/m |
| 2014 T6 Aluminium Round Bar | 11 mm | 0,257 Kg/m |
| 2014 T6 Aluminium Round Bar | 12 mm | 0,305 Kg/m |
| 2014 T6 Aluminium Round Bar | 12,5 mm | 0,331 Kg/m |
| 2014 T6 Aluminium Round Bar | 13 mm | 0,358 Kg/m |
| 2014 T6 Aluminium Round Bar | 14 mm | 0,416 Kg/m |
| 2014 T6 Aluminium Round Bar | 16 mm | 0,543 Kg/m |
| 2014 T6 Aluminium Round Bar | 16,5 mm | 0,577 Kg/m |
| 2014 T6 Aluminium Round Bar | 18 mm | 0,687 Kg/m |
| 2014 T6 Aluminium Round Bar | 19 mm | 0,766 Kg/m |
| 2014 T6 Aluminium Round Bar | 20 mm | 0,848 Kg/m |
| 2014 T6 Aluminium Round Bar | 22 mm | 1,026 Kg/m |
| 2014 T6 Aluminium Round Bar | 25 mm | 1,325 Kg/m |
| 2014 T6 Aluminium Round Bar | 28 mm | 1,663 Kg/m |
| 2014 T6 Aluminium Round Bar | 30 mm | 1,909 Kg/m |
| 2014 T6 Aluminium Round Bar | 31 mm | 2,038 Kg/m |
| 2014 T6 Aluminium Round Bar | 32 mm | 2,171 Kg/m |
| 2014 T6 Aluminium Round Bar | 35 mm | 2,598 Kg/m |
| 2014 T6 Aluminium Round Bar | 38 mm | 3,062 Kg/m |
| 2014 T6 Aluminium Round Bar | 40 mm | 3,393 Kg/m |
| 2014 T6 Aluminium Round Bar | 45 mm | 4,294 Kg/m |
| 2014 T6 Aluminium Round Bar | 50 mm | 5,301 Kg/m |
| 2014 T6 Aluminium Round Bar | 55 mm | 6,415 Kg/m |
| 2014 T6 Aluminium Round Bar | 60 mm | 7,634 Kg/m |
| 2014 T6 Aluminium Round Bar | 65 mm | 8,959 Kg/m |
| 2014 T6 Aluminium Round Bar | 70 mm | 10,391 Kg/m |
| 2014 T6 Aluminium Round Bar | 75 mm | 11,928 Kg/m |
| 2014 T6 Aluminium Round Bar | 80 mm | 13,572 Kg/m |
| 2014 T6 Aluminium Round Bar | 90 mm | 17,177 Kg/m |
| 2014 T6 Aluminium Round Bar | 100 mm | 21,206 Kg/m |
| 2014 T6 Aluminium Round Bar | 105 mm | 23,379 Kg/m |
| 2014 T6 Aluminium Round Bar | 110 mm | 25,659 Kg/m |
| 2014 T6 Aluminium Round Bar | 120 mm | 30,536 Kg/m |
| 2014 T6 Aluminium Round Bar | 127 mm | 34,203 Kg/m |
| 2014 T6 Aluminium Round Bar | 130 mm | 35,838 Kg/m |
| 2014 T6 Aluminium Round Bar | 140 mm | 41,563 Kg/m |
| 2014 T6 Aluminium Round Bar | 150 mm | 47,713 Kg/m |
| 2014 T6 Aluminium Round Bar | 180 mm | 68,707 Kg/m |
| 2014 T6 Aluminium Round Bar | 200 mm | 84,823 Kg/m |
Aluminium Alloy 2017 Round Bars
Aluminium Alloy 2017 Round Bars Aluminium Alloy 2017 has good ductility and an intermediate strength and is heat treatable (age-hardening). They are commonly used in the production of pulleys, gauges, coat hangers, screw machine fittings, crochet and knitting needles, and pulleys. The T4 temper of this alloy has excellent machinability. Machinability is less favourable in the annealed condition. Therefore, it is ideal to machine Aluminium Alloy 2017 while it is in the T4 condition. For all machining operations, the use of oil lubricants is advised.Aluminium Alloy 2017 Round Bars can be welded, although the heat from the weld will decrease the corrosion resistance. In general, welding should be avoided unless it is possible to restore corrosion resistance through heat treatment following welding. Aluminium Alloy 2017 Round Bar is susceptible to cracking, so fixturing must be designed to minimise any strain during welding. Inert gas welding and resistance welding are the techniques that should be employed.
Aluminium 2017 Round Bars Equivalent Grades
| STANDARD | UNS | WERKSTOFF NR. |
| Aluminium 2017 | A92017 | 3.1325 |
ASTM B211 Aluminium 2017 Round Bars Specification
Dimensions : ASTM, ASME, AMS
Specifications : ASTM B221, B211, B565, B316, AMS 4118 2017
Temper : T3, T4, T5, T6, T651, T6511
Size : 1/4” Dia – 16” Dia
Form : Square , Round , Hex , Flat, Wire In Black & Bright Finish
Length : Random, Fix & Cut Length
Finish : Bright, Polish & Black
Aluminium Alloy 2014 Round Bars Standard Specification
ASTM B211/ASME SB211 - Specification for Aluminum and Aluminum-Alloy Rolled or Cold Finished Bar, Rod
ASTM B221/ASME SB221 - Specification for Aluminum and Aluminum-Alloy Extruded Bars, Rods
ASTM B565/ASME SB565 - Test Method for Shear Testing of Aluminum and Aluminum-Alloy Rivets and Cold-Heading Rods
ASTM B316/ASME SB316 - Standard Specification for Aluminum and Aluminum-Alloy Rivet and Cold-Heading bars and Rods
AMS 4102/ISO Al99.0Cu - Standard Specification for Aluminum and Aluminum-Alloy Cold / Hot Rolled Bars, Rods
Aluminium 2017 Round Bars Chemical Composition
| Grade | Al | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others Each | Other Total |
| 2017 | Rem | 0.20-0.8 | 0.7 max | 3.5-4.5 | 0.40-1.0 | 0.40-0.8 | 0.10 max | 0.25 max | 0.15 max | 0.05 max | 0.15 max |
Aluminium Alloy 2024 Round Bars
Due to their low density, which can result in a lightweight product, aluminium alloys are utilised widely in a variety of applications. The chemical makeup of 2024 aluminium alloys include a significant proportion of copper, which helps them resist corrosion. As a result, aluminium alloy grade 2024 is employed as a material for numerous parts in both spacecraft and aircraft. Aluminium Alloy 2024 Round Bars is widely chosen for usage in aerospace applications and aircraft constructions, particularly the wings and fuselage, which experience constant tension. Aluminium Alloy 2024 Round Bars is often used in the transportation sector. components, such as the bodies of commercial aircraft. Many material pieces are joined together using gas tungsten arc welding (GTAW).
Aluminium 2024 Round Bars Equivalent Grades
| STANDARD | UNS | WERKSTOFF NR. |
| Aluminium 2024 | A92024 | 3.1355 |
ASTM B211 Aluminium 2024 Round Bars Specification
Dimensions : ASTM, ASME, AMS
Specifications : ASTM B221, B211, B565, B316, AMS 4118 2024
Temper : T3, T4, T5, T6, T651, T6511
Size : 1/4” Dia – 16” Dia
Form : Square , Round , Hex , Flat, Wire In Black & Bright Finish
Length : Random, Fix & Cut Length
Finish : Bright, Polish & Black
Aluminium Alloy 2024 Round Bars Standard Specification
ASTM B211/ASME SB211 - Specification for Aluminum and Aluminum-Alloy Rolled or Cold Finished Bar, Rod
ASTM B221/ASME SB221 - Specification for Aluminum and Aluminum-Alloy Extruded Bars, Rods
ASTM B565/ASME SB565 - Test Method for Shear Testing of Aluminum and Aluminum-Alloy Rivets and Cold-Heading Rods
ASTM B316/ASME SB316 - Standard Specification for Aluminum and Aluminum-Alloy Rivet and Cold-Heading bars and Rods
AMS 4102/ISO Al99.0Cu - Standard Specification for Aluminum and Aluminum-Alloy Cold / Hot Rolled Bars, Rods
Aluminium 2024 Round Bars Chemical Composition
| Grade | Al | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other |
| min. | Bal | 3.80 | 0.30 | 1.20 | ||||||
| max. | Bal | 0.50 | 0.50 | 4.90 | 0.90 | 1.80 | 0.10 | 0.25 | 0.15 | 0.05 |
Aluminium Alloy 5052 Round Bars
Aluminum Alloy 5052 Round Bar are highly valued and in high demand. It provides maximum ductility for a wide range of applications. Our manufacturing sector can provide unrivaled strength and project-based aluminum alloy round bars. Large sectional pieces are also available for heavy forging. Our created product can be exposed to a vacuum to eliminate and evaporate all of the oxygen, nitrogen, and hydrogen. During the steelmaking process, silicon, aluminum, and manganese are added to increase stability and hardness. When melted, this instantly dissolves sulfur, oxygen, and phosphorous
Aluminium 5052 Round Bars Equivalent Grades
| STANDARD | UNS | WERKSTOFF NR. |
| Aluminium 5025 | A95052 | 3.3535 |
ASTM B211 Aluminium 5052 Round Bars Specification
Dimensions : ASTM, ASME, AMS
Specifications : ASTM B221, B211, B565, B316, AMS 4118 5052
Temper : O,H12,H14,H16,H18,H19,H22,H24,H26,H28,h22,h24,h26,h28,H111,H112,H114,H 116,h221
Size : 1/4” Dia – 16” Dia
Form : Square , Round , Hex , Flat, Wire In Black & Bright Finish
Length : Random, Fix & Cut Length
Finish : Bright, Polish & Black
Aluminium Alloy 2014 Round Bars Standard Specification
ASTM B211/ASME SB211 - Specification for Aluminum and Aluminum-Alloy Rolled or Cold Finished Bar, Rod
ASTM B221/ASME SB221 - Specification for Aluminum and Aluminum-Alloy Extruded Bars, Rods
ASTM B565/ASME SB565 - Test Method for Shear Testing of Aluminum and Aluminum-Alloy Rivets and Cold-Heading Rods
ASTM B316/ASME SB316 - Standard Specification for Aluminum and Aluminum-Alloy Rivet and Cold-Heading bars and Rods
AMS 4102/ISO Al99.0Cu - Standard Specification for Aluminum and Aluminum-Alloy Cold / Hot Rolled Bars, Rods
Aluminium 5052 Round Bars Chemical Composition
| Mg | Mn | Si | Cu | Fe | Cr | Zn | Ti | Cu | Other (Each) | Others (Total) | Al |
| 2.60 - 3.60 | 0.0 - 0.50 | 0.0 - 0.40 | 0.0 - 0.40 | 0.0 - 0.30 | 0.0 - 0.20 | 0.0 - 0.15 | 0.0 - 0.10 | 0.0 - 0.05 | 0.0 - 0.05 | 0.0 - 0.15 | Balance |
Aluminium 5052 Round Bars Physical Properties
| Physical Property | Value |
| Density | 2.62 g/cc |
| Ultimate Tensile Strength | 64-57 Ksi |
| Tensile Yield Strength | 42-41 Ksi |
| Elongation | 12-4 % |
Aluminium Alloy 5083 Round Bars
Our Aluminium 5083 Round Bars are manufactured under the guidance of our professional team in compliance with national and international quality standards.5083 aluminium alloy is an aluminium-magnesium alloy containing traces of manganese and chromium. After welding, Alloy 5083 retains remarkable strength. With an Ultimate Tensile Strength of 317 MPa or 46000 psi and a Tensile Yield Strength of 228 MPa or 33000 psi, it is the strongest of the non-heat-treatable alloys. It should not be used in temperatures above 65 degrees Celsius.
Aluminium 5083 Round Bars Equivalent Grades
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| AW-AlMg4,5Mn0,7 | AG4,5MC | 3.3547 | A95083 | AlMg4,5Mn0,7 | 5083 | AlMg4,5Mn |
ASTM B211 Aluminium 5083 Round Bars Specification
Dimensions : ASTM, ASME, AMS
Specifications : ASTM B221, B211, B565, B316, AMS 4118 5083
Temper : O,H12,H14,H16,H18,H19,H22,H24,H26,H28,h22,h24,h26,h28,H111,H112,H114,H 116,h221
Size : 1/4” Dia – 16” Dia
Form : Square , Round , Hex , Flat, Wire In Black & Bright Finish
Length : Random, Fix & Cut Length
Finish : Bright, Polish & Black
Aluminium Alloy 2014 Round Bars Standard Specification
ASTM B211/ASME SB211 - Specification for Aluminum and Aluminum-Alloy Rolled or Cold Finished Bar, Rod
ASTM B221/ASME SB221 - Specification for Aluminum and Aluminum-Alloy Extruded Bars, Rods
ASTM B565/ASME SB565 - Test Method for Shear Testing of Aluminum and Aluminum-Alloy Rivets and Cold-Heading Rods
ASTM B316/ASME SB316 - Standard Specification for Aluminum and Aluminum-Alloy Rivet and Cold-Heading bars and Rods
AMS 4102/ISO Al99.0Cu - Standard Specification for Aluminum and Aluminum-Alloy Cold / Hot Rolled Bars, Rods
Aluminum 6061 Round Bar
Aluminum 6061 round bars are one of the most versatile and widely used aluminum alloys. Known for their excellent mechanical properties, corrosion resistance, and weldability, 6061 is ideal for a wide range of applications in industries such as aerospace, automotive, and marine. This alloy offers good strength, making it a great choice for structural components that require strength and light weight.
Key Applications:
- Aerospace Components: Widely used in the aerospace industry for structural and non-structural components due to its high strength-to-weight ratio and durability.
- Automotive Parts: Commonly used for car frames, wheels, brackets, and other lightweight structural components.
- Marine Applications: Ideal for boat parts, hulls, and marine hardware because of its excellent resistance to corrosion in seawater.
- Structural Components: Used in architectural applications, frames, and supports, especially where strength and weight are crucial factors.
- General Manufacturing: Frequently used in manufacturing applications that require material formability, including machinery parts and structural bars.
Specifications:
| Property | Value |
|---|---|
| Alloy | 6061 |
| Density | 2.70 g/cm³ |
| Tensile Strength | 310 MPa |
| Yield Strength | 276 MPa |
| Elongation | 12-17% Minimum |
| Corrosion Resistance | Good |
| Hardness | 95 BHN |
| Workability | Good (easily welded, machined, and formed) |
| Applications | Round Bars, Plates, Tubes, Extrusions |
| Common Finish | Anodized, Polished |
Benefits of Aluminum 6061 Round Bar:
- High Strength-to-Weight Ratio: Aluminum 6061 is highly valued for its strength without being heavy, which makes it ideal for structural applications.
- Good Corrosion Resistance: It performs well in outdoor and marine environments due to its resistance to corrosion, especially when anodized.
- Excellent Workability: This alloy is easy to weld, machine, and fabricate into different shapes and sizes, making it ideal for a wide variety of applications.
- Versatility: Suitable for a broad range of industries, from aerospace to automotive to construction, due to its well-balanced properties.
Aluminum 6063 Round Bar
Aluminum 6063 round bars are one of the most commonly used alloys in structural and architectural applications due to their exceptional corrosion resistance, good mechanical properties, and ability to be easily shaped or extruded into various forms. This alloy is widely favored in both commercial and industrial applications where high strength and lightweight properties are needed.
Key Applications:
- Architectural Components: Ideal for window frames, door frames, and curtain walls, as it provides excellent aesthetic finishes when anodized.
- Marine and Outdoor Structures: Used in railings, boat parts, and structures exposed to harsh weather conditions.
- Furniture Manufacturing: Aluminum 6063 is often used in furniture frames and components due to its attractive finish and strength.
- Automotive Parts: Aluminum 6063 is lightweight yet strong, making it useful in the production of car frames, brackets, and other structural parts.
- Electrical Components: It's also used in manufacturing components that require good electrical conductivity and non-corrosive properties.
Specifications:
| Property | Value |
|---|---|
| Alloy | 6063 |
| Density | 2.70 g/cm³ |
| Tensile Strength | 160 MPa |
| Yield Strength | 140 MPa |
| Elongation | 10% Minimum |
| Corrosion Resistance | Excellent |
| Hardness | 90 BHN |
| Workability | Good (easily welded, machined, and formed) |
| Applications | Round Bars, Tubes, Angles, Extrusions |
| Common Finish | Anodized, Polished |
Benefits of Aluminum 6063 Round Bar:
- Excellent Durability: This alloy provides long-lasting performance even in harsh environmental conditions, thanks to its superior corrosion resistance.
- Lightweight: 6063 aluminum is lightweight compared to steel or other metals, making it ideal for applications requiring strength without adding significant weight.
- Easy to Fabricate: The alloy can be easily welded, machined, and extruded into different shapes, making it versatile for a wide range of manufacturing processes.
- Aesthetic Appearance: When anodized, the surface of aluminum 6063 has a smooth, shiny finish, which enhances its visual appeal in architectural applications.
Aluminum 6061 T6 Round Bar
Aluminum 6061 T6 Round Bars are one of the most commonly used and versatile alloys in the aluminum family. Known for their excellent mechanical properties, the T6 temper treatment increases the material's strength and makes it ideal for use in demanding structural applications. These bars are widely used in aerospace, automotive, marine, and other industries requiring high strength and low weight.
Key Applications:
- Aerospace Components: The T6 temper provides superior strength, making it ideal for aircraft structural components and aircraft frames.
- Automotive Parts: Used in manufacturing car parts, including wheels, brackets, and structural components that need to be lightweight yet strong.
- Marine Applications: Aluminum 6061 T6 round bars offer high corrosion resistance, making them perfect for use in boats, ships, and marine hardware.
- Structural Applications: Commonly used in architectural applications, including window frames and supporting structures due to its ability to bear high loads.
- General Manufacturing: Used in a wide range of applications where good workability and high strength are required.
Specifications:
| Property | Value |
|---|---|
| Alloy | 6061 |
| Temper | T6 (Heat-treated) |
| Density | 2.70 g/cm³ |
| Tensile Strength | 310 MPa |
| Yield Strength | 276 MPa |
| Elongation | 12-17% Minimum |
| Corrosion Resistance | Good |
| Hardness | 95 BHN |
| Workability | Good (easily welded, machined, and formed) |
| Applications | Round Bars, Plates, Tubes, Extrusions |
| Common Finish | Anodized, Polished |
Benefits of Aluminum 6061 T6 Round Bar:
- Enhanced Strength: The T6 temper treatment significantly increases the tensile and yield strength, making it suitable for demanding applications where high strength is required.
- High Durability: Offers excellent resistance to corrosion, especially when anodized, making it perfect for marine and outdoor environments.
- Good Workability: Can be easily welded, machined, and formed, allowing for flexibility in manufacturing processes.
- Lightweight: Offers the ideal balance of strength and lightweight, which is critical for aerospace and automotive components.
Aluminum 6101 T6 Round Bar
Aluminum 6101 T6 Round Bars are primarily used for electrical transmission applications and other industrial uses requiring strength, high conductivity, and excellent corrosion resistance. The T6 temper offers improved mechanical properties, making it an ideal choice for power lines, busbars, and structural components that must maintain both strength and electrical conductivity. The alloy provides good formability and is easy to work with in many manufacturing processes.
Key Applications:
- Electrical Transmission Lines: The high conductivity of 6101 T6 makes it ideal for power transmission lines and other electrical applications.
- Busbars: Widely used in electrical circuits and busbar systems, providing a reliable solution for electrical power distribution.
- Structural Components: Used in the manufacturing of frames, supports, and other structural components where strength and lightweight properties are essential.
- Conductors: Commonly found in applications requiring good electrical conductivity, including connectors and cables.
- Marine Applications: Often used in the marine industry due to its resistance to corrosion, especially in saltwater environments.
Specifications:
| Property | Value |
|---|---|
| Alloy | 6101 |
| Temper | T6 (Heat-treated) |
| Density | 2.70 g/cm³ |
| Tensile Strength | 250 MPa |
| Yield Strength | 210 MPa |
| Elongation | 12-18% Minimum |
| Corrosion Resistance | Good |
| Hardness | 90 BHN |
| Workability | Good (easily welded, machined, and formed) |
| Electrical Conductivity | Excellent |
| Common Finish | Anodized, Polished |
Benefits of Aluminum 6101 T6 Round Bar:
- High Electrical Conductivity: One of the key benefits of 6101 is its high conductivity, which is critical for power transmission lines and electrical components.
- Good Strength-to-Weight Ratio: The T6 temper provides an excellent strength-to-weight ratio, making it ideal for applications requiring structural integrity with minimal weight.
- Corrosion Resistance: Offers good resistance to corrosion, particularly in marine and other outdoor environments, making it durable and long-lasting.
- Excellent Workability: Easy to weld, machine, and form, which allows for versatile use in different applications and manufacturing processes.
- Durability: The T6 temper treatment enhances the durability and longevity of the material, making it suitable for demanding applications.
Aluminum 6351 T6 Round Bar
Aluminum 6351 T6 Round Bars are primarily used in structural applications where high strength and resistance to corrosion are critical. The T6 temper increases the mechanical properties of the alloy, making it more durable and reliable in demanding environments. Common applications include aerospace, transportation, and marine industries.
Key Applications:
- Aerospace Components: The high strength and lightweight properties of 6351 T6 make it suitable for aerospace applications, including structural frames and parts that need to withstand rigorous conditions.
- Marine Applications: It is highly resistant to corrosion, especially in saltwater environments, making it ideal for marine structures, ships, and boat frames.
- Transportation: Aluminum 6351 T6 is used in the production of parts in vehicles and rail transportation, where strength, durability, and light weight are needed.
- Structural Components: Used in construction for beams, supports, and frameworks that require both strength and corrosion resistance.
- General Engineering: Can be used in a wide range of general engineering applications, including machinery, tanks, and other heavy-duty structures.
Specifications:
| Property | Value |
|---|---|
| Alloy | 6351 |
| Temper | T6 (Heat-treated) |
| Density | 2.70 g/cm³ |
| Tensile Strength | 310 MPa |
| Yield Strength | 275 MPa |
| Elongation | 10-15% Minimum |
| Corrosion Resistance | Excellent |
| Hardness | 90 BHN |
| Workability | Good (weldable and formable) |
| Electrical Conductivity | Good |
| Common Finish | Anodized, Polished |
Benefits of Aluminum 6351 T6 Round Bar:
- High Strength: The T6 temper provides excellent tensile and yield strength, making it ideal for demanding structural applications.
- Corrosion Resistance: Offers exceptional resistance to corrosion, especially in harsh environments such as marine and industrial applications.
- Lightweight: The alloy has a low density, which makes it ideal for applications requiring lightweight materials, especially in aerospace and transportation.
- Excellent Workability: Aluminum 6351 T6 is easily weldable, machinable, and formable, making it a versatile material in manufacturing.
- Durability: The alloy's durability and toughness ensure it can handle high-stress and long-lasting applications, which is crucial for structural components.
Aluminum 6082 T6 Round Bar
Aluminum 6082 T6 Round Bars are highly versatile and used for applications requiring good mechanical properties, high strength, and excellent corrosion resistance. The T6 temper significantly enhances the material's strength, making it ideal for demanding applications in industries such as construction, marine, aerospace, and transportation.
Key Applications:
- Construction: Used in structural elements such as beams, supports, and frames, where strength and durability are essential.
- Marine Industry: Excellent resistance to corrosion makes it ideal for use in ships, boats, and marine components exposed to harsh environments.
- Aerospace: Commonly used for lightweight yet strong components in the aerospace industry.
- Transportation: Used in the production of transportation equipment, including rail and road vehicles, where both strength and weight are critical factors.
- Machinery Manufacturing: The alloy's strength and workability make it ideal for components that must withstand mechanical stress.
Specifications:
| Property | Value |
|---|---|
| Alloy | 6082 |
| Temper | T6 (Heat-treated) |
| Density | 2.70 g/cm³ |
| Tensile Strength | 310 MPa |
| Yield Strength | 250 MPa |
| Elongation | 10-15% Minimum |
| Corrosion Resistance | Excellent |
| Hardness | 95 BHN |
| Workability | Good (weldable, machinable, and formable) |
| Electrical Conductivity | Good |
| Common Finish | Anodized, Polished |
Aluminium 7075 T6 Round Bar
Aluminum 7075 T6 Round Bar is one of the strongest aluminum alloys available, widely used in industries that require high strength, excellent fatigue resistance, and good machinability. The T6 temper involves heat treatment to increase the strength of the alloy, making it particularly suitable for aerospace, defense, and high-stress engineering applications.
Aluminum Bronze AMS 4640 Round Bars
Aluminum Bronze AMS 4640 Round Bars are made from an alloy primarily consisting of copper and aluminum, with small amounts of other elements such as iron, nickel, and manganese. This alloy is known for its excellent corrosion resistance, strength, and high wear resistance, making it suitable for demanding applications in industries such as marine, aerospace, and heavy machinery.
Aluminum HE-9 Round Bars
Aluminum HE-9 Round Bars are made from an aluminum alloy that is generally used for specialized applications where high strength, good corrosion resistance, and excellent machinability are required. The HE-9 alloy is known for its superior properties in structural and aerospace applications, making it ideal for components that must withstand mechanical stress while maintaining a lightweight profile.
Aluminium HE-15 Round Bars
Aluminum HE-15 Round Bars are made from an advanced aluminum alloy known for its high strength, excellent corrosion resistance, and superb machinability. It is typically used in demanding engineering applications, including those in the aerospace, automotive, and construction industries, where high strength-to-weight ratio and durability are required.
Aluminium HE-20 Round Bars
Aluminum HE-20 Round Bars are made from an aluminum alloy that is specifically engineered to provide excellent mechanical properties, high strength, and excellent corrosion resistance. These bars are commonly used in structural applications where high strength and durability are required, such as in aerospace, automotive, and construction industries.
Aluminium HE-30 Round Bars
Aluminum HE-30 Round Bars are manufactured from an aluminum alloy known for its high strength, excellent corrosion resistance, and superior machinability. This alloy is commonly used in demanding engineering applications such as aerospace, automotive, marine, and industrial machinery. Aluminum HE-30 offers a balance between strength and lightweight properties, making it ideal for structural components that need to withstand mechanical stress while maintaining reduced weight.
