Stainless Steel Tubings

Home > Products > Stainless Steel Tubings

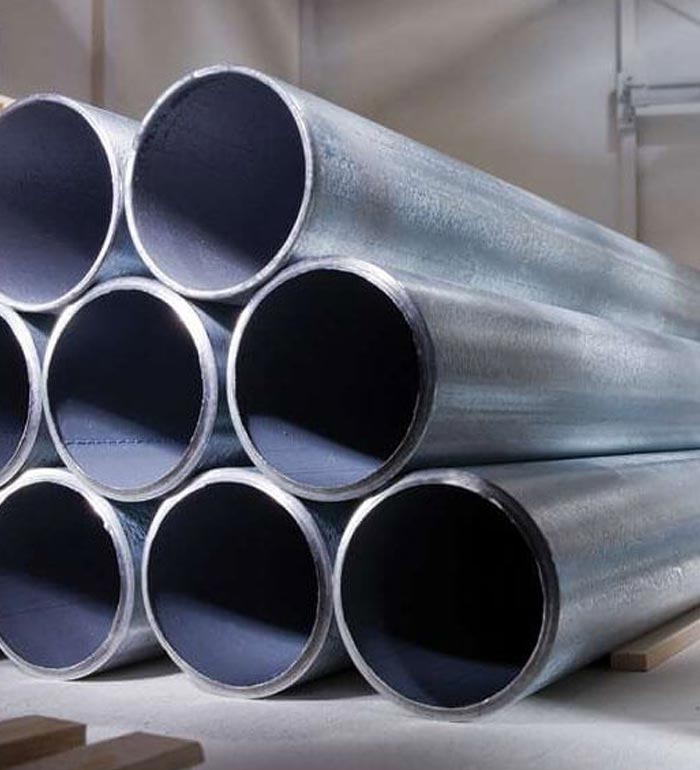

Stainless Steel Seamless Tubes

Stainless steel is often referred to as "corrosion-resistant steel" – it does not stain, corrode or rust as easily as normal carbon steel. It would however be misleading to say it is corrosion-proof. It differs significantly from standard carbon steel due to the amount of chromium present, which limits surface corrosion unlike carbon steel which will rust when exposed to air and any moisture in the atmosphere. Due to its anti-oxidation qualities, stainless steel is often a popular solution.

While manufacturing ERW steel Tubes, only high-quality, continuous-cast, fully killed, control-rolled, fine-grain, low-carbon steel is used. High performance ERW steel Tubes and tubing possess high strength corrosion resistance, high deformability, high strength and high toughness. We are among the leading manufacturers and suppliers of ERW Tubes and tubes in India. We are also one of the largest exporters of ERW Tubes and tubes in India. ERW Tubes and tubes stands for electric Resistance Welded Tubes and tubes.

Specification

Specifications ASTM A358, ASME SA358
Standard ASTM A-358, A-409, A-778, A-928, ASTM A671 / A672, ASTM A691
Size Range 8€³NB OD to 64€³NB OD
Wall Thickness 2.5mm €" 50mm
Schedules 20, 30, 40, Standard (STD), 60, Extra Heavy (XS), 80, 100, 120, 140, 160, XXS
Grade 304, 316, UNS S32205, UNS S32750, UNS S32760, UNS S31803
Length Cut length, Fix length, 100mm to 12mtr long.
End Plain End, Beveled End
Tubes Range 6NB to 1200NB €" SCH. 5, 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XXS.
TubesType Round, Square, Rectangle, Hydraulic, Honed Tubes
Stainless Steel Tubes 304, 316, UNS S32205, UNS S32750, UNS S32760, UNS S31803
TEST CERTIFICATES MTC, IBR & Third Party Inspection.



Typical compositional ranges for grade 304 stainless steels
Grade C Mn Si P S Cr Mo Ni N
304 min. - - - - - 18.0 - 8.0 -
max. 0.08 2.0 0.75 0.045 0.030 20.0 10.5 0.10

304 SS Tubes Mechanical Properties

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
304 515 205 40 92 201

304 SS Tubes Physical Properties

Grade Density (kg/m3) Elastic Modulus (GPa) Mean Coefficient of Thermal Expansion (m/m/0C) Thermal Conductivity (W/m.K) Specific Heat 0-1000C (J/kg.K) Electrical Resistivity (n.m)
0-1000C 0-3150C 0-5380C at 1000C at 5000C
304 8000 193 17.2 17.8 18.4 16.2 21.5 500 720

Applications:

  • Common industrial services (Petroleum, chemical, paper, fertilizer, fabric, aviation and nuclear)
  • Decoration purpose, boiler, auto parts, medical device, food industry, building materials
  • Heat transmission and pressure service
  • Fluid, gas and oil industry
  • Construction and ornamental
  • Boilers and Heat exchangers

Special Features

  • Each bundle covered with plastic for protection against extreme weather.
  • End of SS 304 Seamless Tubes protected by plastic caps.
  • Bundles strapped with plastic strips.
  • Each radius of U-Bend tube separated by a separator.
  • Packaging list (laminated) placed with box/crate.

Standards SS Seamless Tubes 304/316

(A) ASTM/ASME – Standards
A 213 / SA 213 Seamless ferritic and austenitic alloy steel boiler, super heater and heat Exchanger Tubes
A 249 / SA 249 Welded austenitic steel boiler, Super Heater, Heat Exchanger Tubes and Condenser Tubes
A 268 / SA 268 Seamless and Welded ferritic and martensitic stainless steel tubing for general service
A 269 / SA 269 Seamless and Welded austenitic stainless steel tubing for general service
A 312 / SA 312 Austenitic stainless steel seamless Tubes & S.S. Welded Tubess
A 358 / SA 358 Stainless Steel Welded Tubes for high temperature service
A 688 / SA 688 Welded feed water heater ‘U’ Tubes
(C) German – Standards
DIN 17455 Welded general purpose piping
DIN 17456 Seamless circular austenitic stainless steel for general service
DIN 17457 Circular austenitic stainless steel welded tubes subject to special requirement
DIN 17458 Seamless circular austenitic stainless steel tubes subject to special requirement
DIN 28180 Stainless Steel Seamless Heat Exchanger Tube
(D) NF – Standards (AFNOR Standard)
NF A 49-117 Seamless ferritic and austenitic stainless steel tubes for general services
NF A 49-217 Seamless ferritic, austenitic and ferritc-austenitic stainless steel tubes for heat exchanger
(F) JIS – Standards
JIS G 3459 S.S. Seamless Tubess.
JIS G 3463 Stainless steel boiler and heat exchanger tubes

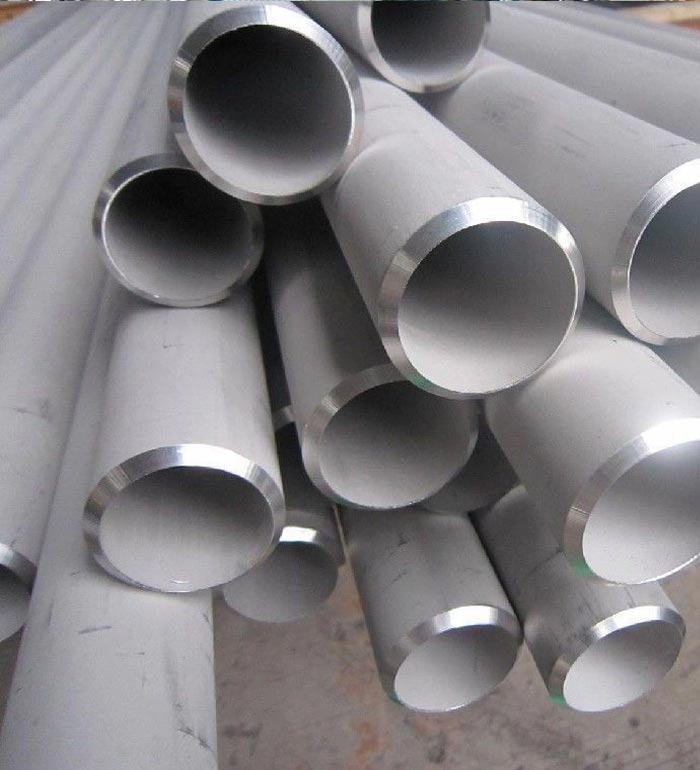

Standards SS ERW Tubes 304/316

ERW Tubes mean Electric Resistance Welded Tubes. ERW steel Tubes and tubes are used. ERW steel Tubes and tubes are used in various engineering purposes, fencing, scaffolding, line Tubes etc. ERW steel Tubes and tube are available in various qualities, wall thicknesses, and diameters of the finished Tubes.

Stainless steel ERW Tubes and ERW Tubes are fabricated in different alloys of ASTM / ASME SA 312 GR. TP 304, 316, ASTM / ASME SA 358 CL 1 & CL 3 GR . 304, 316. Our comprehensive range includes welded stainless steel Tubes, ERW alloy steel Tubes, welded steel Tubes and many more. We produce using ace quality of steel and alloy to retain their durability for longer period.

Stainless Steel Seamless Tubes Dimension – (S.S. Seamless Tube)
Wall thickness in mm. 0.5 0.6 0.7 0.8 1 1.2 1.6 2 2.6 3 3.2 3.6
O.D. in mm. Weight in kg/meter
6 0.069 0.081 0.093 0.104 0.125 0.144 0.176 – – – – –
9.52 0.112 0.134 0.154 0.174 0.213 0.249 0.317 – – – – –
10 0.119 0.141 0.163 0.184 0.225 0.264 0.336 – – – – –
12.7 0.153 0.182 0.21 0.238 0.293 0.345 0.444 – – – – –
14 0.169 0.201 0.233 0.264 0.325 0.384 0.496 – – – – –
15.87 0.192 0.229 0.266 0.301 0.372 0.44 0.571 0.694 – – – –
19 0.231 0.276 0.32 0.364 0.45 0.534 0.696 0.85 1.066 1.2 1.264 –
25 0.306 0.366 0.425 0.484 0.6 0.714 0.936 1.15 1.456 1.65 1.744 1.926
25.4 0.311 0.372 0.432 0.492 0.61 0.726 0.952 1.17 1.482 1.68 1.776 1.962
31.8 – – – – – 0.918 1.208 1.49 1.898 2.16 2.288 2.538
38 – – – – – 1.104 1.456 1.8 2.301 2.625 2.784 3.096
44.5 – – – – – 1.299 1.716 2.125 2.724 3.113 3.304 3.681
50.8 – – – – – 1.488 1.968 2.44 3.133 3.585 3.808 4.248
63.5 – – – – – – 2.476 3.075 3.959 4.538 4.824 5.391
76.1 – – – – – – 2.98 3.705 4.778 5.483 5.832 6.525
101.6 – – – – – – 4 4.98 6 7 7,872 8.82

304/316 SS ERW Tubes Chemical Composition

Grades Manganese Phosphorus Carbon Sulfur Silicon Nickel Chromium Other
SS 304 2 0.04 0.08 0.03 0.075 8.00 11.00 18.00 20.00
SS 316 2.00 0.040 008 0.030 0.75 11.00 4.00 16.00 18.00 Mo2.00- 3.00

304/316 SS ERW Tubes Mechanical Properties

Type Yield Strength Rockwell Hardness Tensile Strength Elongation
SS 304 35000
75000		 RB80
RB95		 85000
105000		 55
20
SS 316 35000 RB80 85000 50

304/316 SS ERW Tubes Physical Properties

Grades Density (g/cm³) Melting Point (°C) Electrical Resistivity (µΩ·cm) Thermal Conductivity (W/m·K) Coefficient of Thermal Expansion (μm/m·°C)
SS 304 7.93 1400 – 1450 0.072 16.2 17.2
SS 316 7.98 1375 – 1400 74.0 16.3 16.5

SS 304/316 ERW Tubes Dimensionial Standards:

  • ASME B36.19M
  • ASME B36.10M
  • ASTM A312
  • ISO 1127
  • DIN 11850
  • EN 10217
  • GOST 9941
  • JIS G3459
Tubes SCHEDULES Dimensions (Inches)
Nominal O.D. Inches 10s 80s & E.H. 10 40 40s & Std 160 80
1/2 .840 .083 .147 .083 .109 .109 .187 .147
1/8 .405 .049 .095 .049 .068 .068 .095
1 1/4 1.660 .109 .191 .109 .140 .140 .250 .191
1 1/2 1.900 .109 .200 .109 .145 .145 .281 .200
1/4 .540 .065 .119 .065 .088 .088 .119
2 1/2 2.875 .120 .276 .120 .203 .203 .375 .276
3 1/2 4.000 .120 .318 .120 .226 .226 .318
4 1/2 5.000 .355 .247
3/8 .675 .065 .126 .065 .091 .091 .126
6 6.625 .134 .432 .134 .280 .280 .718 .432
3/4 1.050 .083 .154 .083 .113 .113 .218 .154
7 7.625 .500 .301
1 1.315 .109 .179 .109 .133 .133 .250 .179
2 2.375 .109 .218 .109 .154 .154 .343 .218
9 9.625 .500 .342
3 3.500 .120 .300 .120 .216 .216 .437 .300
10 10.750 .165 .500 .165 .365 .365 1.125 .593
4 4.500 .120 .337 .120 .237 .237 .531 .337
12 12.750 .180 .500 .180 .406 .375 1.312 .687
5 5.563 .134 .375 .134 .258 .258 .625 .375
14 14.000 .188 .500 .250 .437 .375 1.406 .750
8 8.625 .148 .500 .148 .322 .322 .906 .500
16 16.000 .188 .500 .250 .500 .375 1.593 .843
11 11.750 .500 .375
18 18.000 .188 .500 .250 .562 .375 1.781 .937



SS 304/316 ERW Tubes application:

  • Construction industry
  • Oil and gas industry
  • Automotive industry
  • Furniture industry
  • Agriculture industry
  • Mining industry
  • Material
  • Size

SS 304/316 ERW Tubes features:

  • High-Strength Corrosion Resistance
  • High Malleability
  • Superior Strength
  • Durable and Sturdy

Stainless Steel Capillary Tubes

TubeWell is offering Stainless Steel Capillary Tube Suppliers are in small bore sizes and precise thickness are available as per the requirements of clients. It & is widely used in instrumentation Industries. SS 304 capillary tubes and 316 Stainless Steel Capillary Tubing are available in precise cut to lengths are also highly effective in a wide range of temperatures. SS Capillary Tubing are the preferred choice for most applications due to greater corrosion resistance and precision. Stainless steel 316 capillary tubing is generally used for high pressure applications.

304/316 SS Capillary Tubes Specification

Stainless Steel Capillary Tube Size Range 0.35mm to 6.35mm OD in thickness ranging from 0.1mm to 1.2mm.
Thickness 1mm to 20mm, SCH 5/5S, 10/10S, 20/20S, 40/40S, 80/80S, 120/120S, 160/160S as per ANSI B36.19/36.10
Wall Thickness 0.08 – 0.2 mm
Outside Diameter 0.3 –12.0 mm
Specification ASME / ASTM A213, ASTM A688 / A688M - 08, ASTM A803 / A803M, ASTM A556 / A556M, ASME SA556, ASME SA688
Material SS 304, SS 316
Finish Pickled, Polished, Bright Annealed, Electrolytic Polished
Form Round, Strait, Hydraulic etc.
Type As Welded, EFW, ERW, Seamless, Semi Seamless, Bead Removed
Mill Test Certificate EN10204 3.1
Packing Sleeved, Ends Capped, Wooden Boxed

304/316 SS Capillary Tubes Dimensions and Wall Thickness

Gauge Outside Diameter Tolerance mm Regular Wall (RW) mm Thin Wall (TW) mm Extra Thin Wall (XTW) mm Ultra Thin Wall (UTW) mm
30 0.304 – 0.317 0.064 – 0.089
29 o.330 – 0.342 0.064 – 0.089
28 0.355 – 0.368 0.076 – 0.102
27 0.406 – 0.419 0.089 – 0.115 0.064 – 0.089
26 0.457 – 0.469 0.089 – 0.114
25 0.508 – 0.520 0.115 – 0.140 0.089 – 0.114
24 0.558 – 0.571 0.114 – 0.140 0.089 – 0.114 0.051 – 0.102
23 0.635 – 0.647 0.140 – 0.165 0.089 – 0.114 0.051 – 0.102
22 0.711 – 0.723 0.140 – 0.165 0.096 – 0.121 0.077 – 0.102 0.051 – 0.102
21 0.812 – 0.825 0.140 – 0.165 0.102 – 0.127 0.051 – 0.102
20 0.901 – 0.914 0.108 – 0.165 0.108 – 0.134
19 1.054 – 1.079 0.166 – 0.216 0.102 – 0.140 0.070 – 0.108
18 1.257 – 1.282 0.191 – 0.241 0.127 – 0.165 0.083 – 0.121 0.051 – 0.102
17 1.460 – 1.485 0.177 – 0.229 0.115 – 0.152 0.083 – 0.127 0.057 – 0.102
16 1.638 – 1.663 0.204 – 0.254 0.127 – 0.165 0.096 – 0.133 0.070 – 0.121
15 1.816 – 1.841 0.204 – 0.254 0.127 – 0.165 0.096 – 0.134 0.070 – 0.121
14 2.082 – 2.133 0.216 – 0.292 0.165 – 0.229 0.114 – 0.165 0.076 – 0.134
13 2.387 – 2.438 0.267 – 0.343 0.191 – 0.267
12 2.743 – 2.749 0.267 – 0.321
11 3.023 – 3.073 0.293 – 0.368 0.216 – 0.292
10 3.378 – 3.429 0.318 – 0.394 0.216 – 0.292

Chemical Composition of 304/316 SS Capillary Tube

STAINLESS STEEL CAPILLARY TUBE GRADES UNS C Mn P S Si Cr Ni Mo Ti Nb N
TP304 S30400 0.08 2 0.045 0.03 1 18.0-20.0 8.0-11.0
TP316 S3160 0.08 2 0.045 0.03 1 16.0-18.0 11.0-14.0 2.0-3.0

Mechanical Composition of 304/316 SS Capillary Tube

Material Heat Temperure Tensile Strength Yield Strength Elongation %, Min
Treatment Min. Ksi (MPa), Min. Ksi (MPa), Min.
º F(º C)
TP304 Solution 1900 (1040) 75(515) 30(205) 35
TP316 Solution 1900(1040) 75(515) 30(205) 35

Equivalent Grades of 304/316 SS Capillary Tubing

GRADE UNS NO DIN/WERKSTOFF
Stainless Steel Capillary Tube 304 S30400 1.4301
Stainless Steel Capillary Tube 316 S31600 1.4436

SS 304/316 Capillary Tubes application:

  • SS Welded Capillary Tubes used for Oil and gas
  • Stainless Steel Capillary Tubing used for Pharmaceutical
  • SS Capillary Tube application for Fertilizers
  • SS 446 ERW Capillary Tubes used for Water/waste
  • Stainless Steel Capillary Tubing for Renewable energy
  • TP 410 SS Capillary Tubes applications for Food and beverage
  • Stainless Steel 321/321H Capillary Tubing for Process piping
  • Stainless Steel Seamless Capillary Tube application for Marine Industry
