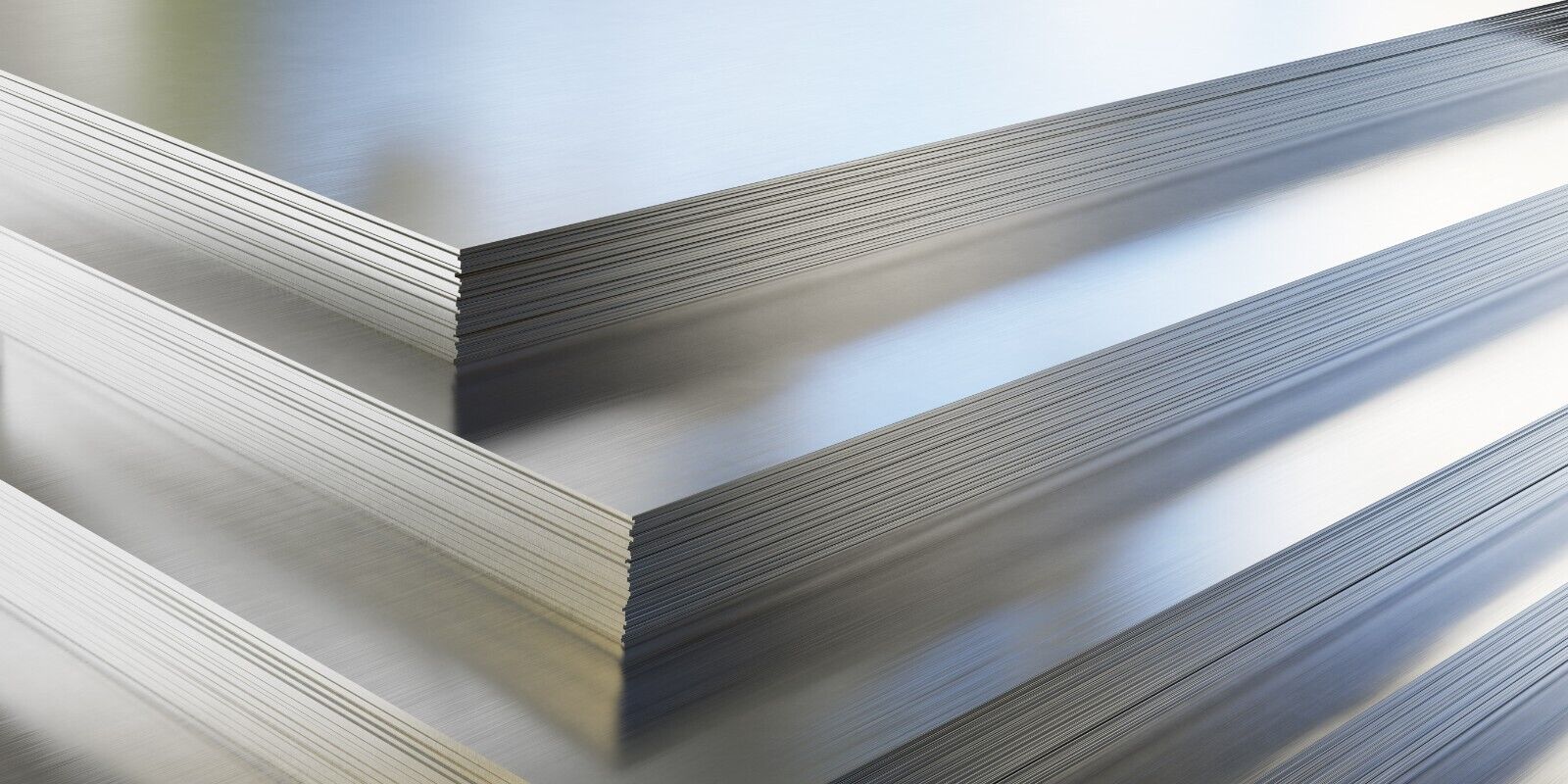

Aluminium Sheet
Aluminum sheets are flat, thin metal plates made from aluminum alloy, known for their light weight, strength, and corrosion resistance. These sheets are widely used across industries such as construction, automotive, aerospace, packaging, and manufacturing. Available in various grades and thicknesses, aluminum sheets offer excellent formability, durability, and high resistance to oxidation. They can be easily fabricated, welded, and finished, making them versatile for a range of applications including cladding, panels, roofing, and structural components. Their resistance to rust and low maintenance requirements make them ideal for outdoor and high-humidity environments. Aluminum sheets are also recyclable, contributing to sustainability.
Table of Content
ASTM B209 Aluminium Alloy Sheet Specification
Standards : ASTM B209 / ASME SB209
Temper : O, T3,T4, T6, T651
Thickness : 0.2~300mm
Width : 500-2000mm
Length :To Clients’ Requirement
Surface : Bright, polished, hair line, brush, sand blast, checkered, embossed, etching, etc.
Finish : Mill, Customer specific finish
Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet
Aluminium Alloy Sheets Standard Specification
ASTM B209 - Standard Specification for Aluminum and Aluminum-Alloy Sheets
ASTM B632 / B632M - Standard Specification for Aluminum-Alloy Rolled Tread Sheets
ASTM B947 - Standard Practice for Hot Rolling Mill Solution Heat Treatment for Aluminum Alloy Sheets
ASTM B548 - Standard Test Method for Ultrasonic Inspection of Aluminum-Alloy Sheets for Pressure Vessels
AMS 4001 - Aluminum Sheet, 0.12Cu (1100-0), Annealed
AMS 4003 - Aluminum Alloy, Sheet, 0.12cu (1100-H14), Strain Hardened
Aluminum Alloy Sheet Size Chart in MM
| Size (in inches) | Size (in mm) |
| .125 | 3.18 |
| .134 | 3.40 |
| .156 | 3.96 |
| .187 | 4.75 |
| .250 | 6.35 |
| .312 | 7.92 |
| .375 | 9.53 |
| .500 | 12.7 |
| .600 | 15.9 |
| .750 | 19.1 |
| .875 | 22.2 |
| 1 | 25.4 |
| 1.125 | 28.6 |
| 1.250 | 31.8 |
| 1.500 | 38.1 |
| 1.750 | 44.5 |
| 2 | 50.8 |
| 2.500 | 63.5 |
| 3 | 76.2 |
Aluminum Alloy Sheet Size Chart in MM
| Thickness | Size | Weight |
| Mm | M | Kg/ |
| 0.30 | 2.5 X 1.25 | 2.63 |
| 0.40 | 2.5 X 1.25 | 3.50 |
| 0.50 | 2.5 X 1.25 | 4.38 |
| 0.60 | 2.5 X 1.25 | 5.25 |
| 0.80 | 2.5 X 1.25 | 7.00 |
| 1.00 | 2.5 X 1.25 | 8.75 |
| 1.20 | 2.5 X 1.25 | 10.50 |
| 1.27 | 2.5 X 1.25 | 11.11 |
| 1.60 | 2.5 X 1.25 | 14.00 |
| 2.00 | 2.5 X 1.25 | 17.50 |
| 2.50 | 2.5 X 1.25 | 21.88 |
| 3.00 | 2.5 X 1.25 | 26.25 |
| 4.00 | 2.5 X 1.25 | 35.00 |
| 5.00 | 2.5 X 1.25 | 43.75 |
| 6.00 | 2.5 X 1.25 | 52.50 |
| 6.35 | 2.5 X 1.25 | 55.56 |
| Imperial | ||
| Thickness | Size | Weight |
| In | Ft | Lbs/ |
| 0.012 | 12 X 4 | 8.38 |
| 0.016 | 12 X 4 | 11.19 |
| 0.018 | 12 X 4 | 12.57 |
| 0.020 | 12 X 4 | 13.96 |
| 0.025 | 12 X 4 | 17.45 |
| 0.032 | 12 X 4 | 22.34 |
| 0.040 | 12 X 4 | 27.92 |
| 0.050 | 12 X 4 | 34.91 |
| 0.063 | 12 X 4 | 43.98 |
| 0.070 | 12 X 4 | 48.87 |
| 0.080 | 12 X 4 | 55.85 |
| 0.090 | 12 X 4 | 62.83 |
| 0.100 | 12 X 4 | 69.81 |
| 0.125 | 12 X 4 | 87.26 |
| 0.188 | 12 X 4 | 131.25 |
| 0.250 | 12 X 4 | 174.53 |
Aluminium Alloy 2014 Sheet
AWe are producing and providing sheet plates in a variety of specifications in response to industrialists' requests for a variety of application requirements.The best grade of aluminium alloy is used in the manufacture of Aluminium Alloy 2014 Sheets. It has gained widespread application as a result of its many positive qualities, including dimensional accuracy, fine surface finishes, tough construction, durability, high tensile strength, withstanding large loads/high temperatures, etc. All products undergo a series of quality check tests to ensure that premium quality products are supplied to the buyer.
Aluminium Alloy 2014 Sheet Equivalent Grades
| European Standard | BS (OLD) | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) | IS | Canadian |
| EN AW-2014 | HE15 | 3.1255 | A92014 | AlCu4SiMg | 2014 | AlCuSiMn | 24345 | B26S |
ASTM B209 Aluminium Alloy 2014 Sheet Specification
Standards : ASTM B209 / ASME SB209
Temper : O, T3,T4, T6, T651
Thickness : 0.2~300mm
Width : 500-2000mm
Length :To Clients’ Requirement
Surface : Bright, polished, hair line, brush, sand blast, checkered, embossed, etching, etc.
Finish : Mill, Customer specific finish
Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet
Aluminium Alloy 2014 Sheets Standard Specification
ASTM B209 - Standard Specification for Aluminum and Aluminum-Alloy Sheets
ASTM B632 / B632M - Standard Specification for Aluminum-Alloy Rolled Tread Sheets
ASTM B947 - Standard Practice for Hot Rolling Mill Solution Heat Treatment for Aluminum Alloy Sheets
ASTM B548 - Standard Test Method for Ultrasonic Inspection of Aluminum-Alloy Sheets for Pressure Vessels
AMS 4001 - Aluminum Sheet, 0.12Cu (1100-0), Annealed
AMS 4003 - Aluminum Alloy, Sheet, 0.12cu (1100-H14), Strain Hardened
Aluminium Alloy 2017 Sheet
We provide top-quality products at the best prices. The best mechanical machinery is utilised in the production of Aluminium Alloy 2017 Sheets. These plates are constructed from raw materials of the highest calibre. Along with aluminium itself, these plates largely contain silicon and magnesium. Aluminium Alloy 2017 Sheets have high strength and workability. These Aluminium Alloy 2017 Sheets are formed of wrought aluminium alloy, a material that can be heat treated and has respectable tensile and yield strengths.
Aluminium Alloy 2017 Sheet Equivalent Grades
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| AW-AlCu4MgSi | AU4G | 3.1325 | A92017 | AlCu4SiMg | 2017 | AlCuMg1 |
ASTM B209 Aluminium Alloy 2017 Sheet Specification
Standards : ASTM B209 / ASME SB209
Temper : O, T3,T4, T6, T651
Thickness : 0.2-250
Width : 100-2600
Length : 500-10000
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Sheet/ Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet
Aluminium Alloy 2017 Sheets Standard Specification
ASTM B209 - Standard Specification for Aluminum and Aluminum-Alloy Sheets
ASTM B632 / B632M - Standard Specification for Aluminum-Alloy Rolled Tread Sheets
ASTM B947 - Standard Practice for Hot Rolling Mill Solution Heat Treatment for Aluminum Alloy Sheets
ASTM B548 - Standard Test Method for Ultrasonic Inspection of Aluminum-Alloy Sheets for Pressure Vessels
AMS 4001 - Aluminum Sheet, 0.12Cu (1100-0), Annealed
AMS 4003 - Aluminum Alloy, Sheet, 0.12cu (1100-H14), Strain Hardened
Aluminium Alloy 2024 Sheet
Aluminium Alloy 2024 sheets are made from an age-hardening, high-strength aluminium alloy. These sheets are useful for optimum strength-to-weight ratio structures. The most well-known and frequently used composite material for flying machines is aluminium alloy 2024. It is immediately used on buildings and parts where a high quality to weight ratio is desired because of its excellent return quality and reasonably significant weakening resistance. Alloy 2024 is essential for precise fittings and parts because of its excellent machinability and dominating grain structure. Even though this amalgam has a low erosion resistance, resistance welding is still a viable option.
Aluminium Alloy 2024 Sheet Equivalent Grades
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| AW-AlCu4Mg1 | AU4G1 | 3.1355 | A92024 | AlCu4Mg1 | 2024 | AlCuMg2 |
ASTM B209 Aluminium Alloy 2024 Sheet Specification
Standards : ASTM B209 / ASME SB209
Temper : O, T3,T4, T6, T651
Thickness : 0.2-250
Width : 100-2600
Length : 500-10000
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Sheet/ Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet
Aluminium Alloy 2219 Sheet
We are an authorized supplier and manufacturer of aluminium 2219 sheets, boasting years of knowledge and experience. The product's exceptional qualities, such as its ability to withstand heavy loads, high tensile strength, longevity, flexibility, low maintenance, and dimensional perfection, have garnered it a strong reputation within the industry. Aluminium Alloy 2219 Sheet is an age-hardenable alloy containing copper and finds applications in high-temperature, structural, and high-strength elements. This alloy exhibits excellent mechanical properties and machinability. Its temperature range spans from -452°F to 600°F, making it weldable and offering good fracture toughness. Additionally, it demonstrates resistance to stress corrosion cracking in the T8 condition.
Aluminium Alloy 2219 Sheet Equivalent Grades
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| AW-AlCu4Mg1 | AU4G1 | 3.1355 | A92219 | AlCu4Mg1 | 2219 | AlCuMg2 |
ASTM B316 Aluminium Alloy 2219 Sheet Specification
Standards : ASTM B209, ASTM B316 / ASME SB209
Temper : 2219-0, 2219-T31, 2219-T81, 2219-T37, 2219-T87 2219-T351, 2219-T851
Thickness : 0.2-250
Width : 100-2600
Length : 500-10000
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Sheet/ Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet
Aluminium Alloy 5052 h22 Sheet
The greater resilience to caustic conditions of Aluminium Alloy 5052 h22 Sheets makes it particularly valuable. In the presence of air or water Aluminium Alloy 5052 h22 Sheets develop an oxide layer that prevents the chemically reactive aluminium from further interacting with the environment. Temperature, airborne pollutants, and the immediate working environment all affect corrosion resistance; yet, in ambient conditions, Aluminium Alloy 5052 h22 Sheets perform quite well.
Aluminium Alloy 5052 h22 Sheet Equivalent Grades
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| AW-AlMg2,5 | AG2,5C | 3.3523 | A95052 | AlMg2,5 | 5052 | AlMg2,5 |
ASTM B209 Aluminium Alloy 5052 h22 Sheet Specification
Standards : ASTM B209 / ASME SB209
Temper : O,H12,H14,H16,H18,H19,H22,H24,H26,H28,h22,h24,h26,h28,H111,H112,H114,H 116,h221
Thickness : 0.2-250
Width : 100-2600
Length : 500-10000
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Sheet/ Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet
Aluminium Alloy 5083 Sheet
Aluminium Alloy 5083 Sheet Equivalent Grades
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| AW-AlMg4,5Mn0,7 | AG4,5MC | 3.3547 | A95083 | AlMg4,5Mn0,7 | 5083 | AlMg4,5Mn |
ASTM B209 Aluminium Alloy 5083 Sheet Specification
Standards : ASTM B209 / ASME SB209
Temper : O,H12,H14,H16,H18,H19,H22,H24,H26,H28,h22,h24,h26,h28,H111,H112,H114,H 116,h221
Thickness : 0.2-250
Width : 100-2600
Length : 500-10000
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Sheet/ Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet
Aluminium Alloy 5086 Sheet
Aluminium Alloy 5086 Sheet Equivalent Grades
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| AW-AlMg4 | AG4MC | 3.3545 | A95086 | AlMg4 | 5086 | AlMg4Mn |
ASTM B209 Aluminium Alloy 5086 Sheet Specification
Standards : ASTM B209 / ASME SB209
Temper :O,H12,H14,H16,H18,H19,H22,H24,H26,H28,h22,h24,h26,h28,H111,H112,H114,H 116,h221
Thickness : 0.2-250
Width : 100-2600
Length : 500-10000
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Sheet/ Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet
Aluminium Alloy 6061 Sheet
The Aluminium Alloy 6061 Sheets develop an oxide layer when exposed to air or water, making it non-reactive with substances that would normally corrode the underlying metal. Corrosive effects in air and water are typically insignificant at ambient temperatures, but corrosion resistance varies depending on atmospheric and aquatic conditions
Aluminium Alloy 6061 Sheet Equivalent Grades
| UNS | EN | DIN | ISO | BS (OLD) | USA | WNR |
| A96061 | AW-AlMg1SiCu EN AW-6061 |
AlMgSiCu | AlMg1SiCu | HE20 | AA6061 | 3.3211 |
ASTM B209 Aluminium Alloy 6061 Sheet Specification
Standards : ASTM B209 / ASME SB209
Temper : O, T3,T4,T5, T6, T651 T6511
Thickness : 0.2-250
Width : 100-2600
Length : 500-10000
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Sheet/ Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet
Aluminium Alloy 6082 Sheet
Aluminium Alloy 6082 Sheet Equivalent Grades
| UNS | EN | DIN | ISO | BS (OLD) | USA | WNR |
| A96082 | AW-6082 | AlMgSi1 | Al Si1MgMn | HE30 | AA6082 | 3.2315 |
ASTM B209 Aluminium Alloy 6082 Sheet Specification
Standards : ASTM B209 / ASME SB209
Temper : O, T3,T4,T5, T6, T651 T6511
Thickness : 0.2-250
Width : 100-2600
Length : 500-10000
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Sheet/ Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet
Aluminium Alloy 7075 Sheet
Aluminium Alloy 7075 Sheet Equivalent Grades
| UNS | EN | DIN,WNr | JIS | AFNOR | ISO | BS | GOST |
| A97075 | ENAW-AlZn5.5MgCu EN AW-7075 |
3.4365 AlZnMgCu1.5 |
7075 | 7075 A-Z5GU | AlZn6MgCu | 7075 L95 L96 | V95 |
ASTM B209 Aluminium Alloy 7075 Sheet Specification
Standards : ASTM B209 / ASME SB209
Temper : T3,T4,T5, T6, T651 T6511
Thickness : 0.2-250
Width : 100-2600
Length : 500-10000
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Sheet/ Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet
Aluminium Alloy HE-20 Sheet
Aluminium Alloy HE-20 Sheet Equivalent Grades
| STANDARD | UNS | WERKSTOFF NR. |
| Aluminium HE-20 | A96061 | 3.3211 |
ASTM B209 Aluminium Alloy HE-20 Sheet Specification
Standards : ASTM B209 / ASME SB209
Temper : O, T3,T4, T6, T651
Thickness : 0.2-250
Width : 100-2600
Length : 500-10000
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching, etc.
Finish :Mill, Customer specific finish
Aluminum Sheet/ Plate Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet
Aluminium Alloy HE-30 Sheet
Aluminum He30 is a medium-strength alloy that resists corrosion well. It is the strongest alloy in the 6000 family. Aluminum He30 | Aluminum 6082 is a structural alloy. The addition of a large amount of manganese within it controls the grain structure, resulting in a stronger alloy. Producing thin-walled, complex extrusion forms in aluminum HE-30 is tough. The extruded surface finish is not as smooth as that of other 6000 series alloys of comparable strength. It is difficult to produce thin-walled, convoluted expulsion forms in Aluminum He30.
