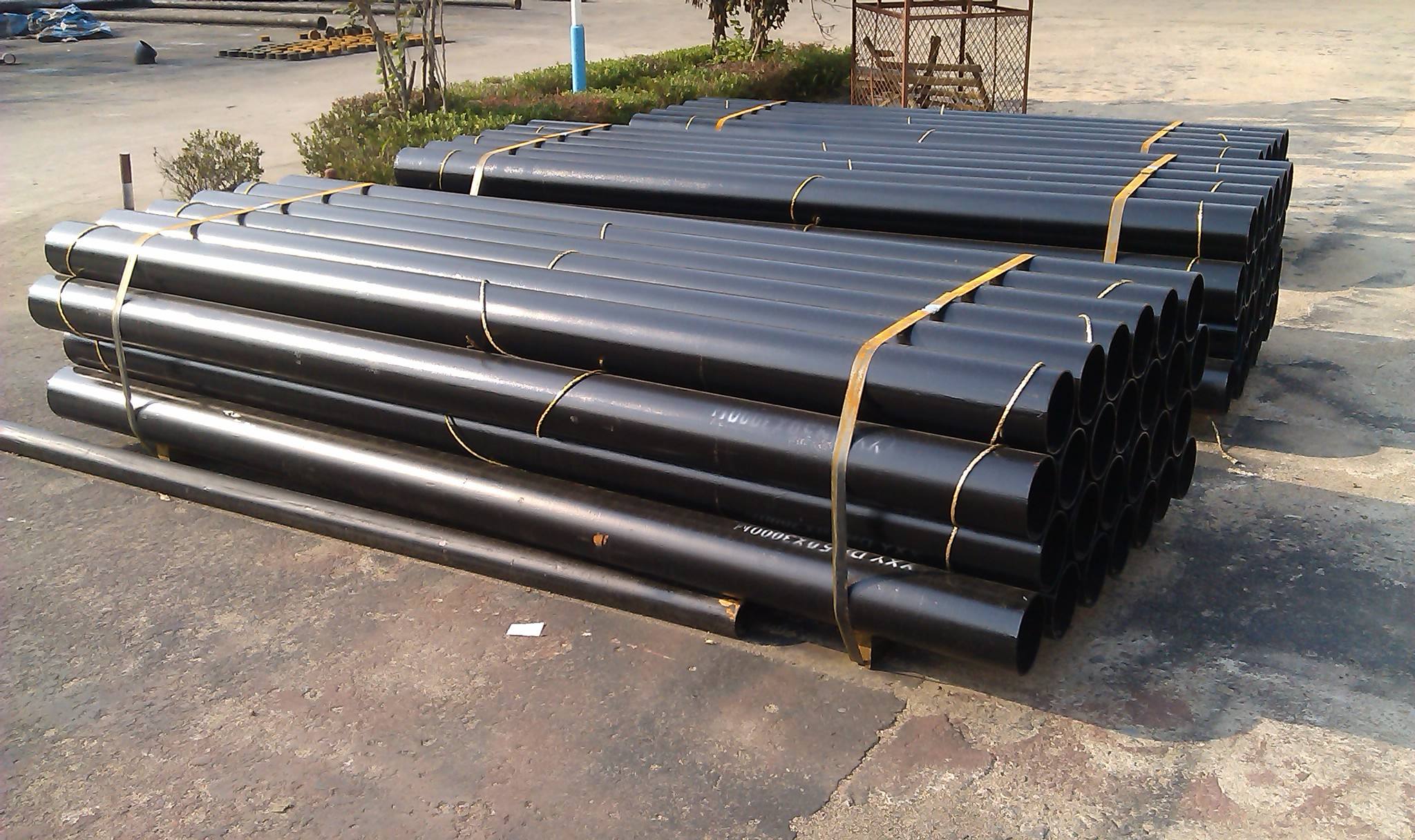

Carbon Steel Seamless ERW Pipes
The dimensions are based on the ASTM, ASME and API standards. The most use cases are in the oil and gas industry and in the petrochemical applications. The ASTM A106 Grade B Seamless Pipe varies in sizes from ½ inches to 36 inches in nominal bore size and 3mm to 12mm in the wall thickness.
ASME SA106 GRB CS Welded Pipe Specification List
| Standards | ASTM, ASME and API, ANSI B 36.10 |
|---|---|
| Craft | Cold rolled and Cold drawn |
| ANSI Standard | B1.20. |
| Grades | ASTM A106 Grade A, Grade B, Grade C |
| Type | ERW / Seamless / Fabricated / Welded |
| Size | 1/2” NB to 36” NB |
| Length | Minimum 3 Meters, Maximum 18 Meters |
| Thickness | 3-12mm |
| Specialized in | Large Diameter ASTM A106 Grade B Pipe |
| Schedules | Schedule 20, 30, 40, Standard (STD), Extra Heavy (XH), 80, 100, 120, 140, 160, XXH & heavier |
| ASME Standard | B36.10M |
| Tolerance | Cold drawn pipe: +/-0.1mm
Cold rolled pipe: +/-0.05mm |
| End | Plain End, Beveled End, Treaded |
ASTM A106 Gr B Pipe Weight Chart Diameter
| NPS [DN Designator] | Over | Under | ||
|---|---|---|---|---|
| in. | mm | in. | mm | |
| 1/8 to 1-1/2 [6 to 40], incl | 1/64 (0.015) | 0.4 | 1/64 (0.015) | 0.4 |
| Over 1-1/2 to 4 [40 to 100], incl | 1/32 (0.031) | 0.8 | 1/32 (0.031) | 0.8 |
| Over 4 to 8 [100 to 200], incl | 1/16 (0.062) | 1.6 | 1/32 (0.031) | 0.8 |
| Over 8 to 18 [200 to 450], incl | 3/32 (0.093) | 2.4 | 1/32 (0.031) | 0.8 |
| Over 18 to 26 [450 to 650], incl | 1/8 (0.125) | 3.2 | 1/32 (0.031) | 0.8 |
| Over 26 to 34 [650 to 859], incl | 5/32 (0.156) | 4.0 | 1/32 (0.031) | 0.8 |
| Over 34 to 48 [850 to 1200], incl | 3/16 (0.187) | 4.8 | 1/32 (0.031) | 0.8 |
Equivalent Material Of ASTM A106 GR. B Carbon Steel Pipes
| Former | New | |||
|---|---|---|---|---|
| Execution | Standard | Material | Standard | Material |
| Seamless | EN 10216-4 | P265NL | ASTM A333 | GRADE 6 |
| Seamless | EN 10216-2 | P265GH | ASTM A106 | GRADE B |
| Welded | EN 10208-2 | L360NB | API 5L | Grade X52 |
| Welded | EN 10208-2 | L245NB | API 5L | Grade B |
| Seamless | EN 10208-2 | L360NB | API 5L | Grade X52 |
| Seamless | EN 10208-2 | L245NB | API 5L | Grade B |
Carbon Steel Pipe Grades And Specifications
| Dimensions | ASME, ASTM, and API |
| Type | Welded / ERW / Seamless / Fabricated |
| Form | Hydraulic, Round, Etc |
| Size | 1/2 NB to 36 NB |
| Length | Minimum 3 to Maximum 18 Meters |
| Thickness | 3-12mm |
| End | Beveled End, Plain End, Threaded |
| Schedules | Schedule 40, 80, 160, XS, XXS |
MS Rectangular Pipe
MS rectangular pipe, also known as mild steel rectangular pipe, is a hollow structural profile (HSS) made of mild steel. They are made from mild steel, which is a type of carbon steel with low carbon content, making it ductile and easy to weld and shape. MS pipes are pipes made from steel, which has a carbon content of less than 0.25%. There are different grades of mild steel depending upon the carbon content present in the steel. Rectangular tubes can be divided into two types: seamless rectangular tubes and welded rectangular tubes according to the production process. According to different cross-sectional shapes, they can be divided into square tubes and rectangular tubes. Other elements may be added to this steel for enhancing its corrosion resistance, wear resistance and tensile strength. The high level of weldability and machinability of this type of steel makes it highly suitable for a range of applications including piping and tubing.
Properties of Rectangular MS Steel Pipes
1. Material Composition Mild Steel: Composed primarily of iron with a small percentage of carbon (typically 0.16-0.29%), mild steel is known for its malleability and ductility, making it easy to weld, cut, and form.2. Dimensions Width x Height: Rectangular pipes are defined by their external dimensions, usually given as width x height. Thickness: The thickness of the pipe wall can vary, influencing the pipe's strength and weight. Length: Typically available in standard lengths, which can be cut to size as required.
3. Mechanical Properties Tensile Strength: Typically ranges between 345-690 MPa, depending on the grade of the steel used. Yield Strength: Often around 250 MPa for general structural use. Ductility: Mild steel has good ductility, allowing it to deform under stress without breaking. Hardness: Lower hardness compared to high-carbon steels, but still sufficient for most structural purposes.
Applications
- 1. They are used for structural purposes such as making industrial sheds. Rectangular MS pipes can be used for making strong frames and the shed can be completed with steel sheets.
- 2. They are used for making bridges.
- 3. They are used extensively in making radio masts and telecom towers.
- 4. They are used in creating a mine roof support system.
- 5. They are needed for constructing scaffoldings.
- 6. They can also be used for constructing fences.
MS Square Pipe
MS Square Pipes, or Mild Steel Square Pipes, are widely recognized for their versatility and strength, making them a popular choice across numerous industries. These pipes are characterized by their square cross-section, which provides excellent structural support and uniformity. MS Square Pipes are extensively used in construction, automotive, furniture, and general engineering applications due to their ability to withstand heavy loads and their ease of fabrication and welding. Their popularity stems from their adaptability in various projects, including building frameworks, support structures, and mechanical applications. The uniform shape and dimensions of MS Square Pipes ensure consistent performance and aesthetic appeal, which is particularly valuable in architectural and design projects.
MS Square Pipe Specification
| Product Name | MS Square Pipes |
| Brand | Ferrite Structural Steels Pvt Ltd. |
| Minimum Order Quantity | 1 Ton |
| Material | Mild Steel |
| Finish | Painted, galvanized, or standard mill finish |
MS Square Pipe Size Chart
| SIze in mm | Approximate Weight and Thickness |
| 19 X 19 | 3 – 4.5 kg (1.2mm) |
| 19 X 19 | 5 – 5.5 kg (1.6mm) |
| 19 X 19 | 6.2 – 6.5kg (2 mm) |
| 25 X 25 | 4-5kg (1.2mm) |
| 25 X 25 | 6.3 kg (1.4 mm) |
| 25 X 25 | 7.2 kg (1.6mm) |
| 25 X 25 | 9 kg (2.0mm) |
| 25 X 25 | 11 kg (2.5 mm) |
| 30 X 30 | 8kg (1.6mm) |
| 30 X 30 | 10.5kg (2.0mm) |
| 30 X 30 | 12.5kg (2.3mm) |
| 38 X 38 | 8kg (1.2mm) |
| 38 X 38 | 10 -11.5 (1.6mm) |
| 38 X 38 | 14 kg (2mm) |
| 38 X 38 | 16-17kg (2.5mm) |
| 38 X 38 | 19kg (3.2mm) |
| 38 X 38 | 22 kg (3.5mm) |
| 50 X 50 | 10-11kg (1.2mm) |
| 50 X 50 | 15kg (1.6mm) |
| 50 X 50 | 18kg (2mm) |
| 50 X 50 | 23kg (2.5mm) |
| 50 X 50 | 25kg (2.9mm) |
| 60 X 60 | 23kg (2.5mm) |
| 72 X 72 | 22kg (1.6mm) |
| 72 X 72 | 27kg (2 mm) |
| 72 X 72 | 34kg (2.5 mm) |
| 80 X 80 | 37Kg (2.5mm) |
| 100 X 100 | 51 – 53kg (2.9mm) |
Major Features and Benefits
- High Strength: MS Square Pipes are known for their superior strength, providing excellent support in structural applications. This makes them ideal for use in construction projects, including frameworks, scaffolding, and load-bearing structures.
- Uniformity: The square cross-section of these pipes ensures uniform strength and consistency throughout their length. This uniformity is crucial for projects requiring precise measurements and stable structures.
- Ease of Fabrication: MS Square Pipes are easy to cut, bend, and weld, which simplifies the fabrication process. This ease of fabrication allows for greater flexibility in design and construction, enabling custom solutions for specific project needs.
- Durability: Made from mild steel, these pipes offer durability and long-lasting performance. They can withstand significant wear and tear, making them suitable for heavy-duty applications.
- Corrosion Resistance: When properly coated or galvanized, MS Square Pipes exhibit enhanced resistance to corrosion. This feature extends their lifespan, especially in outdoor or harsh environments, reducing maintenance costs over time.
- Cost-Effective: MS Square Pipes are generally more affordable than other types of metal pipes, offering a cost-effective solution without compromising on quality or performance. This makes them an attractive option for budget-conscious projects.
- Recyclability: Mild steel is a highly recyclable material, and MS Square Pipes are no exception. Their recyclability contributes to environmental sustainability, aligning with green building practices and reducing the overall environmental impact.
Applications of MS Square Pipes
- Construction: MS Square Pipes are integral to the construction industry, used for building frameworks, structural supports, and scaffolding. Their high strength and uniform dimensions provide stability and reliability for various construction projects, including residential, commercial, and industrial buildings.
- Automotive Industry: In the automotive sector, MS Square Pipes are used for making chassis, frames, and other structural components. Their ability to withstand significant stress and impact makes them suitable for various automotive applications, contributing to the safety and durability of vehicles.
- Fabrication and Engineering: MS Square Pipes are used in general fabrication and engineering applications for making tools, machinery, and equipment. Their ease of welding and forming allows for customized solutions to meet specific engineering requirements.
- Agricultural Equipment: In agriculture, MS Square Pipes are used to construct equipment, storage units, and fencing. Their durability and resistance to environmental factors make them ideal for outdoor use in farming environments.
- Architectural Applications: Due to their aesthetic appeal, MS Square Pipes are utilized in architectural designs for railings, gates, and decorative elements. Their sleek and modern look enhances the visual appeal of buildings and structures.
- Signage and Hoardings: These pipes are used to construct frames for billboards, signages, and hoardings. Their robustness ensures that the structures can withstand wind loads and other environmental stresses.
- Infrastructure Projects: MS Square Pipes are employed in infrastructure projects such as bridges, flyovers, and public utilities. Their ability to support heavy loads and resist environmental degradation is crucial for the longevity and safety of these projects.
- DIY and Craft Projects: Hobbyists and DIY enthusiasts use MS Square Pipes for various craft projects and custom builds. Their ease of handling and versatility make them a favorite material for creative applications.
