High Speed Steel

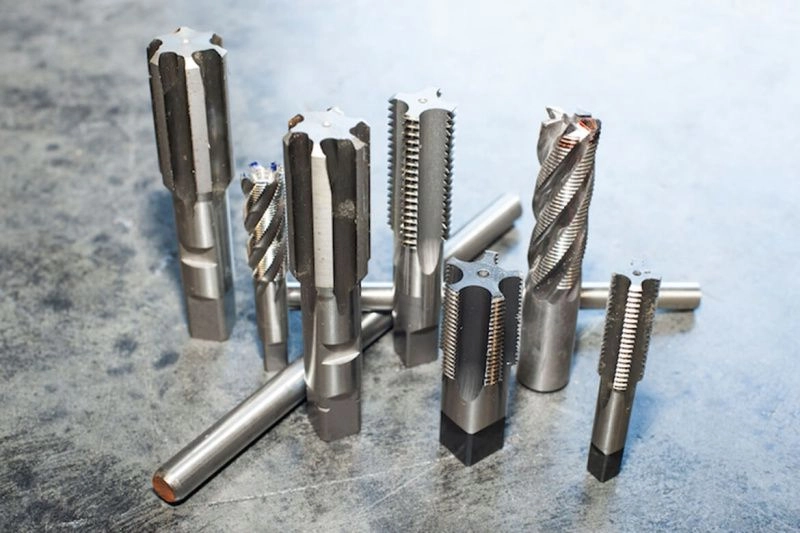

High speed steel is a type of steel alloys, typically used during steel for cutting tools. This is also used in propellers bits and drill on electric-saw. High-speed steels provide specialized mechanical and physical characteristics which make them better proponents for production processes with such an optimized series of good strength , wear resistance, hardness and durability.Commonly used during metal cutting like bent drill bits, taps, cutters for grinding, saws, knives etc. High speed and light slashes also generally used during cold work uppercuts and dies and cutting procedures. Globally, the M2 sort is perhaps the most prominent high speed steel simply replacing T1 high speed due to its excellent characteristics and relative efficiency in most methods.

Product Specification

  MATERIAL   CHEMISTRY Application
AISI/ASTM EN DIN JIS C S P SI Mn Cr Co V W Mo
M2 6/5/2 1.3343 SKH51 0.86 - 0.94 ≤0.003 ≤0.003 0.20 - 0.45 0.20 - 0.40 3.80 - 4.50   1.70 - 2.10 5.90 - 6.70 4.70 - 5.20 Twists, drills, die chasers, taps, rotating files, outlers, broaches, wood working tools.
M2A       0.83 - 0.85 Max 0.010 Max 0.030 0.30 - 0.40 0.20 - 0.40 3.90 - 4.20   1.80 - 1.90 6.00 - 6.20 4.80 - 4.85 Hobs, knives and milling cutters
M2B       0.89 ≤0.003 ≤0.026     4.15   1.90 6.20 4.80 drill bits, screw taps, milling cutters, drawing tools , roller cutters etc
M35 6/5/2+5% 1.3243 SKH55 0.88 - 0.96 ≤0.03 ≤0.03 0.20 - 0.45 0.20 - 0.40 3.80 - 4.50   1.70 - 2.00 6.00 - 6.70 4.55 - 5.50 Tools for roughing work at very high speed on steel and cast iron, high performance twist drills, cutters, taps.
M35A       0.91 ≤0.003       4.00 4.85 1.92 6.00 4.80
M-42 2/10/1/8 1.3247 SKH59 1.08 ≤0.020 ≤0.001 0.30 0.30 3.95 7.85 1.15 1.45 9.40 Tools used in processing of Ni, Ti, alloy steels. Abrasion resistant and impact resistant tools, trimming dies, screw dies, formed punches
TG4241       0.90 - 0.95 ≤0.020 ≤0.030 0.80 - 1.20 0.25 - 0.40 4.00 - 4.50   0.80 - 1.00 1.80 -2.50 1.00 - 1.20 drills taps, saw bits
TG4341       0.83 - 0.93 ≤0.020 ≤0.030 0.70 - 1.00 0.20 - 0.40 3.80 - 4.40   1.20 - 1.80 3.50 - 4.50 2.50 - 3.50 drills taps, saw bits

Equivalent grades:
STANDARD BRAZIL AUSTRIA SWEDEN GERMANY SLOVANIA ITALY JAPAN S.KOREA TAIWAN CHEZ.
REP 		CHINA AMERICAN
MOULD
STEEL 		VILLARES BOHLER AASAB BUDERUS DEW GRODITZ RAVNE LUCCHINI VARONA DAIDO HITACHI NIPPON SANYO DOOSAN GLORIA POLDI EST AISI
1.3343 VWM2 S600 - - 1.3343 - BRM2 - - MH51 YXM1 H51 QH51 - - MAX SP MO5S DF6 M-2
1.3243 VK5E S705 - - 1.3243 - BRCMO - - MH55 YXM4 HM35 - - - MAXSP
75D 		DF35 M-35
1.3247 VKM42 S500 - - 1.3247 - BRCMO-2 - - - YXM42 HM42 - - - MAXEX
42 		DF42 M-42
1.3355 - S200 - - 1.3355 - BRW - - WH2 - - - - - DF18 T-1
1.3255 - S305 - - 1.3255 - BRC - - WH3 - - - - - - T-4
1.3207 VK10E S700 - - 1.3207 - BRU - - - - - - - RADECO
M10 		- T-42

Chemical composition:

CARBON C % SILICON Si% MANGANESE Mn% CHROMIUM Cr% MOLYBDENUM Mo% TUNGSTEN W% VANADIUM V% COLBALT Co% PHOSPHORUS P% SULPHUR
S% 		NICKEL Ni%
AISI M2 0.78-0.88 0.20-0.40 0.20-0.40 3.75-4.50 4.50-5.50 5.50-6.75 1.6O-2.20 - ≤ 0.035% ≤ 0.035%
AISI M35 0.85-0.95 0.00-0.40 0.00-0.40 3.75-4.50 4.75-5.25 6.00-6.75 1.75-2.15 4.60-5.20 ≤ 0.035% ≤ 0.035% 0.00-0.40
AISI M42 1.05-1.15 0.15-0.65 0.15-0.40 3.50-4.25 9.0O-10.00 1.15-1.85 0.95-1.35 7.75-8.75 ≤ 0.035% ≤ 0.035%
AISI T1 0.65-0.75 0.20-0.40 0.20-0.40 3.75-4.50 - 17.25-18.75 0.9O-1.30 - ≤ 0.035% ≤ 0.035%
AISI T4 0.70-0.80 0.20-0.40 0.20-0.40 3.75-4.50 0.7O-1.00 17.25-18.75 0.8O-1.20 4.25-5.75 ≤ 0.035% ≤ 0.035%
AISI T5 0.75-0.85 0.20-0.40 0.20-0.40 3.75-4.50 0.7O-1.00 17.5O-19.00 1.8O-2.40 7.00-9.00 ≤ 0.035% ≤ 0.035%
AISI T42 1.25-1.40 0.00-0.40 0.00-0.40 3.75-4.50 2.75-3.50 8.50-9.50 2.75-3.25 9.0O-10.00 ≤ 0.035% ≤ 0.035% 0.00-0.40

M2

M2 is a tungsten-molybdenum high-speed steel. It is a popular grade for general purpose cutting and non-cutting application. It has a wider heat-treating range than most of the molybdenum high-speed steels, coupled with a resistance to decarburization that is a characteristic property of tungsten types. M2 offers an excellent combination of red-hardness, wear resistance, and toughness. We have made M2 available in a wide variety of shapes and sizes. As with all Alro Specialty Metal products, M2 is subjected to a variety of inspection and rigid quality control tests to ensure quality, uniformity, and reliability.

High-speed steel featuring high resistance to adhesive and abrasive wear in combination with high toughness and compressive strength. Blocks for eroding, cold forming tools such as cutting, fine blanking and impact extrusion punches and dies inserts with a very high wear resistance.

Application:

Broaches, Boring Tools, Chasers, Cold Forming Rolls, Cold Heading Inserts, Drills, End Mills, Form Tools, Hobs, Lathe and Planer Tools, Punches, Milling Cutters, Taps, Reamers, and Saws.

Chemical composition:

CARBON C % SILICON Si% MANGANESE Mn% CHROMIUM Cr% MOLYBDENUM Mo% TUNGSTEN W% VANADIUM V% SULPHUR
S% 		PHOSPHORUS P%
AISI M2 0.78-0.88 0.20-0.40 0.20-0.40 3.75-4.50 4.50-5.50 5.50-6.75 1.6O-2.20 ≤ 0.035% ≤ 0.035%

Heat treatment:
Annealing 770 - 840 °C
Hardness after annealing Max. 300 HB
Stress relieving 600 - 650 °C
Hot forming 1100 - 900 °C
Hardening 1190 - 1230 °C
Quenching media Oil, Salt bath,vacuum
Hardness after quenching 52 - 56 HRC
Hardness after tempering :
300°C 400°C 500°C 550°C 600°C 650°C
HRC 61.5 62 65 65 63 57

M35

Cobalt added M2 high speed steel in which the cobalt addition provides hot hardness, The improved hot hardness makes the steel suitable for machining high-strength and prehardened steels, high-hardness alloys.

Application:

Twist drills, taps, milling cutters, reamers, broaches, saws, knives, and hobs.

Heat Treatment:
Annealing 770 - 840 °C
Hardness after annealing Max. 300 HB
Stress relieving 600 - 650 °C
Hot forming 1100 - 900 °C
Hardening 1190 - 1230 °C
Quenching media Oil, Salt bath,vacuum
Hardness after quenching 52 - 56 HRC
Hardness after tempering :
300°C 400°C 500°C 550°C 600°C 650°C
HRC 62 62 64 65 63 56

M42

M42 is a molybdenum-cobalt high-speed steel capable of being hardened to 70 Rockwell C. The carbon content is higher than in most high-speed steels, and with this balanced composition, contributes to wear resistance and hot hardness as well as the high hardness capability. M42 exhibits good grindability and relatively good toughness at high hardness levels. M42 is being used for the machining of heat treated materials (high hardness) and high temperature alloys.

 Application:

Broaches, Circular and Dovetail Form Tools, Drills, End Mills, Lathe Tools, Milling Cutters, Punches, Reamers, Slitting Saws, and Twist Drills.

Chemical composition:

CARBON C % SILICON Si% MANGANESE Mn% CHROMIUM Cr% MOLYBDENUM Mo% TUNGSTEN W% VANADIUM V% COLBALTCo% SULPHUR
S% 		PHOSPHORUS P%
AISI M42 1.05-1.15 0.15-0.65 0.15-0.40 3.50-4.25 9.0O-10.00 1.15-1.85 0.95-1.35 7.75-8.75 ≤ 0.035% ≤ 0.035%

Heat treatment:
Annealing 770 - 840 °C
Hardness after annealing Max. 280 HB
Stress relieving 600 - 650 °C
Hot forming 1100 - 900 °C
Hardening 1170 - 1210 °C
Quenching media Oil, Salt bath,vacuum
Hardness after quenching 67 - 69 HRC
Hardness after tempering :
300°C 400°C 500°C 550°C 600°C 650°C
HRC 60.5 61.5 66 68 64 50

T1

Tungsten based high-speed steel, Good combination of toughness and red-hardness. High  resistance to wear and softening. Relatively easy to harden.

Application:

T1 high speed steel is the most widely used tungsten is a general type of high speed steel, high temperature hardness and red hardness and hardness is high, easy to grinding. Apply for working temperature below 600 ℃ can still keep the cutting performance of cutting tools, such as vehicles, shaver, milling, reaming, broach, drilling, gear cutting tools and tap, die, etc., And make high temperature abrasion machine parts.

Chemical composition:

CARBON C % SILICON Si% MANGANESE Mn% CHROMIUM Cr% TUNGSTEN W% VANADIUM V% PHOSPHORUS P% SULPHUR
S%
AISI T1 0.65-0.75 0.20-0.40 0.20-0.40 3.75-4.50 17.25-18.75 0.9O-1.30 ≤ 0.035% ≤ 0.035%

Heat treatment:

Annealing 770 - 840 °C
Hardness after annealing Max. 280 HB
Stress relieving 600 - 650 °C
Hot forming 1100 - 900 °C
Hardening 1190 - 1230 °C
Quenching media Oil, Salt bath,vacuum
Hardness after quenching 64 - 66 HRC
Hardness after tempering :
300°C 400°C 500°C 550°C 600°C 650°C
HRC 63 62 65 65 63 58
