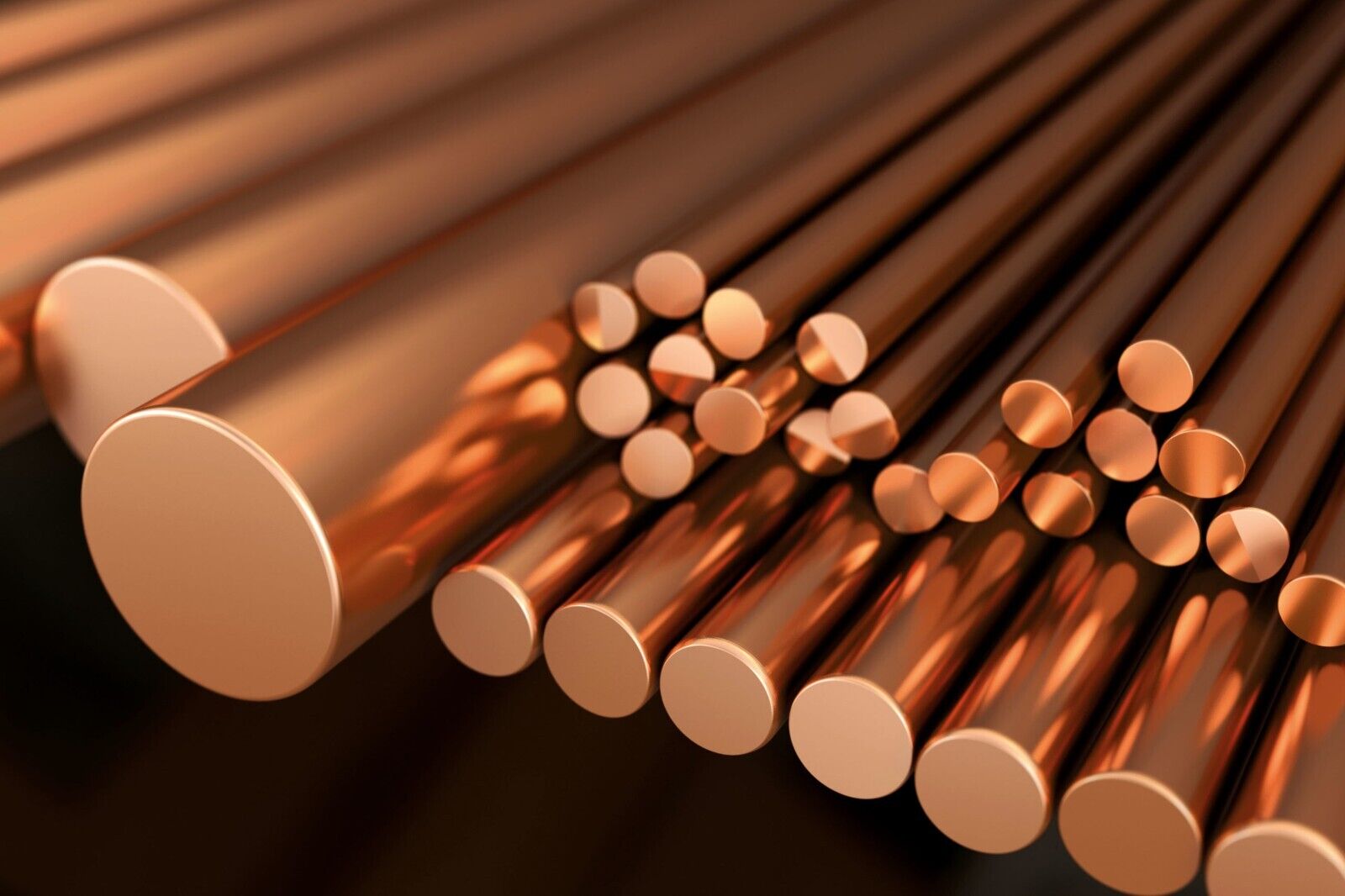

Copper Rod
Sizes Of Copper Brazing Rod
| ETP GRADE | |
|---|---|
| Copper Hex Bar | ø 8 mm to 110 mm |
| Copper Round | ø 7 mm to 120 mm |
| Copper Square Bar | 10*10 mm to 90*90 mm |
| Electrical Conductivity: – (% IACS) | 98.5% min |
| Standards | BS EN 13601:2013, IS: 191, 1897 & 613 |
| Specifications | Cu : 99.90%, 02<400ppm |
| Copper Round Rod C101 | |
|---|---|
| 6.3mm (1/4") | 38.1mm (1 1/2") |
| 9.5mm (3/8") | 30mm |
| 12.7mm (1/2") | 25.4mm (1") |
| 12mm | 25mm |
| 10mm | 20mm |
| 16mm | 19mm (3/4") |
- Drawn Bars: 2000 – 6000 (max. 3000 mm soft temper ).
- Hexagonal, Drawn Round, and Square Rods: 2000 – 4000 (max. 3000 mm soft temper )
- Extruded Rods and Bars: 1000 – 4000 mm
| Outside Diameter | 3.00 to 60.00 Mm |
|---|---|
| Copper Rods Sizes | 3.00 to 170.00 Mm |
| Copper Bars Length | 3 Meter & Above (Straight Lengths / Coils) |
| Tempers | Soft and Light Annealed, Hard Drawn Tempers |
| Purity | Copper – 99.99% |
| Density gm/cc | 8.9 gm/cc |
| Copper Rectangular Rod Standards | JISH3300-2006, GB/T5231-2001, ASTM B187, JISH3250-2006, GB/T1527-2006, JISH3100-2006 |
| Shapes | Squares, Rounds, Hexagons, Flats or Custom |
| Copper Square Rods Grades | C101/C102/C103 B170/B379 |
| Material | Silver Bearing Copper, Electrolytic Tough Pitch (ETP), Chromium Copper, Oxygen Free High Conductivity Copper (OFHC),Cadmium Copper |
| Copper Hex Rods Finish | Bright Polished, Black, No. 4 finish, Rough Turned |
| Copper Alloy Flat Bars Uses | Panel Electrification Lines, Earthing Rods, Automobile Industries |
Weight Chart Of Copper Earth Rod
| Diameter in mm | Weight in Kg/m |
|---|---|
| 8 | 0,447 |
| 6 | 0,252 |
| 9,5 | 0,631 |
| 12 | 1,007 |
| 11 | 0,846 |
| 60 | 25,164 |
| 12,5 | 1,092 |
| 14 | 1,370 |
| 42 | 12,330 |
| 13 | 1,181 |
| 70 | 34,251 |
| 16 | 1,789 |
| 80 | 44,736 |
| 38 | 10,094 |
| 35 | 8,563 |
| 50 | 17,475 |
| 40 | 11,184 |
| 20 | 2,796 |
| 19 | 2,523 |
| 22 | 3,383 |
| 28 | 5,480 |
| 30 | 6,291 |
| 25 | 4,369 |
| 32 | 7,158 |
| 45 | 14,155 |
Copper Round Stock
Copper Alloy Flat Bar
Copper Hex Bar
Cu Square Bar
Copper Rectangle Bars
Copper Brazing Rod
Copper Earth Rod
Ground Rod Copper
Copper Welding Rod
Introduction to Copper Square Bar
Copper square bars are solid copper bars with a square cross-section. Known for their excellent electrical and thermal conductivity, copper square bars are widely used in electrical applications, construction, and industrial machinery. They are also valued for their durability, corrosion resistance, and ease of fabrication. Copper square bars are available in various sizes and are often used in the manufacture of electrical components, grounding systems, and structural supports.
Applications of Copper Square Bar
- Electrical Conductors: Used in switchgear, transformers, and electrical panel boards.
- Busbars: Commonly used in electrical distribution systems due to their high conductivity.
- Construction and Architecture: Employed in building facades, roofing, and decorative elements.
- Industrial Machinery: Utilized in manufacturing equipment, heat exchangers, and power plants.
- Automotive Industry: Used in battery terminals and grounding components.
- Aerospace Applications: Found in aircraft wiring and high-performance electrical components.
- Jewelry and Crafting: Popular in artistic designs, sculptures, and handcrafted metalwork.
