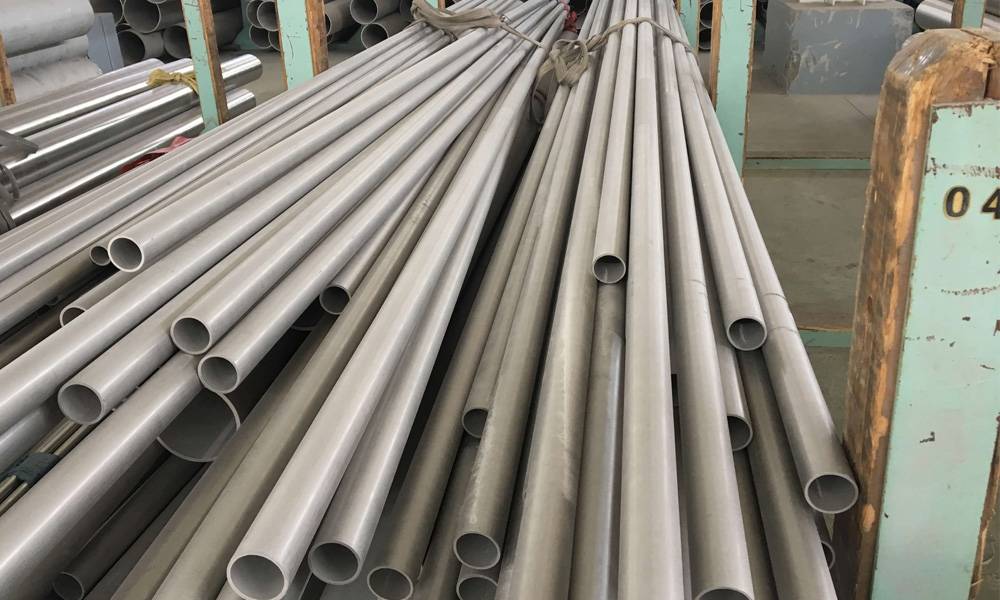

Super Duplex Steel Pipes & Tubes
Super Duplex is an alloy which has a combination of elements like chromium, molybdenum and nickel. These Super Duplex Steel Pipe and Tubes have exceptional corrosion resistance properties. These pipes and tubes are resistant to general corrosion, pitting corrosion and crevice corrosion. These Super Duplex Steel Pipes and Tubes have amazing tensile strength and yield strength. These pipes and tubes have good ductility and toughness.These super duplex steel pipes and tubes are widely used in multiple industries and applications. They are used in equipment for the oil and gas industry, Heat exchangers, process and service water systems, fire-fighting systems and water systems are all examples of offshore platforms. Heat exchangers, vessels, and pipelines are all used in the chemical process industry. Desalination facilities, high-pressure RO plants, and seawater pipes are all examples of seawater piping. High-strength, corrosion-resistant parts, mechanical and structural components FGD systems for the power industry, utility and industrial scrubber systems, absorber towers, ducting, and piping.
Specification For SDSS S32760 Pipes / Tubes
| Specification | ASTM A790, A789 / ASME SA789, SA789 |
|---|---|
| Seamless Pipes & Tubes Size | 1 / 8″ NB – 24″ NB |
| ERW Pipes & Tubes Size | 1 / 8″ NB – 36″ NB |
| EFW Pipes & Tubes Size | 6″ NB – 100″ NB |
| Standard | ASTM, ASME and API |
| Length | Single Random, Double Random & Required Length |
| Outer Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB |
| Thickness | 0.3mm – 50 mm |
| Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Types | Seamless / ERW / EFW / Welded / Fabricated / LSAW Pipes |
| Form | Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes |
| End | Plain End, Beveled End, Treaded |
Super Duplex Steel Pipes Supply Range
| Product Description | Wall Thickness, WT (in milimeter) | Outside Diamter, OD (in milimeter) | |
| Super Duplex Steel Seamless Round Pipe/Tube | 0.05 to 30 | 6 to 630 | |
| Super Duplex Steel Seamless Square Pipe/Tube | 0.05 to 30 | 12.7 * 12.7 to 300 * 300 | |
| Super Duplex Steel Seamless Rectangular Pipe/Tube | 0.05 to 30 | 10*20 to 100*200 | |
| Super Duplex Steel Seamless Colour Coated Pipe/Tube | 0.05 to 30 | 6 to 630 | |
| Super Duplex Steel Seamless Ornamental Tubes | 0.05 to 2.0 | 12.7 to 76.2 | |
| Super Duplex Steel Seamless Electropolished Pipes/Tubes | 0.05 to 30 | 12.7 to 250 | |
| Super Duplex Steel Seamless Slot Round Pipe/Tube | 0.05 to 2.0 | 12.7 to 76.2 | |
Super Duplex Steel Tubes Dimensions
| TUBE O.D. | WALL THICKNESS (INCHES) | |||||||||||||||||||||||||
| TUBE GAUGE | ||||||||||||||||||||||||||
| 00 | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | |
| TUBE I.D. | ||||||||||||||||||||||||||
| 0.380 | 0.340 | 0.300 | 0.284 | 0.259 | 0.238 | 0.220 | 0.203 | 0.180 | 0.165 | 0.148 | 0.134 | 0.120 | 0.109 | 0.095 | 0.083 | 0.072 | 0.065 | 0.058 | 0.049 | 0.042 | 0.035 | 0.032 | 0.028 | 0.025 | 0.022 | |
| 1/4″ | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 0.010 | 0.032 | 0.060 | 0.084 | 0.106 | 0.120 | 0.134 | 0.152 | 0.166 | 0.180 | 0.186 | 0.194 | 0.200 | 0.206 |
| 3/8″ | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 0.015 | 0.045 | 0.079 | 0.107 | 0.135 | 0.157 | 0.185 | 0.209 | 0.231 | 0.245 | 0.259 | 0.277 | 0.291 | 0.305 | 0.311 | 0.319 | 0.325 | 0.331 |
| 1/2″ | N/A | N/A | N/A | N/A | N/A | 0.024 | 0.060 | 0.094 | 0.140 | 0.170 | 0.204 | 0.232 | 0.260 | 0.282 | 0.310 | 0.334 | 0.356 | 0.370 | 0.384 | 0.402 | 0.416 | 0.430 | 0.436 | 0.444 | 0.450 | 0.456 |
| 5/8″ | N/A | N/A | 0.025 | 0.057 | 0.107 | 0.149 | 0.185 | 0.219 | 0.265 | 0.295 | 0.329 | 0.357 | 0.385 | 0.407 | 0.435 | 0.459 | 0.481 | 0.495 | 0.509 | 0.527 | 0.541 | 0.555 | 0.561 | 0.569 | 0.575 | 0.581 |
| 3/4″ | N/A | 0.070 | 0.150 | 0.182 | 0.232 | 0.274 | 0.310 | 0.344 | 0.390 | 0.420 | 0.454 | 0.482 | 0.510 | 0.532 | 0.560 | 0.584 | 0.606 | 0.620 | 0.634 | 0.652 | 0.666 | 0.680 | 0.686 | 0.694 | 0.700 | 0.706 |
| 7/8″ | 0.115 | 0.195 | 0.275 | 0.307 | 0.357 | 0.399 | 0.435 | 0.469 | 0.515 | 0.545 | 0.579 | 0.607 | 0.635 | 0.657 | 0.685 | 0.709 | 0.731 | 0.745 | 0.759 | 0.777 | 0.791 | 0.805 | 0.811 | 0.819 | 0.825 | 0.831 |
| 1″ | 0.240 | 0.320 | 0.400 | 0.432 | 0.482 | 0.524 | 0.560 | 0.594 | 0.640 | 0.670 | 0.704 | 0.732 | 0.760 | 0.782 | 0.810 | 0.834 | 0.856 | 0.870 | 0.884 | 0.902 | 0.916 | 0.930 | 0.936 | 0.944 | 0.950 | 0.956 |
| 1 1/8″ | 0.365 | 0.445 | 0.525 | 0.557 | 0.607 | 0.649 | 0.685 | 0.719 | 0.765 | 0.795 | 0.829 | 0.857 | 0.885 | 0.907 | 0.935 | 0.959 | 0.981 | 0.995 | 1.009 | 1.027 | 1.041 | 1.055 | 1.061 | 1.069 | 1.075 | 1.081 |
| 1 1/4″ | 0.490 | 0.570 | 0.650 | 0.682 | 0.732 | 0.774 | 0.810 | 0.844 | 0.890 | 0.920 | 0.954 | 0.982 | 1.010 | 1.032 | 1.060 | 1.084 | 1.106 | 1.120 | 1.134 | 1.152 | 1.166 | 1.180 | 1.186 | 1.194 | 1.200 | 1.206 |
| 1 1/2″ | 0.740 | 0.820 | 0.900 | 0.932 | 0.982 | 1.024 | 1.060 | 1.094 | 1.140 | 1.170 | 1.204 | 1.232 | 1.260 | 1.282 | 1.310 | 1.334 | 1.356 | 1.370 | 1.384 | 1.402 | 1.416 | 1.430 | 1.436 | 1.444 | 1.450 | 1.456 |
| 1 3/4″ | 0.990 | 1.070 | 1.150 | 1.182 | 1.232 | 1.274 | 1.310 | 1.344 | 1.390 | 1.420 | 1.454 | 1.482 | 1.510 | 1.532 | 1.560 | 1.584 | 1.606 | 1.620 | 1.634 | 1.652 | 1.666 | 1.680 | 1.686 | 1.694 | 1.700 | 1.706 |
| 2″ | 1.240 | 1.320 | 1.400 | 1.432 | 1.482 | 1.524 | 1.560 | 1.594 | 1.640 | 1.670 | 1.704 | 1.732 | 1.760 | 1.782 | 1.810 | 1.834 | 1.856 | 1.870 | 1.884 | 1.902 | 1.916 | 1.930 | 1.936 | 1.944 | 1.950 | 1.956 |
| 2 1/4″ | 1.490 | 1.570 | 1.650 | 1.682 | 1.732 | 1.774 | 1.810 | 1.844 | 1.890 | 1.920 | 1.954 | 1.982 | 2.010 | 2.032 | 2.060 | 2.084 | 2.106 | 2.120 | 2.134 | 2.152 | 2.166 | 2.180 | 2.186 | 2.194 | 2.200 | 2.206 |
| 2 1/2″ | 1.740 | 1.820 | 1.900 | 1.932 | 1.982 | 2.024 | 2.060 | 2.094 | 2.140 | 2.170 | 2.204 | 2.232 | 2.260 | 2.282 | 2.310 | 2.334 | 2.356 | 2.370 | 2.384 | 2.402 | 2.416 | 2.430 | 2.436 | 2.444 | 2.450 | 2.456 |
| 2 3/4″ | 1.990 | 2.070 | 2.150 | 2.182 | 2.232 | 2.274 | 2.310 | 2.344 | 2.390 | 2.420 | 2.454 | 2.482 | 2.510 | 2.532 | 2.560 | 2.584 | 2.606 | 2.620 | 2.634 | 2.652 | 2.666 | 2.680 | 2.686 | 2.694 | 2.700 | 2.706 |
| 3″ | 2.240 | 2.320 | 2.400 | 2.432 | 2.482 | 2.524 | 2.560 | 2.594 | 2.640 | 2.670 | 2.704 | 2.732 | 2.760 | 2.782 | 2.810 | 2.834 | 2.856 | 2.870 | 2.884 | 2.902 | 2.916 | 2.930 | 2.936 | 2.944 | 2.950 | 2.956 |
| 3 1/4″ | 2.490 | 2.570 | 2.650 | 2.682 | 2.732 | 2.774 | 2.810 | 2.844 | 2.890 | 2.920 | 2.954 | 2.982 | 3.010 | 3.032 | 3.060 | 3.084 | 3.106 | 3.120 | 3.134 | 3.152 | 3.166 | 3.180 | 3.186 | 3.194 | 3.200 | 3.206 |
| 3 1/2″ | 2.740 | 2.820 | 2.900 | 2.932 | 2.982 | 3.024 | 3.060 | 3.094 | 3.140 | 3.170 | 3.204 | 3.232 | 3.260 | 3.282 | 3.310 | 3.334 | 3.356 | 3.370 | 3.384 | 3.402 | 3.416 | 3.430 | 3.436 | 3.444 | 3.450 | 3.456 |
| 3 3/4″ | 2.990 | 3.070 | 3.150 | 3.182 | 3.232 | 3.274 | 3.310 | 3.344 | 3.390 | 3.420 | 3.454 | 3.482 | 3.510 | 3.532 | 3.560 | 3.584 | 3.606 | 3.620 | 3.634 | 3.652 | 3.666 | 3.680 | 3.686 | 3.694 | 3.700 | 3.706 |
| 4″ | 3.240 | 3.320 | 3.400 | 3.432 | 3.482 | 3.524 | 3.560 | 3.594 | 3.640 | 3.670 | 3.704 | 3.732 | 3.760 | 3.782 | 3.810 | 3.834 | 3.856 | 3.870 | 3.884 | 3.902 | 3.916 | 3.930 | 3.936 | 3.944 | 3.950 | 3.956 |
| 4 1/4″ | 3.490 | 3.570 | 3.650 | 3.682 | 3.732 | 3.774 | 3.810 | 3.844 | 3.890 | 3.920 | 3.954 | 3.982 | 4.010 | 4.032 | 4.060 | 4.084 | 4.106 | 4.120 | 4.134 | 4.152 | 4.166 | 4.180 | 4.186 | 4.194 | 4.200 | 4.206 |
| 4 1/2″ | 3.740 | 3.820 | 3.900 | 3.932 | 3.982 | 4.024 | 4.060 | 4.094 | 4.140 | 4.170 | 4.204 | 4.232 | 4.260 | 4.282 | 4.310 | 4.334 | 4.356 | 4.370 | 4.384 | 4.402 | 4.416 | 4.430 | 4.436 | 4.444 | 4.450 | 4.456 |
| 4 3/4″ | 3.990 | 4.070 | 4.150 | 4.182 | 4.232 | 4.274 | 4.310 | 4.344 | 4.390 | 4.420 | 4.454 | 4.482 | 4.510 | 4.532 | 4.560 | 4.584 | 4.606 | 4.620 | 4.634 | 4.652 | 4.666 | 4.680 | 4.686 | 4.694 | 4.700 | 4.706 |
| 5″ | 4.240 | 4.320 | 4.400 | 4.432 | 4.482 | 4.524 | 4.560 | 4.594 | 4.640 | 4.670 | 4.704 | 4.732 | 4.760 | 4.782 | 4.810 | 4.834 | 4.856 | 4.870 | 4.884 | 4.902 | 4.916 | 4.930 | 4.936 | 4.944 | 4.950 | 4.956 |
| 5 1/4″ | 4.490 | 4.570 | 4.650 | 4.682 | 4.732 | 4.774 | 4.810 | 4.844 | 4.890 | 4.920 | 4.954 | 4.982 | 5.010 | 5.032 | 5.060 | 5.084 | 5.106 | 5.120 | 5.134 | 5.152 | 5.166 | 5.180 | 5.186 | 5.194 | 5.200 | 5.206 |
Super Duplex Steel Tubing Size
| Element | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S31803 / S32205 | 7.805 | 0.285 | 1420 – 1465 | 2588 – 2669 |
Super Duplex Steel Tubing Size
| Wall Thickness | Monel Tube Sizes ( O.D.) |
|---|---|
| .010 | 1/16″ , 1/8″ , 3/16″ |
| .020 | 1/16″ , 1/8″ , 3/16″ , 1/4″ , 5/16″ , 3/8″ |
| .012 | 1/8″ |
| .016 | 1/8″ , 3/16″ |
| .028 | 1/8″ , 3/16″ , 1/4″ , 5/16″ , 3/8″ , 1/2″ , 3/4″ , 1″ , 1 1/2″ , 2″ |
| .035 | 1/8″ , 3/16″ , 1/4″ , 5/16″ , 3/8″ , 7/16″ , 1/2″ , 16″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 2″ , 2 1/4″ |
| .049 | 3/16″ , 1/4″ , 5/16″ , 3/8″ , 1/2″ , 16″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/8″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 2″ , 2 1/4″ |
| .065 | 1/4″ , 5/16″ , 3/8″ , 1/2″ , 16″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 1 3/4″ , 2″ , 2 1/2″ , 3″ |
| .083 | 1/4″ , 3/8″ , 1/2″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 1 7/8″ , 2″ , 2 1/2″ ,3″ |
| .095 | 1/2″ , 5/8″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ |
| .109 | 1/2″ , 3/4″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ |
| .120 | 1/2″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ , 2 1/4″ , 2 1/2″ , 3″ |
| .125 | 3/4″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ , 3″ , 3 1/4″ |
| .134 | 1″ |
| .250 | 3″ |
| .375 | 3 1/2″ |
Super Duplex Steel Tubes Pressure Rating
| Tube O.D. (in.) | Wall Thickness of Tube (inches) | |||||||
| .028 | .035 | .049 | .065 | .083 | .095 | .109 | .120 | |
| Working Pressure (psig) | ||||||||
| 1/8 | 7900 | 10100 | ||||||
| 1/4 | 3700 | 4800 | 7000 | 9500 | ||||
| 5/16 | 3700 | 5400 | 7300 | |||||
| 3/8 | 3100 | 4400 | 6100 | |||||
| 1/2 | 2300 | 3200 | 4400 | |||||
| 3/4 | 2200 | 3000 | 4000 | 4600 | ||||
| 1 | 2200 | 2900 | 3400 | 3900 | 4300 | |||
Super Duplex Steel S32750 Pipes and Tubes
Super Duplex S32750 alloy has phenomenal strength and corrosion resistance and is therefore in high demand in seawater equipment, and petrochemical and chemical processes. Super Duplex S32750 Pipe, Tubes can handle temperatures up to 150 degrees without experiencing cracking or corrosion.
A few key features of Super Duplex S32750 Pipes and Tubes are:
- These Pipes have Low thermal expansion
- Higher heat conductivity than austenitic steels
- Good weldability
- High energy absorption
- Low coefficient of thermal expansion
- They have superb resistance to chloride stress-corrosion cracking
Specification For SDSS S32750 Pipes / Tubes
| Specification | ASTM A790, A789 / ASME SA789, SA789 |
|---|---|
| Seamless Pipes & Tubes Size | 1 / 8″ NB – 24″ NB |
| ERW Pipes & Tubes Size | 1 / 8″ NB – 36″ NB |
| EFW Pipes & Tubes Size | 6″ NB – 100″ NB |
| Standard | ASTM, ASME and API |
| Length | Single Random, Double Random & Required Length |
| Outer Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB |
| Thickness | 0.3mm – 50 mm |
| Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Types | Seamless / ERW / EFW / Welded / Fabricated / LSAW Pipes |
| Form | Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes |
| End | Plain End, Beveled End, Treaded |
Equivalent Grades Of Super Duplex Steel S32750 Pipes / Tubes
| STANDARD | UNS | WERKSTOFF NR. |
| Duplex 2507 | S32750 | 1.4410 |
Super Duplex Steel S32750 Pipes / Tubes Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32750 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 21.0 – 23.0 | 2.50 - 3.50 | 4.50 – 6.50 | 0.8 – 0.20 | 63.54 min |
S32750 Super Duplex Steel Pipes / Tubes Mechanical Properties
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| S32750 | 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 116000 , MPa – 800 | Psi – 80000 , MPa – 550 | 15 % |
Super Duplex Steel S32750 Pipes Supply Range
| Product Description | Wall Thickness, WT (in milimeter) | Outside Diamter, OD (in milimeter) | |
| Super Duplex Steel S32750 Seamless Round Pipe/Tube | 0.05 to 30 | 6 to 630 | |
| Super Duplex Steel S32750 Seamless Square Pipe/Tube | 0.05 to 30 | 12.7 * 12.7 to 300 * 300 | |
| Super Duplex Steel S32750 Seamless Rectangular Pipe/Tube | 0.05 to 30 | 10*20 to 100*200 | |
| Super Duplex Steel S32750 Seamless Colour Coated Pipe/Tube | 0.05 to 30 | 6 to 630 | |
| Super Duplex Steel S32750 Seamless Ornamental Tubes | 0.05 to 2.0 | 12.7 to 76.2 | |
| Super Duplex Steel S32750 Seamless Electropolished Pipes/Tubes | 0.05 to 30 | 12.7 to 250 | |
| Super Duplex Steel S32750 Seamless Slot Round Pipe/Tube | 0.05 to 2.0 | 12.7 to 76.2 | |
Super Duplex Steel S32750 Tubes Pressure Rating
| Tube O.D. (in.) | Wall Thickness of Tube (inches) | |||||||
| .028 | .035 | .049 | .065 | .083 | .095 | .109 | .120 | |
| Working Pressure (psig) | ||||||||
| 1/8 | 7900 | 10100 | ||||||
| 1/4 | 3700 | 4800 | 7000 | 9500 | ||||
| 5/16 | 3700 | 5400 | 7300 | |||||
| 3/8 | 3100 | 4400 | 6100 | |||||
| 1/2 | 2300 | 3200 | 4400 | |||||
| 3/4 | 2200 | 3000 | 4000 | 4600 | ||||
| 1 | 2200 | 2900 | 3400 | 3900 | 4300 | |||
Super Duplex Steel S32760 Pipes and Tubes
Super Duplex Steel S32760 Pipes and Tubes withstand corrosion in a wide range of media, with exceptional resistance to pitting and crevice corrosion in saltwater and other chloride-containing environments. Toughness, high strength, and corrosion resistance in a wide range of organic and inorganic acids are among the properties of Super Duplex Steel Tubes. It contains 25% chromium(Cr), 4% molybdenum(Mo), and 7% nickel(N). It includes around 40-50 percent of different iron oxides when annealed. This is a alloyed super duplex SS that has excellent pitting resistance that is suitable for usage in harsh situations. This super duplex grade microstructure is ferritic and austenitic. It is resistant to stress cracking induced due to chloride, which occurs in normal grades of stainless steel. In sour gas fields, it is also particularly resistant to sulfide-induced stress corrosion cracking.
Specification For SDSS S32760 Pipes / Tubes
| Specification | ASTM A790, A789 / ASME SA789, SA789 |
|---|---|
| Seamless Pipes & Tubes Size | 1 / 8″ NB – 24″ NB |
| ERW Pipes & Tubes Size | 1 / 8″ NB – 36″ NB |
| EFW Pipes & Tubes Size | 6″ NB – 100″ NB |
| Standard | ASTM, ASME and API |
| Length | Single Random, Double Random & Required Length |
| Outer Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB |
| Thickness | 0.3mm – 50 mm |
| Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Types | Seamless / ERW / EFW / Welded / Fabricated / LSAW Pipes |
| Form | Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes |
| End | Plain End, Beveled End, Treaded |
Equivalent Grades Of Super Duplex Steel S32760 Pipes / Tubes
| STANDARD | UNS | WERKSTOFF NR. |
| Super Duplex Steel | S32760 | 1.4410 |
Super Duplex Steel S32760 Pipes / Tubes Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32760 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 22.0 – 23.0 | 3.0 – 3.5 | 4.50 – 6.50 | 0.14 – 0.20 | 63.72 min |
S32760 Super Duplex Steel Pipes / Tubes Mechanical Properties
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| S32760 | 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 116000 , MPa – 800 | Psi – 80000 , MPa – 550 | 15 % |
Super Duplex Steel S32760 Tubes Pressure Rating
| Tube O.D. (in.) | Wall Thickness of Tube (inches) | |||||||
| .028 | .035 | .049 | .065 | .083 | .095 | .109 | .120 | |
| Working Pressure (psig) | ||||||||
| 1/8 | 7900 | 10100 | ||||||
| 1/4 | 3700 | 4800 | 7000 | 9500 | ||||
| 5/16 | 3700 | 5400 | 7300 | |||||
| 3/8 | 3100 | 4400 | 6100 | |||||
| 1/2 | 2300 | 3200 | 4400 | |||||
| 3/4 | 2200 | 3000 | 4000 | 4600 | ||||
| 1 | 2200 | 2900 | 3400 | 3900 | 4300 | |||
