Stainless Steel Angle & channel

Home > Products > Stainless Steel Angle & channel

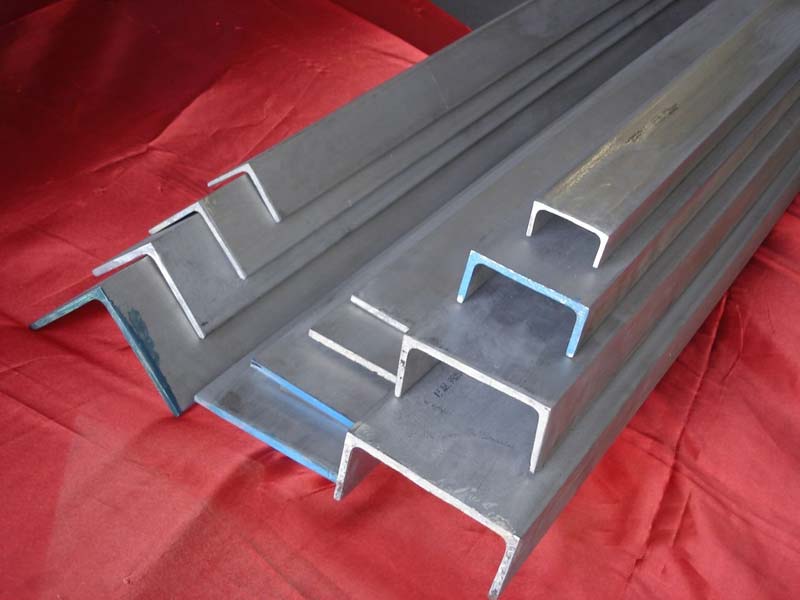

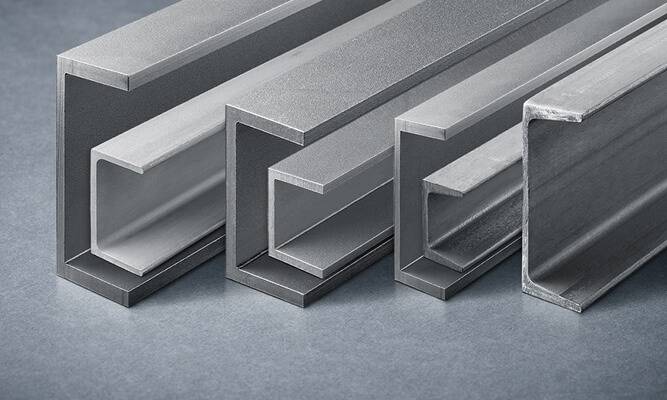

Stainless Steel Angle & channel

Our high-grade Stainless Steel Angles/ Channels provide the extra benefits and features to the customers. These Stainless Steel Angles/ Channels also can join the metals together quickly and form efficient shapes. Our Stainless Steel Angles/ Channels also has the corrosion resistance property for the specified application. These Angles/ Channels had a high amount of Molybdenum and Nickel.

Our products are used widely for fabrication purposes. Our products are readily available in all standards, shapes and sizes. We are providing products at a very cheap price to our esteem customers and also offer with excellent quality. We manufacture these Angle/ Chneels by using the best quality of raw material

Stainless Steel Angle / Channel Specification

Specifications ASTM A276, ASTM A479 / ASME SA276, ASME SA479
Angle Size Range 20 x 20 mm to 100 x 100 mm
Angles Thickness 3 to 12 mm (depending on size)
Channel Size Range Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 3 mm to 12mm
Length : 1000 mm to 6000 mm

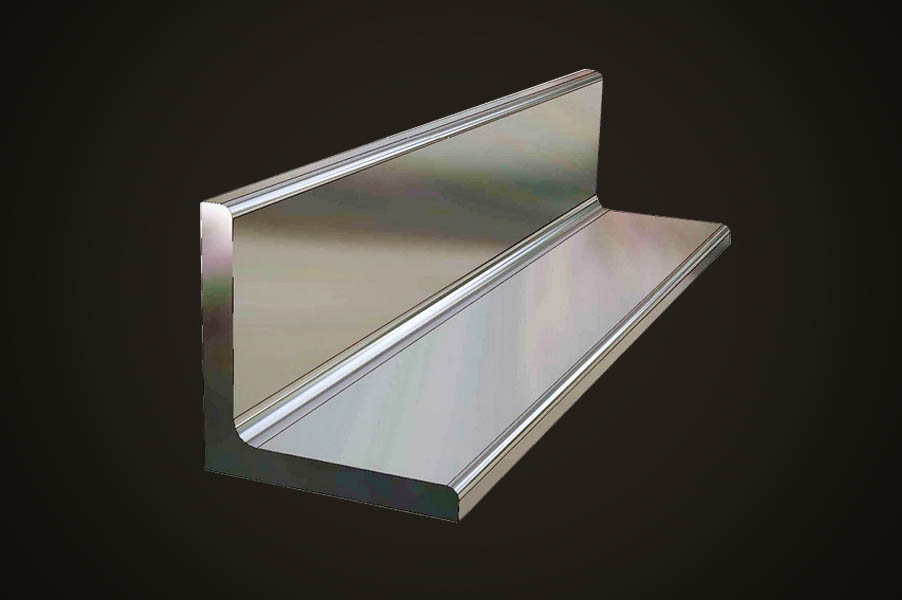

Stainless Steel 304 Angle

Our Stainless Steel S30400 Angle/ Channels has the essential features such as sturdiness, excellent design, good quality, longer life etc. and our products can be used for many applications from heavy engineering to residential usage. Stainless Steel 304 Angle/ Channel also has the heat resistant, titanium stabilized, an austenitic alloy that is commonly used for service in the higher temperature.Our extensive range of Stainless Steel 1.4301 Angle/ Channel are offering the high corrosion resistance, high strength, temperature resistance and the smooth surface which is very easy to clean and can be commonly used for various applications such as bracing, structural supports, brackets, architectural trim, and other parts requiring grinding, machining, welding, and polishing.

Stainless Steel 304 Angle / Channel Specification

Specifications ASTM A276, ASTM A479
Angle Size Range 20 x 20 mm to 100 x 100 mm
Angles Thickness 3 to 12 mm (depending on size)
Channel Size Range Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes

SS 304 Angle / Channel Equivalent Grades

Grade UNS DIN JIS EN GOST AFNOR
SS 304 S30400 1.4301 SUS 304 X5CrNi18-10 08Х18Н10 Z7CN18‐09

SS 304 Angle / Channel Chemical Composition

Grade C Mn Si P S Cr Ni
SS 304 0.08 max 2.0 max 0.75 max 0.045 max 0.03 max 18 – 20 8 – 11

SS 304 Angle / Channel Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

Stainless Steel 309 Angle / Channel Specification

Stainless Steel 309 Angle/ Channels are austenitic Chromium-Nickel steel. Our products are used for higher temperature applications. Our Stainless Steel 309 Angle/ Channels also have high corrosion resistance due to their high chromium and nickel content. It also has excellent heat resistance while providing good strength at room and elevated temperatures.

Applications Industries of Stainless Steel 304 Angles
  1. Architecture
    2. Architectural projects commonly utilize SS 304 Angles for their structural stability and low maintenance needs. These angles can frame windows, doors, and other elements of a building’s exterior or interior design.
  2. Engineering
    3. Due to their durability and strength, SS 304 Angles are a top choice for engineering projects. SS 304 Angles frequently serve as machine components, including conveyors or industrial machinery. Due to their ability to endure high temperatures and intense workloads without corroding or breaking down.

Stainless Steel 309 Angle / Channel Specification

Specifications ASTM A276, ASTM A479 / ASME SA276, ASME SA479
Angle Size Range 20 x 20 mm to 100 x 100 mm
Angles Thickness 3 to 12 mm (depending on size)
Channel Size Range Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
SS 309 Angle / Channel Equivalent Grades
Grade UNS No Old British Euronorm Swedish SS Japanese JIS
BS En No Name
309 S30900 - - 1.4828 - - -

SS 309 Angle / Channel Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
309 min. – – – – – 18.0 – 8.0 –
max. 0.10 max 2.0 max 0.75 max 0.045 max 0.03 max 20.0 10.5 –

SS 309 Angle / Channel Mechanical Properties

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
309 Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 % 92 201
Application of 309 Stainless Steel
  1. Furnace Components
    2. Such as firebox sheets and furnace linings, where the material is subjected to continuous high heat.
  2. Heat Exchangers
    3. The material’s resistance to corrosion and oxidation makes it a prime choice for heat exchangers.
  3. Boiler Baffles
    4. Used in industrial boilers where high strength and heat resistance are required.
  4. Oven Linings and Components
    5. For commercial and industrial ovens, 309 stainless steel ensures durability under high temperatures.
  5. Kiln Linings
    6. Used in ceramic, glass, and other kilns that operate at high temperatures.

Stainless Steel 316 Angle / Channel

Our Stainless Steel 316 Angle/ Channels are mainly the roll-formed metal which are used in the industries like construction, transportation, appliances and many much more. The primary function of our Stainless Steel 316 Angle/ Channels is to provide support to the structures. Our high-grade Angle/ Channel has numerous excellent features and benefits such as sturdy structure, natural lubrication and free from the rust.

Stainless Steel 316 Angle / Channel Specification

Specifications ASTM A276, ASTM A479 / ASME SA276, ASME SA479
Angle Size Range 20 x 20 mm to 100 x 100 mm
Angles Thickness 3 to 12 mm (depending on size)
Channel Size Range Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
SS 316 Angle / Channel Chemical Composition
Grade C Mn Si P S Cr Mo Ni Fe
SS 316 0.08 max 2.0 max 1.0 max 0.045 max 0.030 max 16.00 - 18.00 2.00 - 3.00 11.00 - 14.00 67.845 min
SS 316 Angle / Channel Mechanical Properties
Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %
Applications
  1. Stainless steel 316 angle has a broad range of applications in multiple industries due to its versatility.
  2. the marine industry, where it is used to make boats and ships, to the construction industry, for making components like railings, frameworks, gates, and ladders – stainless steel angle is extremely useful.
  3. In the medical sector, fully annealed stainless steel angles are preferred for aesthetic appeal as they are highly polished and non-corrosive.
Stainless Steel 316Ti Angle / Channel

We, select the excellent quality of raw materials. We manufacture our products as per the need and demands of our customers in different shapes and sizes. Our Stainless Steel 316Ti Angle/ Channels are one of the most versatile and commonly used grades of Stainless Steel. Our product has the Chromium-Nickel austenitic alloy containing the minimum Chromium and Nickel with a maximum Carbon. Our Stainless Steel 316Ti cannot be hardened by heat treatments, but cold working can produce higher tensile strengths.

Stainless Steel 316Ti Angle / Channel Specification
Specifications ASTM A276, ASTM A479 / ASME SA276, ASME SA479
Angle Size Range 20 x 20 mm to 100 x 100 mm
Angles Thickness 3 to 12 mm (depending on size)
Channel Size Range Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 mm to 6mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
SS 316Ti Angle / Channel Chemical Composition
Grade C Mn Si P S Cr Mo Ni Fe
SS 316Ti 0.08 max 2.0 max 0.75 max 0.045 max 0.030 max 16.00 - 18.00 2.00 - 3.00 10.00 - 14.00 68.395 min
SS 316Ti Angle / Channel Mechanical Properties
Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1399 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %
SS 316Ti Angle / Channel Equivalent Grades
STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 316Ti 1.4571 S31635 SUS 316Ti 320S31 08Ch17N13M2T Z6CNDT17‐123 X6CrNiMoTi17-12-2
Dimensions of 316 Stainless Steel Equal Angle
Sizes (all Dimensions in milimeter) Approx Weight SS Angle Bar (kilogram/meter) SS 304 Angle Bar Sizes (all Dimensions in milimeter) Approx Weight SS 316 Angle Bar (kilogram/meter)
25 x 25 x 3 1.13 63 x 63 x 8 7.50
25 x 25 x 4 1.46 65 x 65 x 4 4.00
25 x 25 x 5 1.78 65 x 65x 5 5.02
30 x 30 x 3 1.37 65 x 65 x 8 7.75
30 x 30 x 4 1.78 70 x 70 x 5 5.35
30 x 30 x 5 2.20 70 x 70 x 6 6.40
40 x 40 x 3 1.83 75 x 75 x 6 6.85
40 x 40 x 4 2.41 75 x 75 x 8 9.05
40 x 40 x 5 2.97 80 x 80 x 6 7.35
50 x 50 x 4 3.05 80 x 80 x 8 9.65
50 x 50 x 5 3.78 80 x 80 x 10 11.98
63 x 63 x 4 3.90 100 x 100 x 8 12.20
63 x 63 x 5 3.90 100 x 100 x 12 18.00
SS 316Ti Angle, Channel Application
  • Off-Shore Oil Drilling Companies
  • Power Generation
  • Petrochemicals
  • Gas Processing
  • Specialty Chemicals
  • Pharmaceuticals
  • Pharmaceutical Equipment
  • Chemical Equipment
  • Sea Water Equipment
  • Heat Exchangers
  • Condensers
  • Pulp and Paper Industry
Stainless Steel 317L Angle/ Channel

We, produces our products in various shapes and sizes. We also provide our products according to the need and demands of our clients. Our Stainless Steel 317L Angle/ Channel is the molybdenum-bearing Austenitic Stainless Steel similar to 316, but it has the higher molybdenum alloy content. It is also comprising of chromium and nickel. Stainless Steel 317L Angle/ Channel can be mold into the various dimensions, angles, lengths, forms, thicknesses, specifications, and flats. The chemical composition, physical properties, and mechanical properties make our product appropriate for a certain kind of applications. Our Stainless Steel 317L Angles/ Channels has excellent corrosion resistance, and it is mainly used in high acidic chloride media, such as in the encountered in pulp and paper mills.

Stainless Steel 317L Angle / Channel Specification
Specifications ASTM A276, ASTM A479 / ASME SA276, ASME SA479
Angle Size Range 20 x 20 mm to 100 x 100 mm
Angles Thickness 3 to 12 mm (depending on size)
Channel Size Range Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 mm to 6mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
Types of Stainless Steel 317L Angle / Channel

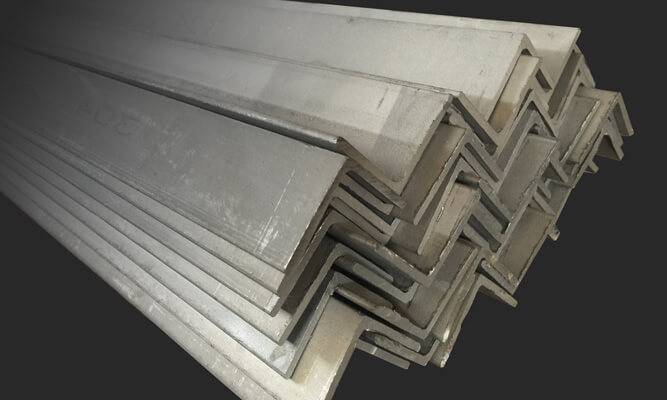

Angle

Stainless Steel 317L Angle
317L Stainless Steel Angles
UNS S31703 Angle
1.4438 Angles
SUS 317L Angles
ASTM A276 Stainless Steel 317L Angle
ASME SA 276 Stainless Steel 317L Angles

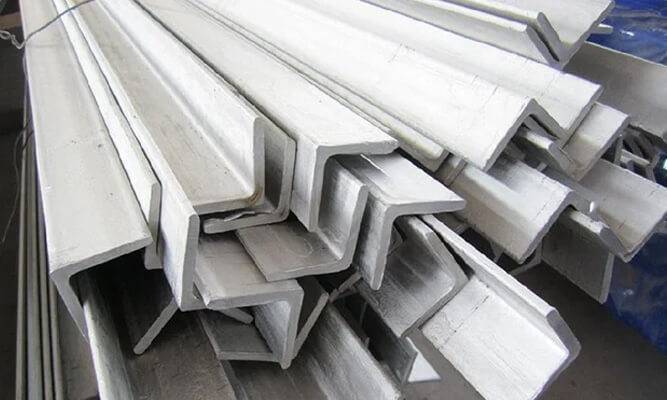

Equal Angle

Stainless Steel 317L Equal Angle
317L Stainless Steel Equal Angle
UNS S31703 Equal Angles
1.4438 Equal Angles
SUS 317L Equal Angle
ASTM A276 Stainless Steel 317L Equal Angle
ASME SA 276 Stainless Steel 317L Equal Angles

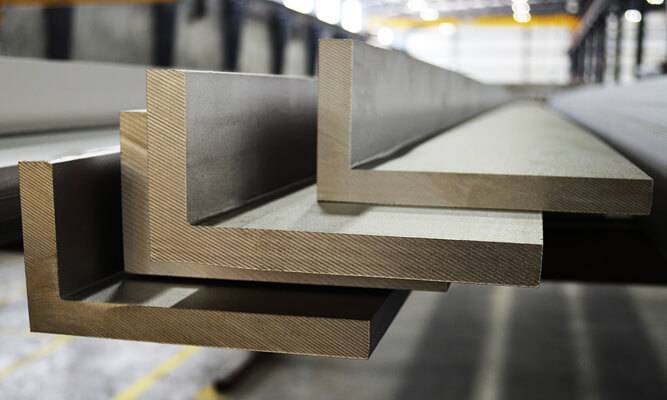

Unequal Angle

Stainless Steel 317L Unequal Angle
317L Stainless Steel Unequal Angle
UNS S31703 Unequal Angles
1.4438 Unequal Angles
SUS 317L Unequal Angle
ASTM A276 Stainless Steel 317L Unequal Angle
ASME SA 276 Stainless Steel 317L Unequal Angle

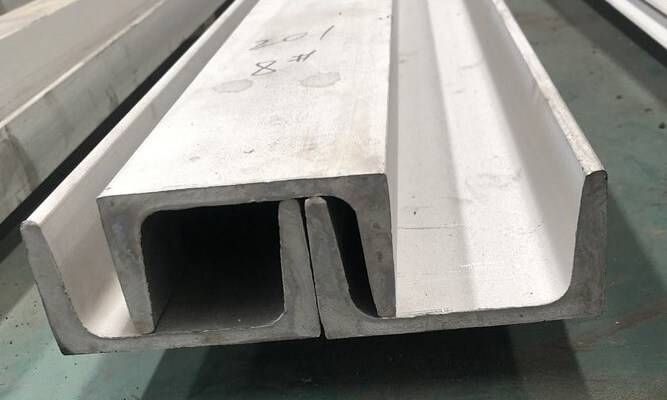

Channel

Stainless Steel 317L Channel
317L Stainless Steel Channels
UNS S31703 Channels
1.4438 Channel
SUS 317L Channels
ASTM A276 Stainless Steel 317L Channel
ASME SA 276 Stainless Steel 317L Channel

C Channel

Stainless Steel 317L C Channel
317L Stainless Steel C Channel
UNS S31703 C Channels
1.4438 C Channels
SUS 317L C Channel
ASTM A276 SS 317L C Channels
ASME SA 276 Stainless Steel 317L C Channel

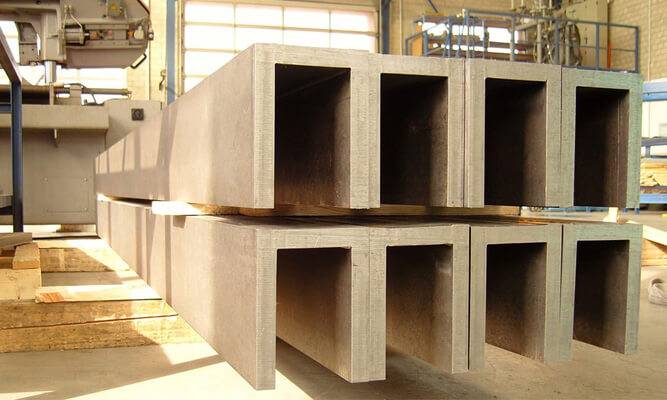

U Channel

Stainless Steel 317L U Channel
317L Stainless Steel U Channels
UNS S31703 U Channel
1.4438 U Channels
SUS 317L U Channels
ASTM A276 SS 317L U Channels
ASME SA 276 Stainless Steel 317L U Channel
